Panel Light Smt Pick And Place Equipment 1200*350 MM Max PCB 40000 Chi Per Hour

panel light smt machine

The purpose of the placement machine is to accurately place the chip components in the corresponding positions, and then bond them with the previously applied red glue and solder paste, and then pass the reflow soldering furnace to fix the chip components on the PCB. It is. The placement machine is a device that enables high-speed, high-precision placement of components, and is the most critical and complex device for the entire SMT production line.

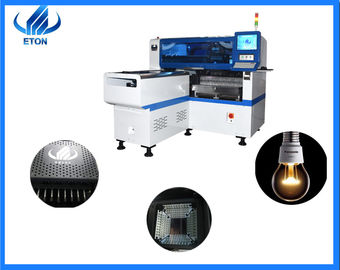

HT-E8S is the multifunctional placement machine for produce panel light, led tube, bulb, flexible strip, led modules, power driver,etc. It is very good performance.

Frame:

The frame is the base of the machine, and all the transmission, positioning organization and feeder are firmly fixed on it, so it is necessary to have the mechanical strength and rigidity. The current placement machine has various forms of racks, including all cast and steel plate welded. The first kind of strong, strong rigidity, small deformation, stable operation, usually applied to advanced machines; the second has the characteristics of simple processing and low cost. The frame in which the machine is selected in detail depends on the overall depiction and load-bearing of the machine, and should be smooth, easy, and vibration-free during the operation.

Our machine is very stable, the breakdown rate is less than 0.001.

Technical parameter:

HT-E8S features:

Monthly inspection:

This section should be carried out according to the type of nozzle and the changing station. Part Name Process Note The LED light of the moving lens checks whether the brightness of each LED is sufficient. If it is not bright, replace the entire LED part. The nozzle shaft checks the O-ring for each nozzle shaft and finds that the aging should be replaced in time. Wipe the dust and residue on the X-axis screw. Apply a thin layer of grease to the X-axis guide to remove dust and residue. Apply a thin layer of grease to the Y-axis screw to remove dust and residue. Apply by hand. The thin-layer grease Y-axis guide wipes off dust and residue, and is coated with a thin layer of grease Z-axis rack and gear to check its movement. If necessary, apply a thin layer of lubricant to the rack drive part by hand. The R-axis drive belt is checked for wear and tightness, and if necessary, the belt is changed or the tightness is adjusted. Wipe the dust and residue with the W-axis screw and apply a thin layer of grease to the supply valve to check if the solenoid valve is working properly. The belt is checked for wear and tightness, and if necessary, the belt is changed or its tightness is high.
