Smt assembly machine
The biggest feature of SMT placement technology is the realization of automation, which can effectively improve production efficiency and save materials. , energy, human, time, etc., effectively reduce costs by 30%-50%. The rise of SMT placement technology has made electronic assembly easier, and as a result many electronic products are being upgraded, with increased integration and lower prices.

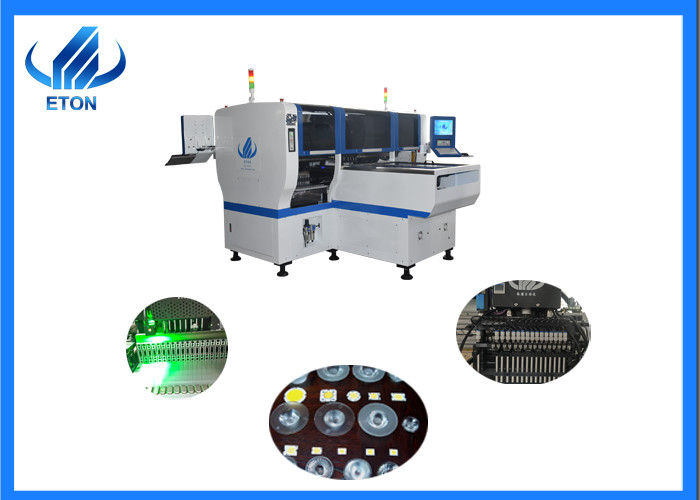

SMT assembly machine HT-E8D is suitable for automatic production line.
Parameter:
| HT-E8D-1200 Double module Technical Parameter |
| PCB |
| PCB Length Width |
Max:1200*300mm Min:100*100mm |
| PCB Thickness |
0.5-5mm |
| PCB Clamping |
Adjustable pressure pneumatic |
| Mounting Mode |
Group Picking and separate placing/Separate picking and separate placing |
| Vision System |
| No. of camera |
4 Sets of imported camera
Vision alignment, MARK correction
|
| Mounting precision |
±0.02mm |
| Mounting Height |
〈36mm |
| Mounting Speed |
80000CPH |
| Power |
380AC 50Hz |
| Power Consumption |
8KW |
| Conveyor Transmission |
Max Length:1200mm |
| Transmission Speed |
＞500mm/sec |
| Air pressure |
＞5.0Kg/ CM² |
| Electrical control |
Independent research and development by ETON |
| X.Y.Z Axis Driving |
High-end magnetic linear motor + servo motor |
Features:
There are fine features of HT-E8D:
- Dual system, dual module multi-functional mounter.
- Mounting components: led/capacitors/resistors/IC/shaped components/etc.
- Component min size 0402, max height 36mm.
- Application: Power driver/electric board/lens/linear bulb/household appliance etc.
- Auto-optimization after coordinates generated
Led lamp beads application:
LED lamp beads are widely used in lighting production, LED large screen display, traffic lights, decoration, computers, electronic toy gifts, switches, telephones, advertising, urban glory engineering and many other production areas.
HT-E8D not only suitable for led but also can mounting resistor, capacitors, shaped components, etc.And it is apply to led tube, bulb, panel ,flexible strip, lens, power driver,and so on.
Suitable for electric board:
Various computer motherboards or power motherboards All kinds of electronic product integration boards can use the automatic visual placement machine to carry out the placement of various electronic product components. The automatic visual placement machine has multiple placement heads that can be simultaneously performed. A variety of different component placements, and the use of automatic placement machines for a variety of complex electronic components used in a variety of circuit boards, can achieve high quality and save a lot of operating time.
