Multifunctional assembly machine

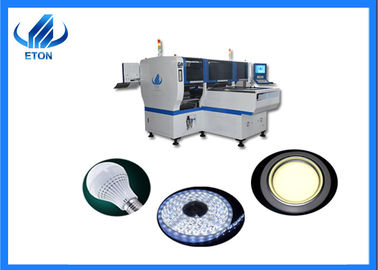

Here are our multifunctional pick and place machine HT-E8D:
It is apply to smt production line, suitable for mounting led , capacitors, resistors, shaped components, IC, and so on.
As we know that SMT placement technology ensures low solder joint defect rates for electronic products or components. High frequency characteristics. Therefore, electronic components or electronic products using SMT chip technology have high vibration resistance. High reliability and reduced electromagnetic and radio frequency interference.
High mounting precision :
There are two types of placement machine accuracy definitions: placement accuracy and repeatability.
Positioning accuracy is called absolute precision in some industry personnel. In terms of the intention, the placement machine precision refers to the mechanical precision and Z-axis rotation accuracy of the X and Y-axis navigation movement of the placement machine. It can be characterized by positioning accuracy (absolute precision), repeatability, and resolution.
For HT-E8D, there are vision for the identification and mark correction, which is base on 4 sets of imported camera, that the mounting precision is reach 0.02 mm. Also the magnetic linear motor and servo motor for axis is further guarantee the accuracy of the patch.
Parameter:
Vision System | |
No. of camera |
4 Sets of imported camera Vision alignment, MARK correction |
Mounting precision | ±0.02mm |
Mounting Height | 〈36mm |
Mounting Speed | 80000CPH |
Power | 380AC 50Hz |
Power Consumption | 8KW |
Conveyor Transmission | Max Length:1200mm |
PCB | |
PCB Length Width | Max:1200*300mm Min:100*100mm |
PCB Thickness | 0.5-5mm |
PCB Clamping | Adjustable pressure pneumatic |
Mounting Mode | Group Picking and separate placing/Separate picking and separate placing |
Automatic:
Mounter: Also known as "mounting machine" or "Surface Mount System", in the production line, it is placed behind the dispenser or screen printer, and the surface is mounted by moving the placement head. The component accurately places a device on the PCB pad. Divided into manual and fully automatic.
By Automation, pick and place machine can be classified as fellow:
1.Automatic mechatronic placement machine
Features: Most of the placement machines are this type.
2.Manual placement machine
Features: The manual patch head is mounted on the Y-axis head. The X, Y, and E positioning can be corrected by the movement and rotation of the human hand. Mainly used for new product development, with the advantage of low cost.
Our machine HT-E8D is automatic mounter machine, it is very suitable for automatic smt production line.
