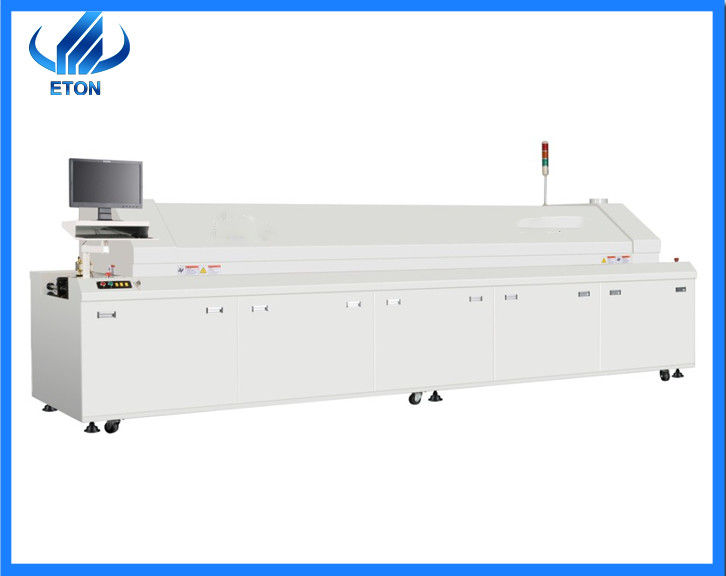

Top lead free reflow oven with ten heating zones
General:
| Dimension(L*W*H) | 5400*1320*1490mm |
| Weight | 2300kg |
| Color | Computer gray |
Heating System:
| Number of heating zones | Up 10/ bottom 10 |
| Number of cooling zones | 2 |
| Length of heating zones | 3700mm |
| Heating mode | Hot air |
| Cooling Mode | Forced air cooling |
| Exhaust Volume | 10m³/min * 2 exhausts |
Control system:
| Power supply | 5 line 3 phase 380V 50/60HZ |
| Total power | 58KW |
| Starting power | 50KW |
| Normal power consumption | 10KW |
| Warming time | 20 mins |
| Temp. setting range | From room temp. To 300℃ |
| Temp. control method | PID close loop control & SSR driving |
| Temp. control precision | ±1℃ |
| Temp. deviation on PCB | ±2℃ |
| Data storage | Process Data and status storage(80GB) |
| Nozzle plate | Aluminum Alloy Plate |
| Abnormal Alarm | Abnormal temperature (extra-high/extra-low temperature) |
| Board dropped alarm |
Tower light: Yellow-warming, Green-normal, Red-abnormal |
Conveyor System:
| Max. Width of PCB | 400mm |
| Mesh belt width | 450mm |
| Transmission Direction | L→R(option: R→L) |
| Transmission Net Height | 900±20mm |
| Transmission type | Mesh and chain |
| Range of rail width | 50-400mm |
| Conveyor speed | 0-2000mm/min |
| Auto/manual Lubrication | Standard |
| Fixed rail side | Front rail fixed(option: rear rail fixed) |
| Components high | Top and bottom 25mm |
Details:
1. The brand computer and Siemens PLC intelligent control system, high precision temperature control is ± 1-2 ℃ (if the computer crash accident, it can realize off-line work, do not affect
2. Windows XP operating interface with powerful and simple operation.
3.In order to ensure safety and reliability, the cylinder body can be lift up automatically.
4. Device is equipped with mesh belt, transport smoothly, no shaking and no deformation, which ensure smooth PCB transport. Synchronous guide transmission mechanism and automatic SMT machine online connection ensure that guide adjustable wide precision and high service life.
5. Automatic control lubrication system and automatic lubrication transmission chain.
