220V 50HZ SMT Mounting Machine 330mm Pcb Send Board Equipment With Magazine

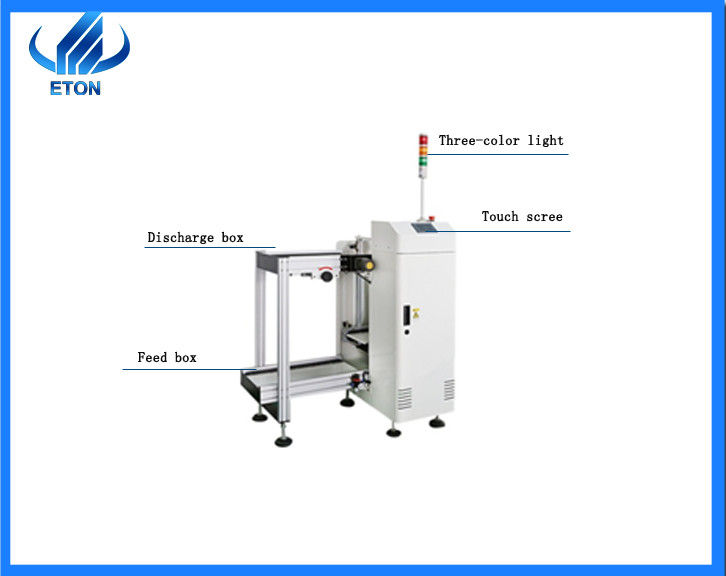

Large Image : 220V 50HZ SMT Mounting Machine 330mm Pcb Send Board Equipment With Magazine

Product Details:

Place of Origin:	CHINA
Brand Name:	ETON
Certification:	CCC
Model Number:	ET-L330
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Wooden case
Delivery Time:	4 weeks after payment
Payment Terms:	T/T, Western Union
Supply Ability:	50 sets per month

Contact Now

Detailed Product Description

Application:	SMT Production Line	Dimension:	L1400W860H1200±30mm
Structure:	Pneumatic Clamp Structure	Transmission Height:	H=920±30
Power Supply:	220V 50HZ	Name:	Smt Send Board Machine
Highlight:	smt pick and place machine , smt pick and place equipment

ET-L330 send board machine

ET-L330 is the send board machine which suitable for maximum size of pcb is L450*W330 mm, and the magazine specifications is L460*W400*H565 mm.

Parameter:

Item	ET-L330 send board machine
Dimension	L1400W860H1200±30mm
Frame	Special aluminum profile guide rail and special thousand bird type plastic chain
Transmission motor	Taiwan 15W fixed speed motor
Structure	Pneumatic clamp structure
Direction	Right to left / left to right
Lift platform pitch selection	10,20,30,40
Transmission height	H=920±30
Controller	Mitsubishi PLC programmable controller
Function	Automatically send board
Operation control panel	Display control true color touch screen
Pneumatic Components	Push plate cylinder position, adjusted by screw
power supply	220V 50HZ
No. of Full load storage board	50 PCS
Gas source	0.4-0.6MPa
Electric control box	1 set

Lift:

The lift is 90W Taiwan brake motor drive uses ball screw to make Magazine stepping up and down.

Transmission motor:

The transmission motor is Taiwan 15W fixed speed motor, very good performance.

Attention:

1. In operation, if you want to organize the peripherals of the board machine, please ensure safety.

2. In operation, no part of the body should enter the device.

3. In the event of an abnormality, please stop immediately and dispose of or contact the company according to the abnormal treatment method.
