Product Details:
Payment & Shipping Terms:
|
| Application: | SMT Production Line | Max Pcb: | 390 Mm |
|---|---|---|---|
| Dimension: | L1500*W920*H1200±30mm | Structure: | Pneumatic Clamp Structure |
| Power Supply: | 220V 50HZ | Name: | Loader |
| High Light: | smt pick and place machine,smt pick and place equipment |
||

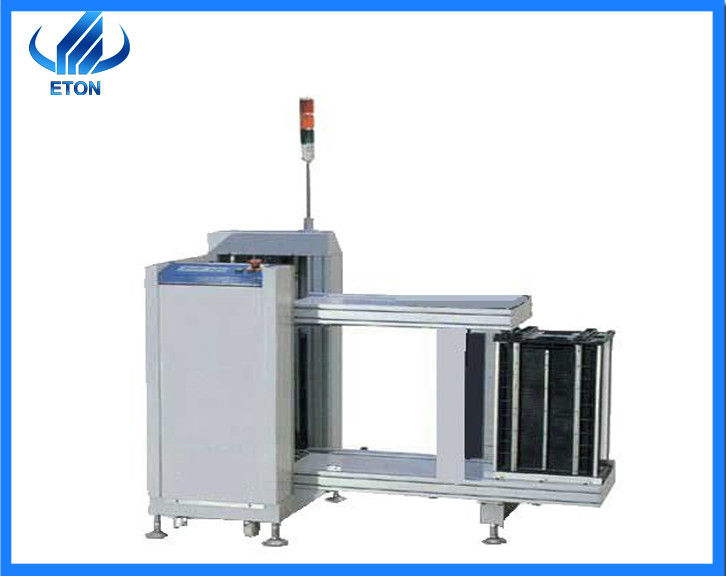

ET-L390 send board machine
ET-L390 is send board machine, it is very easy operating, can save the labor and improve the accuracy.
Vidily using:
ET-L390 can apply to 530*390 mm max pcb, can suitable for most of pcb size, vidily using.
Very intelliengent:
ET-L390 is automatically send board, no need any labor to sent the board, can reach automatic produce.
Multi-speed ascending platform selection:
Lift platform pitch selection have 10, 20, 30, 40.
Parameter:
| Item | ET-L390 send board machine |
| Dimension | L1500*W920*H1200±30mm |
| Frame | Special aluminum profile guide rail and special thousand bird type plastic chain |
| Lift | 120W Taiwan brake motor drive uses ball screw to make Magazine stepping up and down |
| Transmission motor | Taiwan 15W fixed speed motor |
| Structure | Pneumatic clamp structure |
| Turnover box specifications | (L)535*(W)460*(H)565mm |
| Maximum size of PCB | (L)530*(W)390mm |
| Direction | Right to left / left to right |
| Transmission height | H=920±30 |
| Controller | Mitsubishi PLC programmable controller |
| Operation control panel | Display control true color touch screen |
| Pneumatic Components | Push plate cylinder position, adjusted by screw |
| power supply | 220V 50HZ |
| No. of Full load storage board | 50 PCS |
| Gas source | 0.4-0.6MPa |
| Electric control box | 1 set |
Warranty:
We provide standard warranty----one year. In fact, not only the warranty, we also will visit customer regurlarly, provide lately technology support.
Packing and Deadline:
We use a combination of wooden case packaging and vacuum film wrapping, and we pack it with a rope and a stand.Arrivals around 4 weeks after payment.
About us:
ETON set up in 2011, has created superior value for customers as the outstanding worldwide brand of SMT machinewith good repitation.
ETON obtains a number of intellectual pro[erty technologies, including 9 invention patents, 112 pratical patents,12 software copyrigts.
ETON quality principle: quality first, client-oriented, continuous improvement!
