Product Details:
Payment & Shipping Terms:
|
| Application: | SMT Production Line | Dimension: | L1600*W1120*H1200mm |
|---|---|---|---|
| Structure: | Pneumatic Clamp Structure | Direction: | Right To Left / Left To Right |
| Power Supply: | 220V 50HZ |

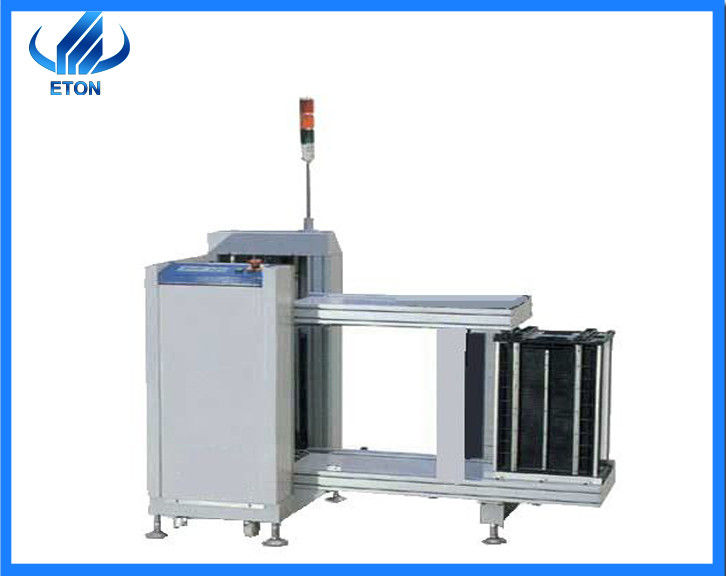

ET-L460 send board machine
Apply to SMT production line
ET-L460 is the send board machine, it is apply to automatic smt production line, Located at the forefront of the production line,loading the PCB in the magazine and transporting the PCB to the press through the power mechanism.
ETON focus on smt
Our company ETON Automation Equipment Co., LTD is in Shenzhen, China. Besides, we also have office in Zhongshan, Hangzhou and India (Deli and Mumbai). We can support quickly.
In china, we are the largest manufacture of SMTmachine, we have more than 10 module of mounter machine, the control system and operating software is independent research and development by ETON. Our machine is better at the high accuracy, high capacity, high performance. With our unique machine, you can save labor, space, money,etc.
Parameter:
| Item | ET-L460 send board machine |
| Dimension | L1600*W1120*H1200mm |
| Frame | Special aluminum profile guide rail and special thousand bird type plastic chain |
| Lift | 120W Taiwan brake motor drive uses ball screw to make Magazine stepping up and down |
| Structure | Pneumatic clamp structure |
| 0.6M long push plate Conveyor | 1 set |
| Turnover box specifications | (L)535*(W)530*(H)565mm |
| Maximum size of PCB | (L)525*(W)460mm |
| Direction | Right to left / left to right |
| Transmission height | H=920±30 |
| Controller | Mitsubishi PLC programmable controller |
| Pneumatic Components | Push plate cylinder position, adjusted by screw |
| power supply | 220V 50HZ |
| Gas source | 0.4-0.6MPa |
| Electric control box | 1 set |
More details of HT-L460
1.There are four height lift platform pitch selection, which contain 10, 20, 30, 40.
2. The No. of Full load storage board is 50 pcs.
3.The Operation control panel is display control true color touch screen
4.The Max pcb size is 525*460 mm
Provide the most comprehensive service
We attach great importance to the sense of responsibility of our customers. If you choose us, we will give our customers the most thoughtful service before, during and after the sale.
Before the sale:
We will introduce the machine enthusiastically and let our customers understand our products in all aspects.
During the sale:
We will provide our customers with the most suitable machine for their production line.
After the sale:
We have a comprehensive after-sales guarantee process, such as the standard warranty, the free install and training, etc.
