Product Details:
Payment & Shipping Terms:
|
| Application: | SMT Production Line | Dimension: | L1500*W1500*H1270mm |
|---|---|---|---|
| Structure: | Yadak Pneumatic Clamp | Maximum Size Of PCB: | L330*W250 |
| Gas Source: | 0.4-0.6MPa |

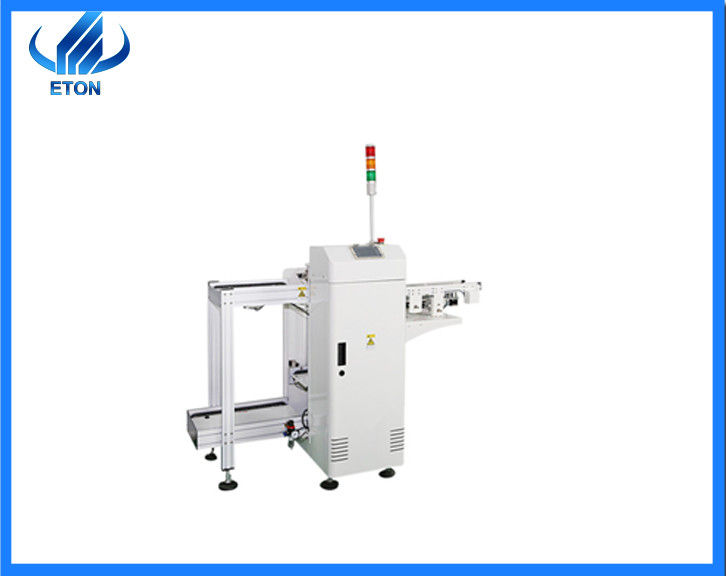

Double track unloader machine ---ET-DUL
Apply:
ET-DUL is the double track unloader machine, apply to smt prodution line.
Features:
1.The most features of ET-DUL is double track with high effience.
2.The lift is 90W Taiwan brake motor drive uses ball screw to make Magazine stepping up and down
3.Multifunctional Lift platform pitch selection, there are 10,20,30,40, 50, total 5 choices.
4.One set 0.6M long push plate Conveyor.
Parameter:
| Item | Double track unloader machine |
| Dimension | L1500*W1500*H1270mm |
| Frame | Special national standard aluminum profile guide rail and special thousand bird type plastic chain |
| Structure | Yadak pneumatic clamp |
| Magazine Specifications | (W)320*(L)355*(H)570mm |
| Maximum size of PCB | L330*W250 |
| Direction | Left to right (the orbital distance is specified by the customer and cannot be changed after the specification) |
| Operation control panel | Taiwanese joint venture display control touch screen |
| power supply | Single phase 220V 50HZ |
| Gas source | 0.4-0.6MPa |
| Electric control box | 1 set |
Similar products
There are others five modules of unloader machine:
| Modules: | Max PCB size: |
| ET-DUL | L330*W250mm |
| ET-UL250 | L330*W250mm |
| ET-UL330 | L450*W330mm |
| ET-UL390 | L530*W390mm |
| ET-UL460 | L525*W460mm |
