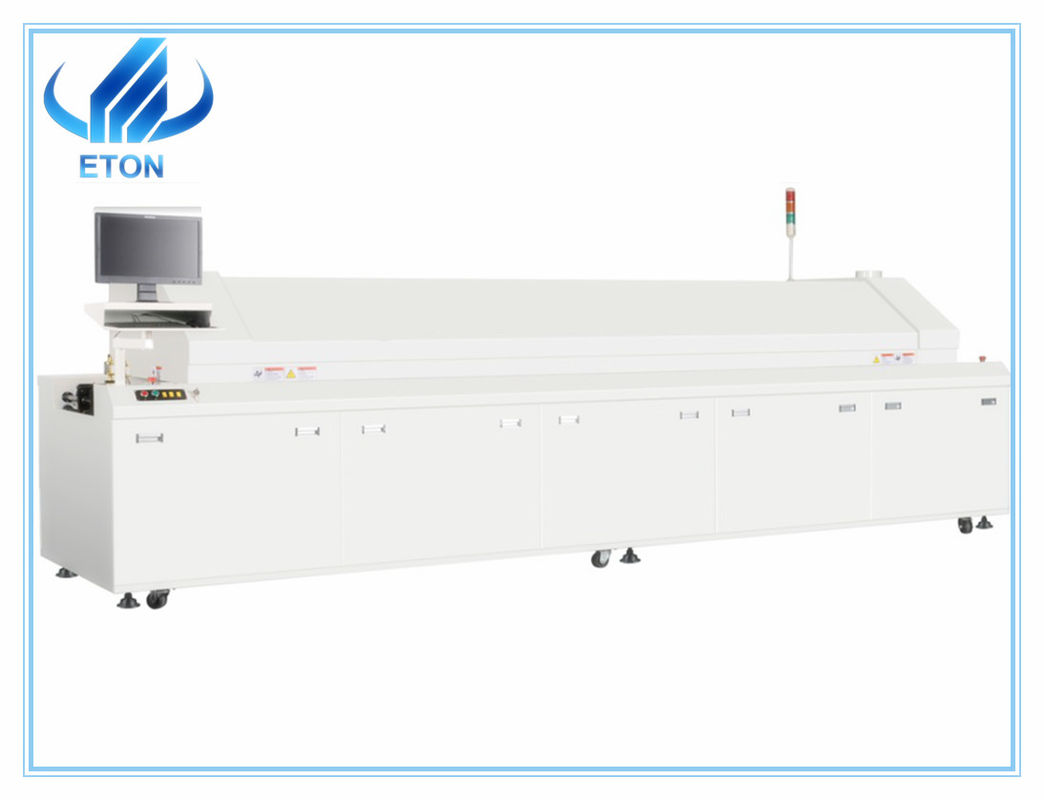

CE ISO CCC Smt Reflow Soldering Machine With Computer And Rail

CE ISO CCC Smt Reflow Soldering Machine With Computer And Rail
CE ISO CCC Smt Reflow Soldering Machine With Computer And Rail

Large Image :  CE ISO CCC Smt Reflow Soldering Machine With Computer And Rail

Product Details:

Place of Origin: CHINA
Brand Name: ETON
Certification: CE,ISO.CCC
Model Number: HT-R6

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: USD 1000-10000
Packaging Details: vacuum wooden packing
Delivery Time: 1-2 weeks
Payment Terms: T/T, Western Union
Supply Ability: 50 unit per mouth
Detailed Product Description
Name: Reflow Soldering Machine Warranty: 1 Year
Function: Reflow Oven Certification: CE ISO CCC
Type: SMT Reflow Oven Profiler Machine Application: Pcb Soldering,SMT LED PCB Reflow Soldering,SMT LED PCB Welding
High Light:

CCC Smt Reflow Soldering Machine

,

ISO Smt Reflow Soldering Machine

,

ISO smt reflow soldering oven

CE ISO CCC Smt Reflow Soldering Machine With Computer And Rail



SMALL SIZE REFLOW OVEN WITH COMPUTER AND RAIL





Up and bottom with 12 heating zones



Introduction:

Tech-Specifications :

No.1 The unique advanced long life heating system

1. The heating system adopt the Swedish nickel heater with efficiency and energy-saving. The peak wave length of the radiation power is 4UM with curved surface reflector to the rising temperature speed, improve the thermal efficiency. And the special forced-air circulation system make PCB and the component heated uniform and eliminate the "shadow effect" completely .

2. Using special high temperature resistant protection system in heating preservation system and special iron in furnace .

3. Using imported Taiwan SanYue long axis of high temperature fan motor and W shaped heat pipe, Model design, no noise, shockless and easy for maintenance .

4.Whole oven are porous aluminum transfer the hot air to guarantee the hot air evenly to the PCB .the whole top oven fixtures can open completely so that easy to clean the oven inside .

No. 2 Smooth and reliable transmission system

1. The transmission system use STK adjustable speed motor imported from Taiwan matched with the 1:150 turbine reducer can running smooth ,speed range can be arrived at 0-1500mm/min.

2. Independent wheel structure support and match stainless belt to make the running smoothly and the speed precision is up to ±20 mm/min .

3. Special stainless belt: durable and wear-resistant, not easy to deform and long life.

No.3 Stable and reliable electrical control system

1. It adopts imported thermostat control which owns fuzzy control and PID intelligent precision control system.It can fast response the changes in external heat and ensure more temperature balanced by PID intelligent operation and automatic control heating .

2. Using thermocouple imported from Taiwan by each temperature zone, it can fast and sensitive induct the changes in each temperature zone, transfer and control timely, compensate the temperature balance in each zone .

3 .Special SSR solid state relay matched with dedicated radiator improve the heat efficiency greatly and prolong the lifetime effectively. No contact output and fuzzy control function by thermostat, can monitoring the changes of outside temperature and calorific value, controlling the heating device by minimum pulse, ensuring the high precision of the temperature control & the uniform temperature in internal



Company profile :

ShenZhen ETON Automation Equipment Co.,LTD.is a leading manufacturer of automatic SMT machine.In 2011,set up ShenZhen Eton Automation Equipment Co.,Ltd.In 2011,HT-12 series began selling.In 2011,HT-E3 was complete research and development (Eton 3 generation machine).





Project Cases :






Our Services

1. offer detail manual user .

2. customer to our factory study and training .

3. offer overseas service : can send engineers

4. to customer factory for install
