Product Details:
Payment & Shipping Terms:
|
| Dimension: | 2550*1650*1550mm | Total Weight: | 1250kg |
|---|---|---|---|
| System: | Windows7 | Software: | R&D Independently |
| Power Consumption: | 4KW | Feeders: | 30 PCS |
| Nozzles: | 8PCS | Speed: | 40000CPH |
| Warranty: | 1 Year | Application: | PCB, Power Driver.electric Board.lens.linear Bulb.household Appliance Etc. |
| High Light: | smt pick and place machine,smt pick and place equipment |
||
Highly Precise SMT Pick And Place Machine 2550*1650*1550mm Dimension
Product presentation
Single module machine
Auto-multifunctional
High speed:40000CPH
Energy conservation
Group to picking and separate to placing
Separate to picking and separate to placing

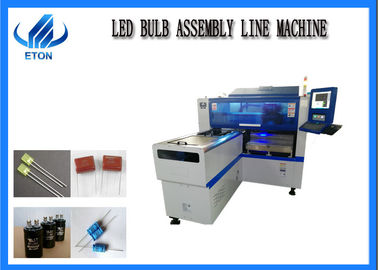

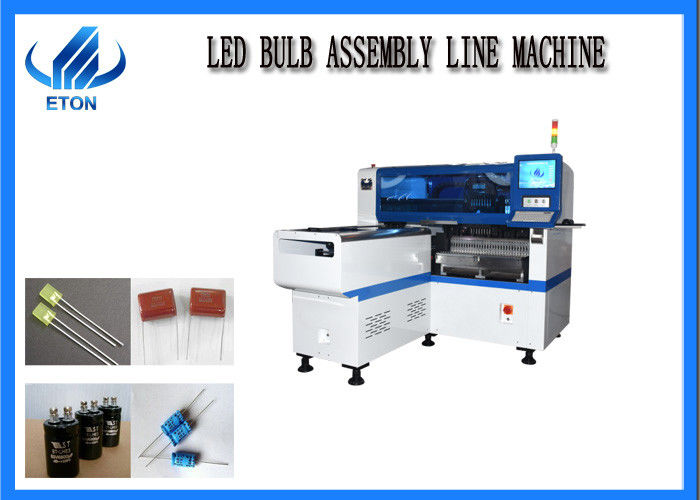

HT-E8S-1200 pick and place machine
Single module linear motor multifunctional pick and place machine
Mounting components
LED,capacitors,resistors,IC,shaped components,etc.
| HT-E8S | ||
| PCB | PCB length width | Max:1200*300mm min:100*100mm |
| PCB thickness | 0.5~5mm | |
| PCB clamping | Adjustable pressure pneumatic | |
| Mounting mode |
ØGroup to picking and separate to placing ØSeparate to picking and separate to placing |
|
| O.S. | system | Windows 7 |
| software | R&D independently | |
| display | Touch screen monitor | |
| Input device | Keyboard , mouse | |
|
Vision system |
No.of camera |
2sets of imported camera Vision for the alignment identification,mark correction |
| Mounting precision | 0.02mm(repeat precision) | |
| Mounting height | <36mm | |
| Mounting speed | 40000CPH | |
| Components space | 0.2mm | |
| No.of feeders station | 30PCS | |
| No.of nozzles | 8PCS | |
| Power | 380AC 50HZ | |
| Power consumption | 4KW | |
| Conveyor transmission | Max length:1200mm | |
| Transmission speed | >500mm/sec | |
| Transmission direction | Both direction | |
| Transmission mode | Auto online drive | |
| Air pressure | >5.0kg /cm² | |
| Electrical control | Independent research and development by ETON | |
| Motion control card module 1set | Independent research and development by ETON | |
| X,Y,X axis drive way | Servo motor control for X,Y,Z axis | |
| Feeding way | Electric feeder with double motor | |
Application
Power driver,electric board,lens,linear bulb,household appliance etc.
Exclusive patented technology
Electronic feeder feeding system
Vision alignment flight identification,mark correction
Non-stop material re-loading function
Auto-optimization after coordinates generated ,etc.
Logistics and delivery
Our mode of transportation including water, land and air transportation.You can choose the most suitable way according to your requirements.
Company Information
Shenzhen ETON Automation Equipment Co. LTD. is a leading manufacturer of automatic high-speed pick and place machine focusing on “High efficiency Low consumption” in the word, meanwhile ETON is also the largest high-tech manufacturer in China with strong capability of design, R&D, manufacturing, sales and service, and rated as “Shenzhen high-tech enterprise” “China high-tech enterprise” “Shenzhen top brand” “2019 LED Technology innovation Award” “The 4th China LED First Innovation Award” “Industry Special Contribution Award” “Double soft enterprise” etc.
ETON advanced technology and innovation drives the revolution of market rapidly, and obtains a number of intellectual property technologies, including 9 invention patents,12 software copyrights, moreover, ETON has invented the fastest automatic pick and place machine with speed 170000CPH, which save much labors and space of production, got large market share in USA,KOREA,INDIA,GERMANY,EYPT,TURKEY,VIENAM,TUNISIA,THAILAND more than 20 countries.
Certificate and Cooperators
We have many excellent overseas customers and maintain long-term cooperative relationship. Customers are very satisfied with our products.
This is our customer's factory operation chart.
After-sale Service
Remarks
1.Payment terms: Deposit 30% in advance,the balance 70% should be paid before shipment by T/T.
2.Delivery time: 30 days after deposit.
3.Warranty: 1 year.(including spare parts)
FAQ
1. What is the mounting mode?
Group to picking and separate to placing,Separate to picking and separate to placing.
2. Is your software interface in English?
English interface and Chinese interface are both available.
