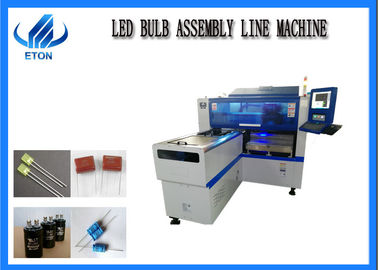

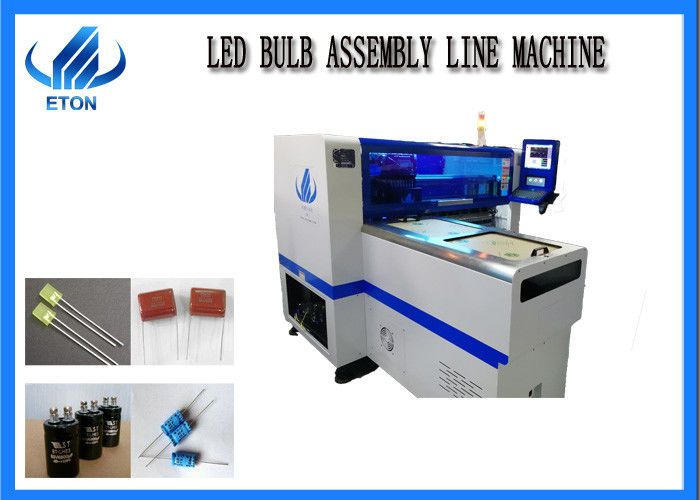

Single module magnetic linear motor multifunctional pick and place machine
Product presentation
- Single module machine
- Mounting components:LED,capacitors,resistors,IC,shaped components,etc.
- Component:min.size 0402 max.height 36 mm.
- Application: power driver.electric board.lens.linear bulb.household appliance etc.
| Exclusive Patented Technology |
performance |
| Electronic feeder feeding system |
The feeding way is electric feeder with double motor,keep the machine running at high speed. |
| Vision alignment flight identification,mark correction |
2 sets of imported camera,vision mark ,Visual Mark, Automatic Search for Mark Points.keep high precision. |
| Non-stop material re-loading function |
Maximize Time Saving and Improve Production Efficiency. |
| auto-optimization after coordinates generated ,etc |
Improve accuracy and avoid defective products. |
technical parameter
| HT-E8S |
| PCB |
PCB length width |
Max:1200*300mm min:100*100mm |
| PCB thickness |
0.5~5mm |
| PCB clamping |
Adjustable pressure pneumatic |
| Mounting mode |
ØGroup to picking and separate to placing
ØSeparate to picking and separate to placing
|
| O.S. |
system |
Windows 7 |
| software |
R&D independently |
| display |
Touch screen monitor |
| Input device |
Keyboard , mouse |
|
Vision
system
|
No.of camera |
2sets of imported camera
Vision for the alignment identification,mark correction
|
| Mounting precision |
0.02mm(repeat precision) |
| Mounting height |
<36mm |
| Mounting speed |
40000CPH |
| Components space |
0.2mm |
| No.of feeders station |
30PCS |
| No.of nozzles |
8PCS |
| Power |
380AC 50HZ |
| Power consumption |
4KW |
| Conveyor transmission |
Max length:1200mm |
| Transmission speed |
>500mm/sec |
| Transmission direction |
Both direction |
| Transmission mode |
Auto online drive |
| Air pressure |
>5.0kg /cm² |
| Electrical control |
Independent research and development by ETON |
| Motion control card module 1set |
Independent research and development by ETON |
| X,Y,X axis drive way |
Servo motor control for X,Y,Z axis |
| Feeding way |
Electric feeder with double motor |
Application
Power driver,electric board,lens,linear bulb,household appliance etc.
Exclusive patented technology
Electronic feeder feeding system
Vision alignment flight identification,mark correction
Non-stop material re-loading function
Auto-optimization after coordinates generated ,etc.
Packaging & Delivery
Our mode of transportation including water, land and air transportation.You can choose the most suitable way according to your requirements.
Our packing is made of wooden box with vacuum package, and we promise to deliver the goods within four weeks after payment.
Company Information
Shenzhen ETON Automation Equipment Co. LTD. is a leading manufacturer of automatic high-speed pick and place machine focusing on “High efficiency Low consumption” in the word, meanwhile ETON is also the largest high-tech manufacturer in China with strong capability of design, R&D, manufacturing, sales and service, and rated as “Shenzhen high-tech enterprise” “China high-tech enterprise” “Shenzhen top brand” “2019 LED Technology innovation Award” “The 4th China LED First Innovation Award” “Industry Special Contribution Award” “Double soft enterprise” etc.
ETON advanced technology and innovation drives the revolution of market rapidly, and obtains a number of intellectual property technologies, including 9 invention patents,12 software copyrights, moreover, ETON has invented the fastest automatic pick and place machine with speed 170000CPH, which save much labors and space of production, got large market share in USA,KOREA,INDIA,GERMANY,EYPT,TURKEY,VIENAM,TUNISIA,THAILAND more than 20 countries.
Certificate and Cooperators
We have many excellent overseas customers and maintain long-term cooperative relationship. Customers are very satisfied with our products.
After-sale Service
- we will send our engineer to your factory to install machine and training freely.
- We have service office in india,and have indian engineer in delhi and mumbai.Can support quickly.
- Standard warranty is one year,during warranty,any parts need to be repaired and replaced will be free.
Remarks
1.Payment terms: Deposit 30% in advance,the balance 70% should be paid before shipment by T/T.
2.Delivery time: 30 days after deposit.
3.Warranty: 1 year.(including spare parts)
FAQ
1. How many cameras does the machine have?
There are two sets of imported cameras.Using exclusive patent technology:vision for the flight identification,Mark correction.
2. What is the direction of transmission of machines?
The transmission direction of this machine is both direction.
3. What kind of driving mode does the XYZ axis adopt?
X axis is magnetic liner motor,Y axis and Z axis is servo motor,very good performance and high accuracy.
4. What is the mounting mode?
Group to picking and separate to placing,Separate to picking and separate to placing.
