Single module magnetic linear motor multifunctional pick and place machine
Product presentation

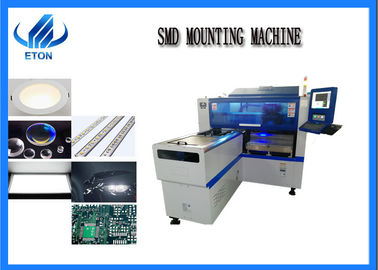

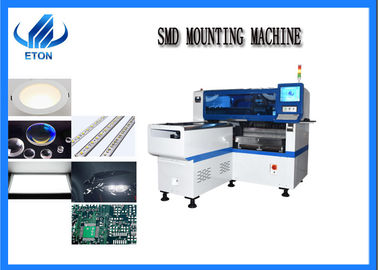

HT-E8S-1200 Led light making machine,it can mounting LED ,capacitors ,resistors,IC,shaped components,etc.

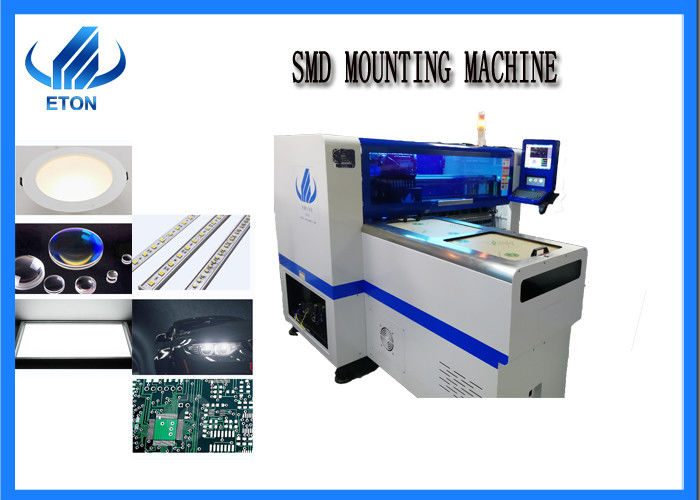

HT-E8S pick and place machine is a single module magnetic linear motor multifunctional pick and place machine. Vision for the flight identification,mark correction.
Led light making machine ,adapt high end magnetic linear motor and servo motor to drive,and feeding way by electric feeder with double motor.
HT-E8S-1200 application for power driver.electric board.lens.linear bulb.household appliance etc.
technical parameter
| HT-E8S |
| PCB |
PCB length width |
Max:1200*300mm min:100*100mm |
| PCB thickness |
0.5~5mm |
| PCB clamping |
Adjustable pressure pneumatic |
| Mounting mode |
ØGroup to picking and separate to placing
ØSeparate to picking and separate to placing
|
| O.S. |
system |
Windows 7 |
| software |
R&D independently |
| display |
Touch screen monitor |
| Input device |
Keyboard , mouse |
|
Vision
system
|
No.of camera |
2sets of imported camera
Vision for the alignment identification,mark correction
|
| Mounting precision |
0.02mm(repeat precision) |
| Mounting height |
<36mm |
| Mounting speed |
40000CPH |
| Components space |
0.2mm |
| No.of feeders station |
30PCS |
| No.of nozzles |
8PCS |
| Power |
380AC 50HZ |
| Power consumption |
4KW |
| Conveyor transmission |
Max length:1200mm |
| Transmission speed |
>500mm/sec |
| Transmission direction |
Both direction |
| Transmission mode |
Auto online drive |
| Air pressure |
>5.0kg /cm² |
| Electrical control |
Independent research and development by ETON |
| Motion control card module 1set |
Independent research and development by ETON |
| X,Y,X axis drive way |
Servo motor control for X,Y,Z axis |
| Feeding way |
Electric feeder with double motor |
Application
Power driver,electric board,lens,linear bulb,household appliance etc.
Exclusive patented technology
Electronic feeder feeding system
Vision alignment flight identification,mark correction
Non-stop material re-loading function
Auto-optimization after coordinates generated ,etc.
Packaging & Delivery
Our mode of transportation including water, land and air transportation.You can choose the most suitable way according to your requirements.
Our packing is made of wooden box with vacuum package, and we promise to deliver the goods within four weeks after payment.
| packing |
| 1.Filming packing |
Make the machine sanitary, clean, sealed packaging, dust and humidity; have good shock resistance, impact resistance, and good protection performance with tightness and fixity. |
| 2.vacuum packing |
Advantages of moistureproof, dustproof and so on |
| 3.wooden packing |
It has good cushioning performance, corrosion resistance, high strength and hygroscopicity, moisture-proof and earthquake-resistant functions. |
