Product Details:
Payment & Shipping Terms:
|
| Name: | Reflow Oven | Brand: | ETON |
|---|---|---|---|
| Model: | ET-R5 | Dimensions: | L3000*W660*H1220mm |
| Net Weight: | 450kgs | PCB Max Width: | 300mm |
| Conveyor Style: | Mesh Belt | Conveyor Speed: | 0-1500mm/min |
| High Light: | smt pick and place machine,smt pick and place equipment |
||

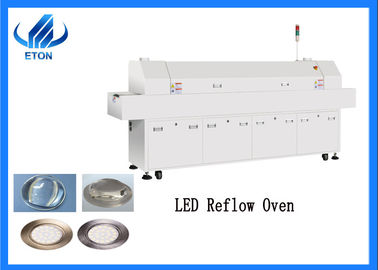

5 Heating Zones Reflow Soldering Machine 300mm PCB Max Width For LED Assembly Line
Reflow technology
Due to the need for miniaturization of electronic product PCB boards, chip components have emerged, and conventional soldering methods have been unable to meet the needs. At first, only the reflow soldering process was used in the assembly of hybrid integrated circuit boards. Most of the components to be assembled and soldered were chip capacitors, chip inductors, mounted transistors and diodes. With the development of SMT technology, a variety of SMCs and SMDs have emerged as part of the placement technology. The reflow process technology and equipment have also been developed accordingly. It has been applied in almost all electronic products
ET-R5 Dimension
| Model | ET-R5 |
| Dimensions | L3000*W660*H1220mm |
| Net Weight | 450kgs |
| PCB Max Width | 300mm |
Conveyor
| Conveyor Style | mesh belt |
| Conveyor speed | 0-1500mm/min |
Consumption
| Startup consumption | 12KW |
| Steady Consumption | 5kw |
Heating system
| Heating Zone | Top 5 / Bottom 5 |
| Heating Passage | 1800mm |
| Heating Style | Hot air |
| Cooling zone | one zone |
Temperature
| Temperature set-point | Room temerature to 400°C |
| Temperature control | PID Tenmperatem closed loop control |
| Temperature accuracy | ±1°C |
| Deviation temperature on pcb | ±2°C |
| Abnormal alarm | equipped temperature abnormal alarm device |
Contact us
Based on the long-term prospects of the smt industry, our company will always be committed to the smt patch industry, constantly improve its technical level, to be greener, more energy-efficient, and more environmentally friendly.
