| Brand: | ETON | Name: | Reflow Oven |
|---|---|---|---|
| Module: | ET-R10 | Top Lead Free Reflow Oven With Ten Heating Zones Introduction: 1.Device Is Equipped With Mesh Belt,: | Up 10/ Bottom 10 |
| Number Of Cooling Zones: | 2 | Range Of Rail Width2: | 50-400mm |
| High Light: | smt pick and place machine,smt pick and place equipment |
||

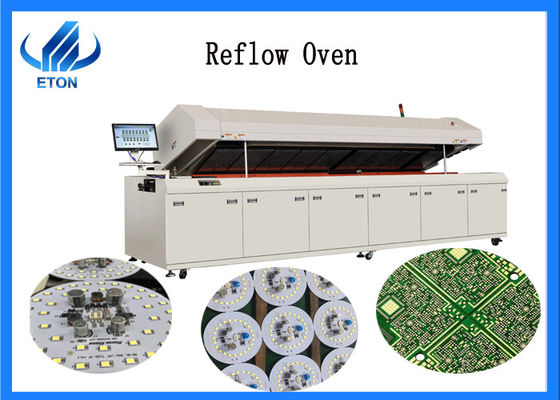

Top lead free reflow oven with ten heating zones
Introduction:
Parameter:
| Model | ET-R10 | |
|
Heating System |
Number of heating zones | Up 10/ bottom 10 |
| Number of cooling zones | 2 | |
| Length of heating zones | 3700mm | |
| Heating mode | Hot air | |
| Cooling Mode | Forced air cooling | |
| Exhaust Volume | 10m³/min * 2 exhausts | |
|
Conveyor System |
Max. Width of PCB | 400mm |
| Mesh belt width | 450mm | |
| Transmission Direction | L→R(option: R→L) | |
| Transmission Net Height | 900±20mm | |
| Transmission type | Mesh and chain | |
| Range of rail width | 50-400mm | |
| Conveyor speed | 0-2000mm/min | |
| Auto/manual Lubrication | Standard | |
| Fixed rail side | Front rail fixed(option: rear rail fixed) | |
| Components high | Top and bottom 25mm | |
|
Control system |
Power supply | 5 line 3 phase 380V 50/60HZ |
| Total power | 58KW | |
| Starting power | 50KW | |
| Normal power consumption | 10KW | |
| Warming time | 20 mins | |
| Temp. setting range | From room temp. To 300℃ | |
| Temp. control method | PID close loop control & SSR driving | |
| Temp. control precision | ±1℃ | |
| Temp. deviation on PCB | ±2℃ | |
| Data storage | Process Data and status storage(80GB) | |
| Nozzle plate | Aluminum Alloy Plate | |
Maintenance system:
We have to do the maintenance work after reflow soldering; otherwise it is difficult to maintain the service life of the equipment.
1. Every day, every component should be inspected, pay special attention to the conveyor belt, and it should not be stuck or detached.
2. When servicing the machine, turn off the power to prevent electric shock or short circuit
3. The machine must be stable and must not be tilted or unstable
4. In case of heating in individual temperature zones, the corresponding fuses should be checked by re-melting the paste pre-assigned to the printed circuit board pads.
