Product Details:
Payment & Shipping Terms:
|
| Brand: | ETON | Name: | Reflow Oven |
|---|---|---|---|
| Warranty: | 1 Year | Module: | ET-R10 |
| Weight: | 2300kg | Dimension(L*W*H): | 5400*1320*1490mm |
| High Light: | smt pick and place machine,smt pick and place equipment |
||

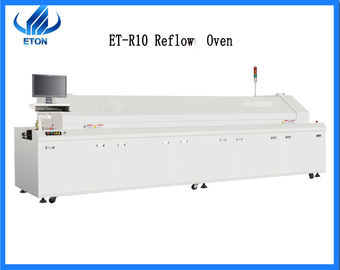

ET-R10 Automatic Pick And Place Machine , Reflow Oven Machine 450mm Mesh Belt Width
Introduction:
1. Have password administration of the operating system, to prevent the irrelevant personnel changes to the process parameters, operation records management traceability process parameters change process, improve the management convenient. For storing user existing temperature speed setting and Settings of the temperature curve, and can be used for all data and curve printing;
2. Integrated control window, the computer switch, test curve, print curve and data transmission are easily operation, humanized design. Equipped with three-channel temperature curve online testing system, may at any time to check welding objects by the actual temperature curve (without the other match temperature curve tester);
Dimension:
| Dimension(L*W*H) | 5400*1320*1490mm |
| Weight | 2300kg |
| Color | Computer gray |
Conveyor System:
| Max. Width of PCB | 400mm |
| Mesh belt width | 450mm |
| Transmission Direction | L→R(option: R→L) |
| Transmission Net Height | 900±20mm |
| Transmission type | Mesh and chain |
| Range of rail width | 50-400mm |
| Conveyor speed | 0-2000mm/min |
| Auto/manual Lubrication | Standard |
| Fixed rail side | Front rail fixed(option: rear rail fixed) |
| Components high | Top and bottom 25mm |
Heating and control System:
What is Preheating zone?
Preheating zone: PCB and material (components) are preheated, and the reflow oven is said to be the heating effect of the previous one or two heating zones. Higher preheating, the material to be welded is thermally balanced, the solder paste starts to move, and the flux and other components are heated up by the temperature, and the reflow oven is said to be the heating effect of the third to fourth heating zones.
What is Constant temperature zone?
Constant temperature zone: After removing the surface oxide, some airflow begins to evaporate (start welding) and the temperature reaches the melting point of the solder paste (the solder paste is in the dissolved state), which is the fifth and sixth seven for the reflow oven. Heating effect in the heating zone.
ETON
Shenzhen ETON Automation Equipment Co. LTD. is a leading manufacturer of automatic smt machine, set up in 2011. And we have exported more than 20 countries, got large market share in USA, KOREA, GERMANY, TURKEY, India, Turkey, Germany, Korea, USA. We have obtains a number of intellectual property technologies, including 9 invention patens,1 12 practical patents, 12 software copyrights.
Cooperation:
Our company sells many types of smt machine, please contact us if you are interested.
