Product Details:
Payment & Shipping Terms:
|
| Place Of Origin: | China | Warranty: | 1 Year |
|---|---|---|---|
| Dimension: | 2200*2910*1550mm | Total Weight: | 1600kg |
| System: | Windows7 | Software: | R&D Independently |
| Visual Camera: | 5 Sets Of Imported Camera | Power: | 220AC 50HZ |
| Power Consumption: | 5KW | PCB Length Width: | 250*any Length |
| PCB Thickness: | 0.5~1.5mm | ||
| High Light: | smt pick and place machine,smt pick and place equipment |
||

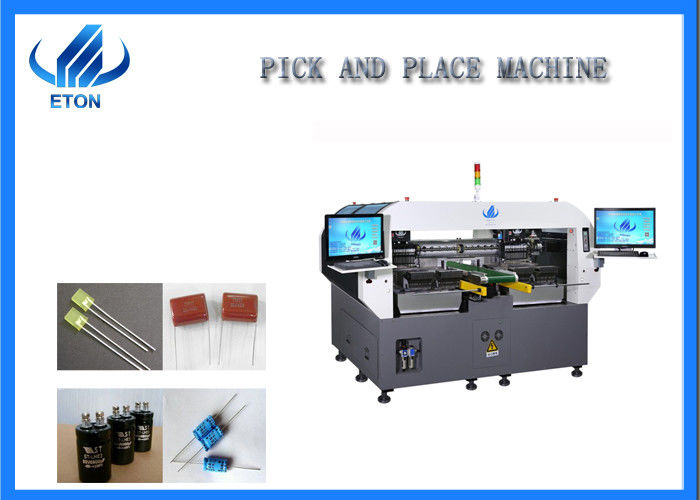

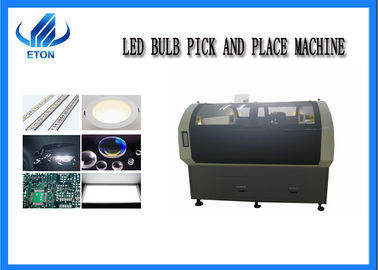

High Precise PCB Board Making SMT Mounting Machine &LED strip making machine
HT-T7 LED pick and place machine ,Producing with 2~4 types of materials with high capacity,available for 5m,50m or any length of flexible strip and roll to roll.
HT-T7 LED pick and place machine with Two modules ,15 nozzles ,for each mounting part ,part A or part B can be mounted separatly or synchronously.
Calibration automatically,high precision,available for RGB.
Exclusive patent technology :group to pick and group to mount.
Product presentation
led lamp machine,The nozzle and flying distance can be adjusted according to the plate spacing to achieve the best speed mounting.
Fully automatic flying feeding system ensures the feeding accuracy of the led bulb laser printing machine; intellectualized production saves labor costs, improves efficiency and productivity.
The led msnufscturing machine can be mounted with unlimited length soft lamp tape to meet most of the market deman
d.
Conveyor transmission automatic adjustment, floating clamping, improve efficiency and portability, without manual work.
Technical parameter
| HT-T7 led pick and place machine | ||
| PCB | PCB length width | 250mm*any length |
| PCB thickness | 0.5~1.5mm | |
| PCB clamping | Adjustable pressure pneumatic | |
| Mounting mode | Group to take and group to mount | |
| O.S. | system | Windows 7 |
| software | R&D independently | |
| display | LED monitor | |
| Input device | Keyboard , mouse | |
Vision | No.of camera | 5 sets of imported camera |
| Mounting precision | 0.02mm(repeat precision) | |
| Mounting height | <15mm | |
| Mounting speed | 100000~150000CPH | |
| Components | LED 3014/3020/3528/5050 and resistors,capacitors ,bridge rectifiers. | |
| Components space | 0.2mm | |
| No.of feeders station | 60PCS | |
| No.of nozzles | 30PCS | |
| Power | 220AC 50HZ | |
| Power consumption | 5KW | |
| Transmission speed | >500mm/sec | |
| Transmission direction | Single (left to right or right or left) | |
| Position mode | Optical | |
| X,Y,X axis drive way | Servo motor control for X,Y,Z axis | |
| Feeding way | Electric feeder with double motor | |
Company Information
Shenzhen ETON Automation Equipment Co. LTD. is a leading manufacturer of automatic high-speed pick and place machine focusing on “High efficiency Low consumption” in the word.ETON has created superior value for customers as the outstanding worldwide brand of high speed SMT machine with good reputation .looking forward to the future ,we believe that ETON will seek to better achievement in SMT field and make greater contributions to the industry and society.
Our mode of transportation including water, land and air transportation.You can choose the most suitable way according to your requirements.
Our packing is made of wooden box with vacuum package, and we promise to deliver the goods within four weeks after payment.
| Packaging & Delivery | |
| 1.Filming packing | Make the machine sanitary, clean, sealed packaging, dust and humidity; have good shock resistance, impact resistance, and good protection performance with tightness and fixity. |
| 2.vacuum packing | Advantages of moistureproof, dustproof and so on |
| 3.wooden packing | It has good cushioning performance, corrosion resistance, high strength and hygroscopicity, moisture-proof and earthquake-resistant functions. |
Attention
1. Before using the Pick and Place machine, you must understand the basic parameters of the placement machine;
2. Before running the Pick and Place machine, the operator should do a comprehensive inspection of the machine.
3. According to the boot operation sequence to implement the Pick and Place machine, there must have a detailed machine operation instructions;
4. It is necessary to conduct regular troubleshooting and maintenance work on the Pick and Place machine in a timely manner.
Our Partners
ETON advanced technology and innovation drives the revolution of market rapidly,and obtains a number of intellectual property technologies,including 9 invention patents,112 practical patents ,12 software copyrights,which save much labors and space of production ,got large market share in USA ,KOREA,INDIA,GERMANY,EGYPT,TURKEY,VIETNAM,TUNISIA,THAILAND more than 20 countries.
Remarks:
1.Payment terms: Deposit 30% in advance,the balance 70% should be paid before shipment by T/T.
2.Delivery time: 30 days after deposit.
3.Warranty: 1 year.(including spare parts)
