Product Details:
Payment & Shipping Terms:
|
| Condition: | New | Name: | PCB Loader |
|---|---|---|---|
| Product Name: | ET-L250 | Length: | 1100MM |
| Power Supply: | 220V 50Hz | Brand: | Eton |
| High Light: | led chip making machine,led production equipment |
||

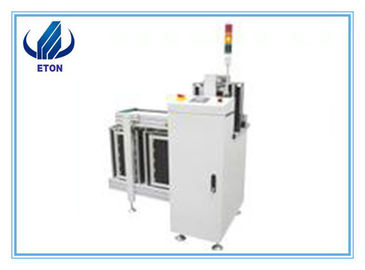

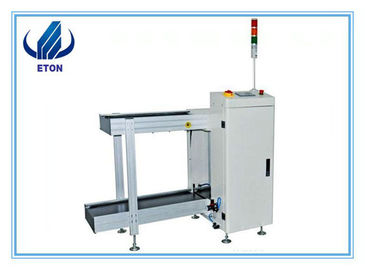

Small LED PCB Send Board Machine ET-L250 SMT Production Line Machine
SMT loader Features:
1. Research purpose: To achieve the automation of SMT, suitable for other similiar PCB in loading&unloading.
2. Decrease the pad oxide in manual operation, and the labor
3. Apply to import PLC Controller, high automation, ensure the stability
4. Can set the function of single-up, Max. Times up to 10
5. The frame is applying to the superior aluminum material, superior selection, strong and durable
6. Apply to high precise SMT handspike exported from Japan, ensure the in-putting without mistake.
7. We can produce all dimensions of machine according to clients' PCB size.
SMT loader’s parameters
| Item | ET-L250 send board machine |
| Dimension | L1100*W780*H1200±30mm |
| Frame | Special aluminum profile guide rail and special thousand bird type plastic chain |
| Lift | 90W Taiwan brake motor drive uses ball screw to make Magazine stepping up and down |
| Transmission motor | Taiwan 15W fixed speed motor |
| Structure | Pneumatic clamp structure |
| Magazine Specifications | L355*W320*565mm |
| Maximum size of PCB | L330*W250 |
| Direction | Right to left / left to right |
| Lift platform pitch selection | 10,20,30,40 |
| Transmission height | H=920±30 |
| Controller | Mitsubishi PLC programmable controller |
| Function | Automatically send board |
| Operation control panel | Display control true color touch screen |
| Pneumatic Components | Push plate cylinder position, adjusted by screw |
| power supply | 220V 50HZ |
| No. of Full load storage board | 50 PCS |
| Gas source | 0.4-0.6MPa |
| Electric control box | 1 set |
The related machines
Company’s information
Shenzhen Eton Automation Equipment co.,ltd is a professional original manufacturer for SMT machines. Which can provide loader, conveyor, printer machine, pick and place machine, reflow oven, PCB clean machines, vacuum suction machine, wave machine, solder paste machine and so on with more than 10 years experience.
Eton five level management policy is:
Sinere business, focus on R&D, manufacturing intentions, considerate service, customer trust.
