Product Details:
Payment & Shipping Terms:
|
| Place Of Origin: | China | Warranty: | 1 Year |
|---|---|---|---|
| Dimension: | 1650*1200*1570mm | Total Weight: | 1200kg |
| System: | Windows7 | Software: | R&D Independently |
| Visual Camera: | 2 Sets Of Imported Camera | Power: | 380AC 50HZ |
| Power Consumption: | 4KW | PCB Length Width: | Max：500*350mm |
| Speed: | 40000CPH | ||
| High Light: | smt pick and place machine,smt pick and place equipment |
||

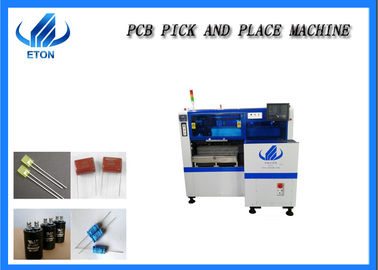

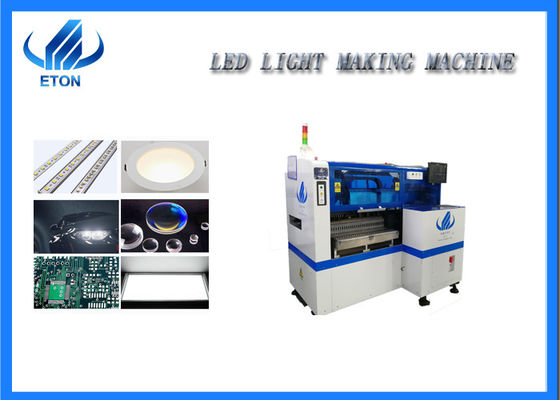

4KW Power LED Making Machine , LED Production Machine Auto Conveyor System
Product presentation
Single module machine
Auto-multifunctional
High speed:40000CPH
Energy conservation
Group to picking and separate to placing
Separate to picking and separate to placing
| Technical parameter | ||
| PCB | PCB length width | Max:500*350mm min:100*100mm |
| PCB thickness | 0.5~3mm | |
| PCB clamping | Electric clamping +adjustable pressure pneumatic | |
| Mounting mode |
Group to picking and separate to placing Separate to picking and separate to placing
|
|
| O.S. | system | Windows7 |
| software | R&D independently | |
| display | LED monitor | |
|
Vision system |
Visual camera |
2 sets of imported camera Vision for the flight ide3ntification,mark correction |
| Mounting precision | 0.02mm | |
| Mounting height | <36mm | |
| Transmission direction | Single (left to right or right to left) | |
| Drive way | High-end magnetic linear motor +servo motor | |
| Feeding system | Feeders station | 30PCS |
| nozzles | 8PCS | |
| Feeding way | Electric feeder with double motor | |
Application
Mounting components:LED,capacitors,resistors,IC,shaped components,etc.
Application: Power driver,electric board,lens,linear bulb,household appliance etc.
Patented technology
1. Electronic feeder feeding system
2. Vision alignment flight identification,mark correction
3. Non-stop material re-loading function
4. Auto-optimization after coordinates generated ,etc.
Attention
1. Before using the Pick and Place machine, you must understand the basic parameters of the placement machine;
2. Before running the Pick and Place machine, the operator should do a comprehensive inspection of the machine.
3. According to the boot operation sequence to implement the Pick and Place machine, there must have a detailed machine operation instructions;
4. It is necessary to conduct regular troubleshooting and maintenance work on the Pick and Place machine in a timely manner.
After sales service
1.Maintenance period: 1 year.
2.Visit customers regularly and gather information.
3.Provide latent information about technology and equipment.
What’s the terms of payment? What about the trade term?
T/T is OK. You can choose FOB Shenzhen.
What is the maximum height of components that can be mounted on a machine?
The height of the mounting component can reach 36 mm, and the minimum mounting component can be 0402.
What is the length of the playable PCB?
Max:500*350mm min:100*100mm
Is this machine difficult to operate?
No, not at all. For our previous clients, at most 5 days is enough to learn to operate the machines.
