Name: | Stencil Printer | Module: | ET-F400 |
---|---|---|---|
PCB Min Size: | 50X50mm | PCB Max Size: | 400X340mm |
PCB Thickness: | 0.4~6mm | PCB Warpage: | <1% |
Transport Height: | 900±40mm | Printing Accuracy: | ±0.025mm |
High Light: | smt pick and place machine,smt pick and place equipment |
Intelligent SMT Mounting Machine Transport Height 900±40mm For Solder Paste Printing

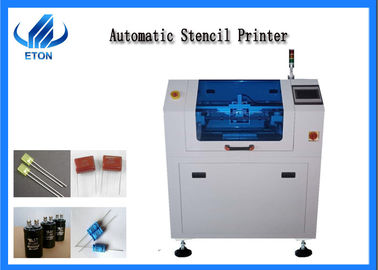

ET-F400 Automatic stencil printer
The SMT patch refers to the abbreviation of a series of processes that are processed on a PCB basis, and the PCB is a printed circuit board. SMT is surface mount technology and is one of the most popular technologies and processes in the electronics assembly industry.
SMT /SMD refers to the abbreviation of a series of processes that are processed on a PCB basis.
ET-F400 is the automatic stensil printer
Stencil printer is very important in smt production line, ET-F400 is the automatic stencil printer, it’s transport height is 860-940 mm, transport direction is left-right, right-left, left-left or right-right. Max transport speed is 1500mm/s programmable.
Screen frames
ET-F400 max screen frames size is 737*737 mm, mmin size is 370*370 mm, thickness is 25-40 mm.
Max pcb size 400*340 mm
ET-F400 suitable for max pcb size 400* 340 mm and the min size is 50*50 mm.The thickness is 0.4-6 mm and the pcb warpage no more than one percent.
Screen Frames | Min Size | 370X370mm |
Max Size | 737X737mm | |
Thickness | 25~40mm | |
PCB Min Size | 50X50mm | |
PCB Max Size | 400X340mm | |
PCB Thickness | 0.4~6mm | |
PCB Warpage | <1% |
Features
1.ET-F400 have two independent motorised printheads, very intelligent.
2.PCB support system is magnetic pin/up-down table adjust/supportblock.
3.Clamping system is side clamping and vacuum nozzle.
Parameters:
Transport Height | 900±40mm | |
Transport Direction | Left-Right;Right-Left;Left-Left;Right-Right | |
Transport Speed | Max 1500mm/S Programmable | |
Board Location | Support System | Magnetic Pin/Up-down table adjusted/supportblock by hand |
Clamping System | side clamping,vacuum nozzle |
Cleaning System | Dry,Wet,Vacuum (Programmable) |
Table Adjustment ranges | X:±10mm;Y:±10mm;θ:±2° |
Repeat Position Accuracy | ±0.01mm |
Printing Accuracy | ±0.025mm |
Cycle Time | <7s (Exclude Printing & Cleaning) |
Product Changeover | <5Min |
Air Required | 4.5~6Kg/cm2 |
Power Input | AC:220±10%,50/60HZ 1Φ 3KW |
Control Method | PC Control |
Machine Dimensions | 1220(L)X1355(W)X1500(H)mm |
Machine Weight | Approx:1000Kg |
SMT Line
For produce different products, there are different machines in smt production line. Such as for Led lighting line, we need to prepare loader, unloader, stencil printer, reflow oven, conveyor.
