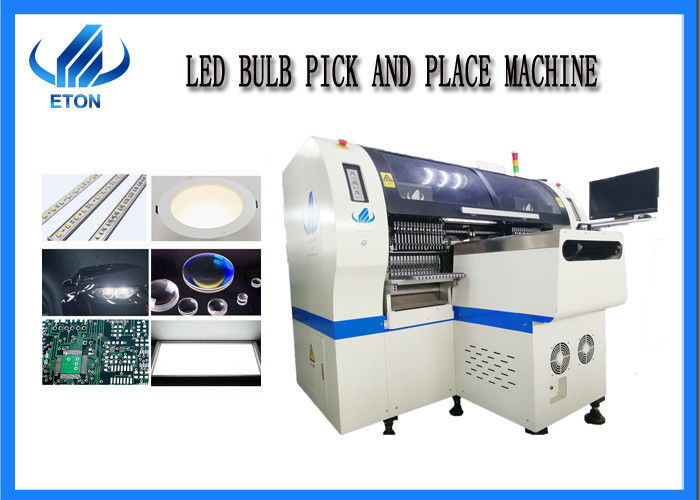

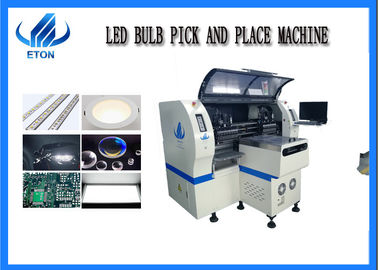

High Accuracy PCB Board Making Machine Windows 7 System 150000CPH Speed

High Accuracy PCB Board Making Machine Windows 7 System 150000CPH Speed
High Accuracy PCB Board Making Machine Windows 7 System 150000CPH Speed

Large Image :  High Accuracy PCB Board Making Machine Windows 7 System 150000CPH Speed

Product Details:
Place of Origin: CHINA
Brand Name: ETON
Model Number: HT-F8
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: FOB USD 44000~54000/sets
Packaging Details: Our packing is made of wooden box with vacuum package, and we promise to deliver the goods within four weeks after payment.
Delivery Time: 30 days after deposit
Payment Terms: L/C, T/T
Supply Ability: 50 sets per mouth
Detailed Product Description
Place Of Origin: China Warranty: 1 Year
Dimension: 1600*1900*1550 Mm Total Weight: 1100 Mm
System: Windows7 Software: R&D Independently
Visual Camera: 5 Sets Of Imported Camera Power: 380AC 50HZ
Power Consumption: 8 KW PCB Length Width: Max:345*600 Mm Min:0.5~5 Mm
Speed: 150000CPH Mounting Height: <15 Mm
Transmission Direction: :single (left To Right Or Right To Left) Port: Shenzhen
High Light:

smt pick and place machine

,

smt pick and place equipment

Pick and place machine professional for LED display 32 heads SMT automatically machine



Product Advantages



1. adjust and fix PCB automatically by software,Guarantee accuracy.

2. No need support plate for mounting LED display.

3. Two module ,32 nozzles totally ,part A and part B can work separately or synchronously.

4. Vision system: 5 sets of imported camera;vision alignment,mark correction.

5. Servo motor control for X,Y,Z axis.



High Accuracy PCB Board Making Machine Windows 7 System 150000CPH Speed 0



High Accuracy PCB Board Making Machine Windows 7 System 150000CPH Speed 1



Product specifications:

HT-F8
PCB PCB length width 345*600mm min:0.5~5mm
PCB thickness 0.5~5mm
PCB clamping adjust and fix PCB automatically by software
Mounting mode Group to take and group to mount
O.S. system Windows 7
software R&D independently
display LED monitor
Input device Keyboard , mouse

Vision

system

No.of camera

5 sets of imported camera

Vision alignment,mark correction

Mounting precision 0.02mm(repeat precision)
Mounting height <15mm
Mounting speed 150000CPH
Components LED 3014/3020/3528/5050 and resistors,capacitors ,bridge rectifiers.
Components space 0.2mm
No.of feeders station 32PCS
No.of nozzles 32PCS
Power 220AC 50HZ
Power consumption 5KW
Conveyor transmission Belt drive
Transmission speed >500mm/sec
Transmission direction Single (left to right or right or left)
Transmission mode Auto online drive
Position mode Optical
Air pressure >5.0kg /cm²
Electrical control Independent research and development by ETON
Motion control card module 1set Independent research and development by ETON
X,Y,X axis drive way Servo motor control for X,Y,Z axis
Feeding way Electric feeder with double motor



Company Information



Shenzhen ETON Automation Equipment Co. LTD. is a leading manufacturer of automatic high-speed pick and place machine focusing on “High efficiency Low consumption” in the word.ETON has created superior value for customers as the outstanding worldwide brand of high speed SMT machine with good reputation .looking forward to the future ,we believe that ETON will seek to better achievement in SMT field and make greater contributions to the industry and society.



High Accuracy PCB Board Making Machine Windows 7 System 150000CPH Speed 2



Logistics and delivery



Our mode of transportation including water, land and air transportation.You can choose the most suitable way according to your requirements.

Our packing is made of wooden box with vacuum package, and we promise to deliver the goods within four weeks after payment.



High Accuracy PCB Board Making Machine Windows 7 System 150000CPH Speed 3



Before services



1) Professional sales manager of LED SMT machine, provide professional suggestion and service to you !

2) 24 hours online service and technical support, solve your questions quickly!

3) Sound company organization and working system, guarantee you a fast delivery!

4) Design and provide the whole SMT processing lines for you based on your budget , workshop covering area with best prices!



After-sale Service



we will send our engineer to your factory to install machine and training freely.

We have service office in india,and have indian engineer in delhi and mumbai.Can support quickly.

Standard warranty is one year,during warranty,any parts need to be repaired and replaced will be free.



Remarks



1.Payment terms: Deposit 30% in advance,the balance 70% should be paid before shipment by T/T.

2.Delivery time: 30 days after deposit.

3.Warranty: 1 year.(including spare parts)



FAQ



1.What kind of driving mode does the XYZ axis adopt?

X axis is magnetic liner motor,Y axis and Z axis is servo motor,very good performance and high accuracy.



2. What type of transportation can be used?

Our modes of transportation are flexible, and we can choose both sea, land and air transportation.



3. Is your software interface in English?

English interface and Chinese interface are both available.



4.What’s the terms of payment? What about the trade term?

T/T is OK. You can choose FOB Shenzhen.



5.How is your service?

If you buy our machine,we will send our engineer to your factory to install machine and training freely.
