Product Details:
Payment & Shipping Terms:
|
| Name: | Stencil Printer | Brand: | ETON |
|---|---|---|---|
| PCB Min Size: | 50X50mm | PCB Max Size: | 400X340mm |
| PCB Thickness: | 0.4~6mm | Machine Weight: | Approx:1000Kg |
| Squeegee Pressure: | 0~15Kg | Squeegee Angle: | 60°/55°/45° |
| Highlight: | smt pick and place machine,smt pick and place equipment |
||
Smt Automatic Line-stencil Printer +pick And Place Machine + Reflow Oven + Conveyor For Pcb Components Placement
SMT line
The basic process components of SMT include: silk screen (or dispensing), placement (curing), reflow soldering, cleaning, inspection, rework.

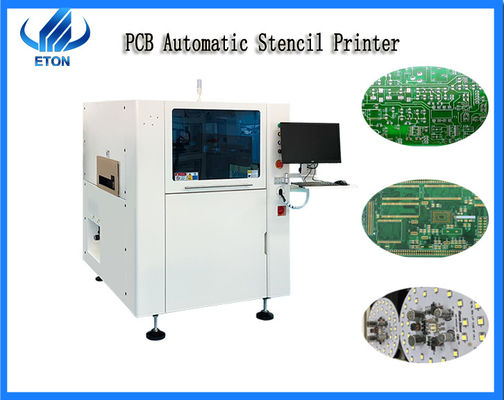

Function of stencil printer
The function is to print solder paste on the pads of the PCB to prepare for the soldering of the components. The equipment used is a screen printing machine, located at the forefront of the SMT production line.
Important parameter
1.Screen frames
| Screen Frames | Min Size | 370X370mm |
| Max Size | 737X737mm | |
| Thickness | 25~40mm |
2. PCB
| PCB Min Size | 50X50mm |
| PCB Max Size | 400X340mm |
| PCB Thickness | 0.4~6mm |
| PCB Warpage | ＜1% |
3.Board location
| Board Location | Support System | Magnetic Pin/Up-down table adjusted/supportblock by hand |
| Clamping System | side clamping,vacuum nozzle |
4.Demension
| Machine Dimensions | 1220(L)X1355(W)X1500(H)mm |
| Machine Weight | Approx:1000Kg |
5.Transport
| Transport Height | 900±40mm |
| Transport Direction | Left-Right;Right-Left;Left-Left;Right-Right |
| Transport Speed | Max 1500mm/S Programmable |
6. Squeegee
| Print head | Two independent motorised printheads |
| Squeegee Speed | 6~200mm/sec |
| Squeegee Pressure | 0~15Kg |
| Squeegee Angle | 60°/55°/45° |
| Squeegee Type | Stainless steel(Standard), plastic |
ETON Company
Shenzhen ETON automatic equiment company is an international development company for global customers. Our placement machines are exported to more than 20 countries and
have benn well received all over the world.Such as USA. KOREA, GERMANY, EGYPT,
After sales service
After-sales service refers to a series of services provided by the manufacturer and distributor after the product (or service) is sold to the consumer, including product introduction, delivery, installation, commissioning, maintenance, technical training, on-site service, etc. After-sales service is an important measure for the production unit of the product to be responsible to consumers, and also a way to enhance the competitiveness of products.
ETON pay attention to a comprehensive after-sales service strategy.
