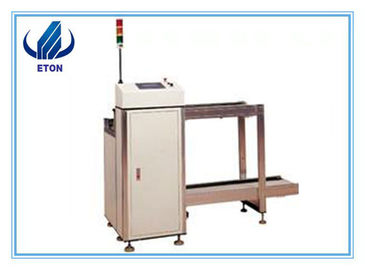

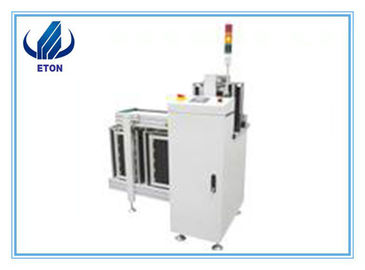

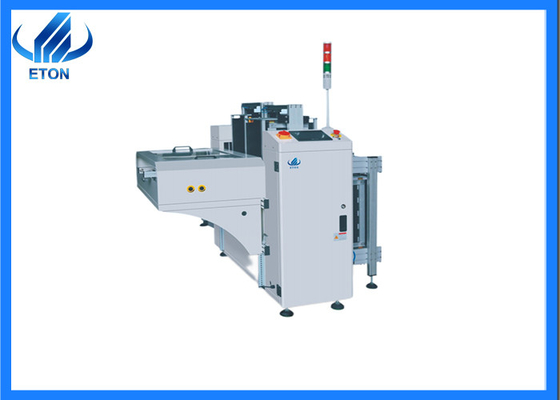

Pneumatic Clamp Structure LED Light Manufacturing Machine ET-L330 SMT Production Machine
Loader principle
Used for the SMT production line [frist step],
In response to the requirements of the Follow-SMT equipment's demand for pcb movement, Move PCB stored in the turnover box to the production line one by one. After the PCB boards in the turnover box are all transferred, the empty turnover box is automatically downloaded and replaced by a full-load turnover box.
Loader’s parameters
| Item |
ET-L330 send board machine |
| Dimension |
L1400*W860*H1200±30mm |
| Frame |
Special aluminum profile guide rail and special thousand bird type plastic chain |
| Lift |
90W Taiwan brake motor drive uses ball screw to make Magazine stepping up and down |
| Transmission motor |
Taiwan 15W fixed speed motor |
| Structure |
Pneumatic clamp structure |
| Magazine Specifications |
L460*W400*565mm |
| Maximum size of PCB |
L450*W330 |
| Direction |
Right to left / left to right |
| Lift platform pitch selection |
10,20,30,40 |
| Transmission height |
H=920±30 |
| Controller |
Mitsubishi PLC programmable controller |
| Function |
Automatically send board |
| Operation control panel |
Display control true color touch screen |
| Pneumatic Components |
Push plate cylinder position, adjusted by screw |
| power supply |
220V 50HZ |
| No. of Full load storage board |
50 PCS |
| Gas source |
0.4-0.6MPa |
| Electric control box |
1 set |
The FAQ
1) This is the first time I use this kind of machine, is it easy to operate?
There is english manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment. And 100% quality check before shipping.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* Visit our Factory.
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
