Product Details:
Payment & Shipping Terms:
|
| Name: | Stencil Printer | Brand: | ETON |
|---|---|---|---|
| Warranty: | 1 Year | PCB Min Size: | 80X50mm |
| PCB Max Size: | 1200X350mm | PCB Thickness: | 0.4~6mm |
| PCB Warpage: | ＜1% | Squeegee Pressure: | 0~15Kg |
| High Light: | smt pick and place machine,smt pick and place equipment |
||
Full Automatic Smt Stencil Printers / Pcb Screen Printing Machine / Solder Paste Printer

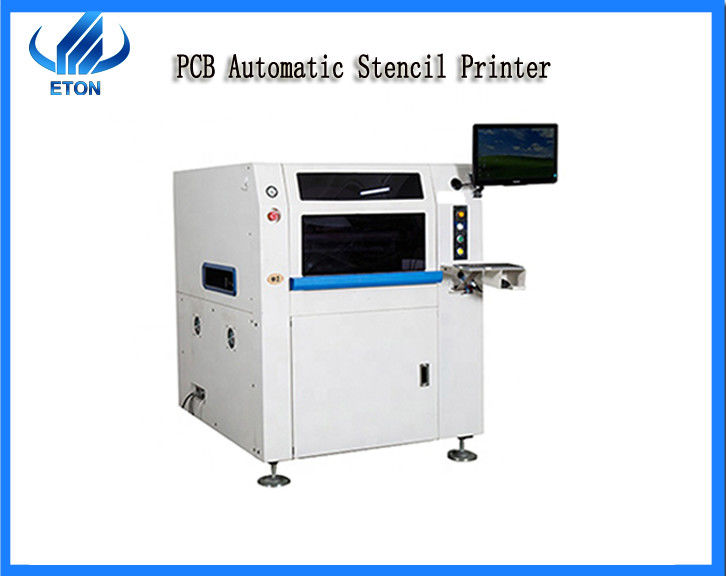

ET-F1200 Automatic stencil printer
The necessary equipment in smt line
Solder paste printing machine is the necessary equipment for producing solder paste for printed circuit board in SMT production. Solder paste printing machine can be divided into semi-automatic and fully automatic and manual. Commonly, the solder paste printing machine is called automatic solder paste printing machine. The solder paste press optimizes the entire solder paste printing at high speeds and is extremely fast.
ET-F1200 parameter
|
Item |
ET-F1200 | ||
| Screen Frames | Min Size | 737X300mm | |
| Max Size | 1500X750mm | ||
| Thickness | 25~40mm | ||
| PCB Min Size | 80X50mm | ||
| PCB Max Size | 1200X350mm | ||
| PCB Thickness | 0.4~6mm | ||
| PCB Warpage | ＜1% | ||
| Transport Height | 900±40mm | ||
| Transport Direction | Left-Right;Right-Left;Left-Left;Right-Right | ||
| Transport Speed | Max 1500mm/S Programmable | ||
| Board Location | Support System | Magnetic Pin/Up-down table adjusted/supportblock by hand |
|
| Clamping System | side clamping,vacuum nozzle | ||
| Squeegee Speed | 6~200mm/sec | ||
| Squeegee Pressure | 0~15Kg | ||
| Squeegee Angle | 60°/55°/45° | ||
| Squeegee Type | Stainless steel(Standard), plastic | ||
| Stencil Separation Speed | 0.1~20mm/sec Programmable | ||
| Cleaning System | Dry,Wet,Vacuum (Programmable) | ||
| Table Adjustment ranges | X:±10mm;Y:±10mm;θ:±2° | ||
| Repeat Position Accuracy | ±0.015mm | ||
| Printing Accuracy | ±0.03mm | ||
| Cycle Time | <12s (Exclude Printing & Cleaning) | ||
| Product Changeover | <5Min | ||
| Air Required | 4.5~6Kg/cm2 | ||
| Power Input | AC:220±10%,50/60HZ 1Φ 3KW | ||
| Control Method | PC Control | ||
| Machine Dimensions | 2200(L)X1200(W)X1500(H)mm | ||
| Machine Weight | Approx:1500Kg | ||
The fully automatic printing press features
First: the solder paste printing machine is designed to be more intelligent and simple, eliminating the complicated operation procedures of the previous ones and allowing one-button operation. The speed can also be adjusted freely. You can think fast and fast, and slow down slowly. At the same time, the angle of the scraper can be adjusted at will, so that the all-round experience makes you more convenient to operate!
Second: There is a good screensaver design. This avoids the use of screen damage that has been used for too long. This function can also adjust the usage time by itself, which improves the use time of the touch screen to the greatest extent;
Third: Through the internal system adjustment, the form of unidirectional printing and bidirectional printing can be adjusted. At the same time, it can also adjust a number of printing forms, thus avoiding the single printing form, thus catering to the needs of a variety of printing modes, and can cope with each printing demand. The solder paste printing machine fully reflects the business from this point. Ability.
