Brand: ETON Name: Stencil Printer
Module: ET-F1500 Squeegee Speed: 6~200mm/sec
Squeegee Pressure: 0~15Kg Squeegee Angle: 60°/55°/45°
High Light:

smt pick and place machine

,

smt pick and place equipment

Smt Printer Smt Semi Automatic Pcb Printer Automatic Solder Paste Printer

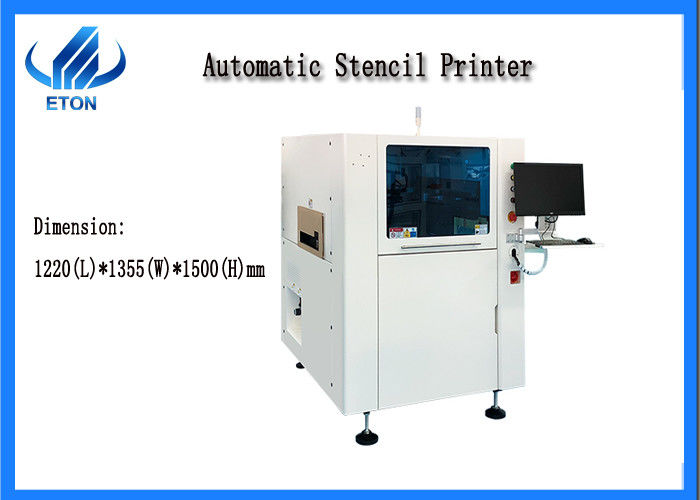

ET-F1500 automatic stencil printer



The basic process common to automatic solder paste printing machine and semi-automatic solder paste printing machine, automatic solder paste printing machine theoretical single board printing cycle time: 11S + printing travel time.



Working mode



Using metal scraper, steel mesh, PCB fixed by vacuum suction. The optical positioning point (MARK point) of the substrate and the stencil on the workbench is centered by the printer camera, and the substrate and the stencil are finely adjusted to completely overlap the substrate land pattern and the stencil opening pattern.



Substrate processing function



The substrate processing machine includes transport transport, positioning, and support of the PCB substrate.

Transmission and transportation refers to the movement of the PCB into and out of the PCB and the small movement back and forth before the PCB is fixed.

The positioning of the substrate is divided into two types: hole positioning and edge positioning, and optical positioning to correct the position to ensure accurate position. The support of the substrate is to maintain a flat surface of the printed PCB so that the PCB substrate does not deform and distort during the printing process. The methods used include support PIN, support block and support plate. Supporting PIN is more flexible and less restrictive. It is more commonly used at present; support blocks and support plates are more limited, and are generally used in single-sided processes.



ET-F1500 is automatic stencil printer



ET-F1500 is suitable for smt production line, it is max pcb size is 1500*350 mm, suitable for most of pcb products.



Screen frames



Screen Frames Min Size 1100X300mm
Max Size 1800X750mm
Thickness 25~40mm



Squeegee



Squeegee Speed 6~200mm/sec
Squeegee Pressure 0~15Kg
Squeegee Angle 60°/55°/45°
Squeegee Type Stainless steel(Standard), plastic



PCB



PCB Min Size 80X50mm
PCB Max Size 1500X350mm
PCB Thickness 0.4~6mm
PCB Warpage <1%



Transport



Transport Height 900±40mm
Transport Direction Left-Right;Right-Left;Left-Left;Right-Right
Transport Speed Max 1500mm/S Programmable



Board location



Board Location Support System Magnetic Pin/Up-down table adjusted/supportblock
by hand
Clamping System side clamping,vacuum nozzle
