| Place Of Origin: | China | Warranty: | 1 Year |
|---|---|---|---|
| Dimension: | 1650*2000*1550 Mm | Total Weight: | 2800kg |
| System: | Windows7 | Software: | R&D Independently |
| Visual Camera: | 4 Sets Of Imported Camera | Power: | 380 AC 50 HZ |
| Power Consumption: | 8KW | PCB Length Width: | Max 500*300mm Min 100*100mm |
| PCB Thickness: | 0.5~3mm | ||
| High Light: | smt pick and place machine,smt pick and place equipment |
||

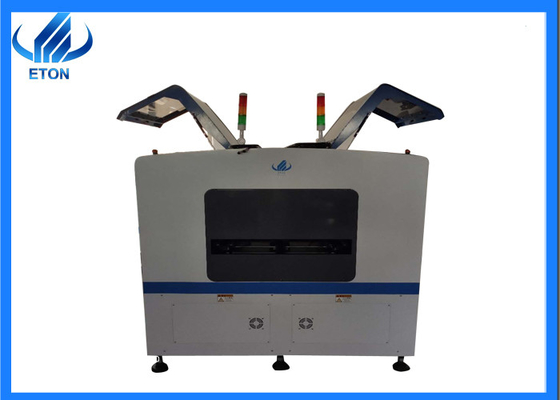

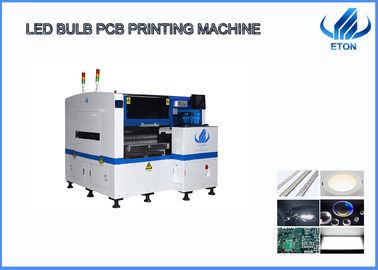

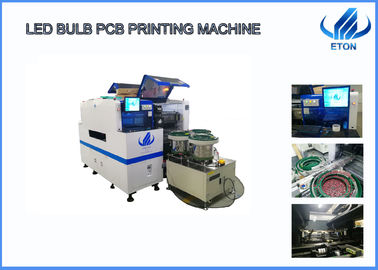

Double module magnetic linear motor multifunctional pick and place machine
| HT-E5D | ||
| PCB | PCB length width | Max:500*300mm min:100*100mm |
| PCB thickness | 0.5~3mm | |
| PCB clamping | Electric clamping + Adjustable pressure pneumatic | |
| Mounting mode |
ØGroup to picking and separate to placing ØSeparate to picking and separate to placing |
|
| O.S. | system | Windows 7 |
| software | R&D independently | |
| display | Touch screen monitor | |
| Input device | Keyboard , mouse | |
|
Vision system |
No.of camera |
2sets of imported camera Vision for the alignment identification,mark correction |
| Mounting precision | 0.02mm(repeat precision) | |
| Mounting height | <36mm | |
| Mounting speed | 80000CPH | |
| Components space | 0.2mm | |
| Power | 380AC 50HZ | |
| Power consumption | 8KW | |
| Conveyor transmission | Max length:500mm | |
| Transmission speed | >500mm/sec | |
| Transmission direction | Both direction | |
| Transmission mode | Auto online drive | |
| Air pressure | >5.0kg /cm² | |
| Electrical control | Independent research and development by ETON | |
| X,Y,X axis drive way | High-end magnetic linear machine + Servo motor control for X,Y,Z axis | |
| Feeding way | ||
| Feeding system | No.of feeders station | Duel mode.totally 60 |
| No.of nozzles | Dual mode.totally 16 | |
| Feeding way | Electric feeder with double motor | |
