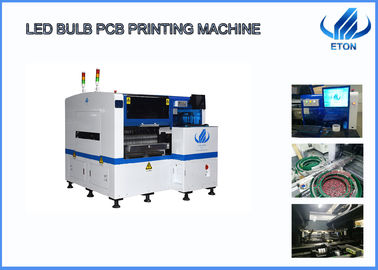

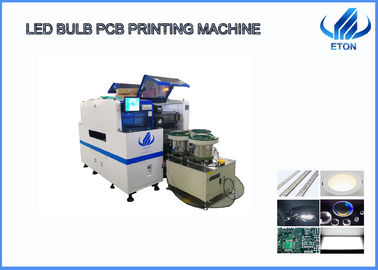

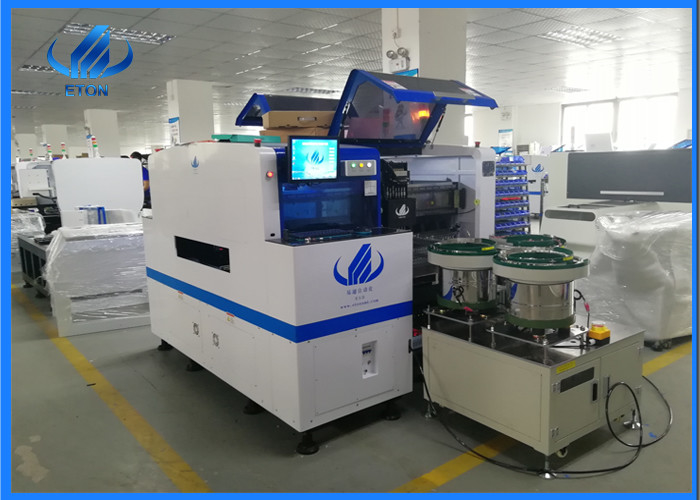

Product Details:
Payment & Shipping Terms:
|
| Name: | Pick And Place Machine | Warranty: | 1 Year |
|---|---|---|---|
| Power: | 380 AC 50 HZ | Dimension: | 1650*2000*1550 Mm |
| System: | Windows7 | Software: | R&D Independently |
| Visual Camera: | 4 Sets Of Imported Camera | Power Consumption: | 8KW |
| Total Weight: | 2800kg | PCB Length Width: | Max 500*300mm Min 100*100mm |
| PCB Thickness: | 0.5~3mm | ||
| High Light: | smt pick and place machine,smt pick and place equipment |
||
led light making machine Electronic Products Machinery Visual camera smart feeder
Advantages
1.led light therapy machine with 2 sets of imported cameras, synchronously recognize, effectively ensure mounting speed and precision.vision for the flight identification,mark correction.
2. led light therapy machine with Dual system,dual module multifunctional mounter.to produce two different products at same time.
3. led light therapy machine with XY drive uses imported high-precision grinding ball screw rod + imported heavy-duty linear guide, quick positioning, low noise, high precision.
4. led light therapy machine with Servo Motor and Drive and precise linear guide,high-precise nozzles, automatic feeding integrated system , strong stability, promise 24-hour mounting stably.
Applications
| HT-E5D led facial machine | ||
| PCB | PCB length width | Max:500*300mm min:100*100mm |
| PCB thickness | 0.5~3mm | |
| PCB clamping | Electric clamping + Adjustable pressure pneumatic | |
| Mounting mode |
ØGroup to picking and separate to placing ØSeparate to picking and separate to placing |
|
| O.S. | system | Windows 7 |
| software | R&D independently | |
| display | Touch screen monitor | |
| Input device | Keyboard , mouse | |
|
Vision system |
No.of camera |
2sets of imported camera Vision for the alignment identification,mark correction |
| Mounting precision | 0.02mm(repeat precision) | |
| Mounting height | <36mm | |
| Mounting speed | 80000CPH | |
| Components space | 0.2mm | |
| Power | 380AC 50HZ | |
| Power consumption | 8KW | |
| Conveyor transmission | Max length:500mm | |
| Transmission speed | >500mm/sec | |
| Transmission direction | Both direction | |
| Transmission mode | Auto online drive | |
| Air pressure | >5.0kg /cm² | |
| Electrical control | Independent research and development by ETON | |
| X,Y,X axis drive way | High-end magnetic linear machine + Servo motor control for X,Y,Z axis | |
| Feeding way | ||
| Feeding system | No.of feeders station | Duel mode.totally 60 |
| No.of nozzles | Dual mode.totally 16 | |
| Feeding way | Electric feeder with double motor | |
Packaging and Delivery
Shenzhen ETON Automation Equipment Co. LTD. is a leading manufacturer of automatic high-speed pick and place machine focusing on “High efficiency Low consumption” in the word, meanwhile ETON is also the largest high-tech manufacturer in China with strong capability of design, R&D, manufacturing, sales and service, and rated as “Shenzhen high-tech enterprise” “China high-tech enterprise” “Shenzhen top brand” “2019 LED Technology innovation Award” “The 4th China LED First Innovation Award” “Industry Special Contribution Award” “Double soft enterprise” etc.
Certificate of honor
ETON advanced technology and innovation drives the revolution of market rapidly ,and obtains a number of intellectual property technologies.and rated as “shenzhen high-tech enterprise” “china high-tech enterprise” “shenzhen top brand” “2015 LED technology innovation award” “the 4th China LED first innovation award”.
Before services
1) Professional sales manager of LED SMT machine, provide professional suggestion and service to you !
2) 24 hours online service and technical support, solve your questions quickly!
3) Sound company organization and working system, guarantee you a fast delivery!
4) Design and provide the whole SMT processing lines for you based on your budget , workshop covering area with best prices!
After-sale Service
we will send our engineer to your factory to install machine and training freely.
We have service office in india,and have indian engineer in delhi and mumbai.Can support quickly.
Standard warranty is one year,during warranty,any parts need to be repaired and replaced will be free.
Remarks
1.Payment terms: Deposit 30% in advance,the balance 70% should be paid before shipment by T/T.
2.Delivery time: 30 days after deposit.
3.Warranty: 1 year.(including spare parts)
1.What’s the terms of payment? What about the trade term?
T/T is OK. You can choose FOB Shenzhen.
2.What is the delivery date?
We will deliver the goods after 30 days' deposit.
