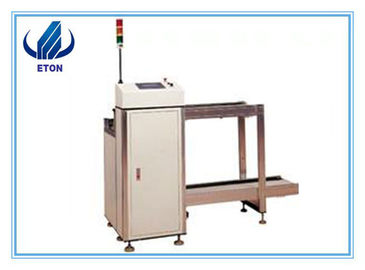

ET-L390 New Condition LED Making Machine L1500*W920*H1200mm Dimension

ET-L390 New Condition LED Making Machine L1500*W920*H1200mm Dimension
ET-L390 New Condition LED Making Machine L1500*W920*H1200mm Dimension ET-L390 New Condition LED Making Machine L1500*W920*H1200mm Dimension

Large Image :  ET-L390 New Condition LED Making Machine L1500*W920*H1200mm Dimension

Product Details:
Place of Origin: CHINA
Brand Name: ETON
Certification: CE
Model Number: ET-L390
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 3000-4000USD
Packaging Details: Wooden box
Delivery Time: 15 days
Payment Terms: T/T, Western Union
Supply Ability: 100 Units/ Per Month
Contact Now
Detailed Product Description
Condition: New Name: PCB Send Board Machine
Product Name: ET-L390 Length: 1500MM
Power Supply: 220V 50Hz Brand: Eton
Highlight:

led chip making machine

,

led production equipment

LED Automatic SMT PCB Board Send Board Machine ET-L390 New Conditional Machine



What is SMT PCB loader?

PCB Magazine loader for smt assembly line . Board handling equipment for automated assembly of PCBs



The SMT PCB loader parameters

Item ET-L390 send board machine
Dimension L1500*W920*H1200±30mm
Frame Special aluminum profile guide rail and special thousand bird type plastic chain
Lift 120W Taiwan brake motor drive uses ball screw to make Magazine stepping up and down
Transmission motor Taiwan 15W fixed speed motor
Structure Pneumatic clamp structure
Turnover box specifications (L)535*(W)460*(H)565mm
Maximum size of PCB (L)530*(W)390mm
Direction Right to left / left to right
Lift platform pitch selection 10,20,30,40
Transmission height H=920±30
Controller Mitsubishi PLC programmable controller
Function Automatically send board
Operation control panel Display control true color touch screen
Pneumatic Components Push plate cylinder position, adjusted by screw
power supply 220V 50HZ
No. of Full load storage board 50 PCS
Gas source 0.4-0.6MPa
Electric control box 1 set

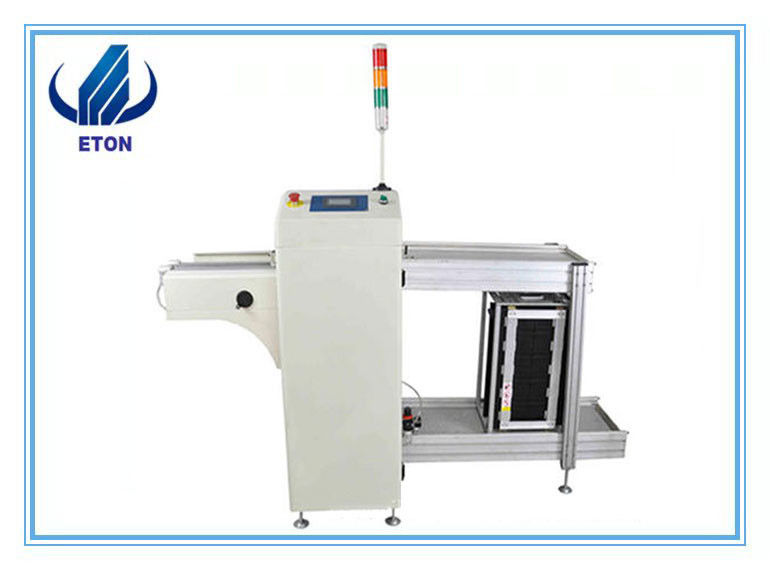

ET-L390 New Condition LED Making Machine L1500*W920*H1200mm Dimension 0























































The FAQ

Q: What we can do for you?

A: Total SMT Machines and Solution, professional Technical Support and Service.



Q: What is your delivery date?

A: The delivery date is about 20 days after receipt of payment.



Q: What is your payment terms?

A: We Accept T/T,L/C, Paypal And Alipay. 30% Deposit And 70% Balance Before Shipping.



Q: Why choose us?

A: Leading SMT Supplier in China; Professional after-sales service team.
