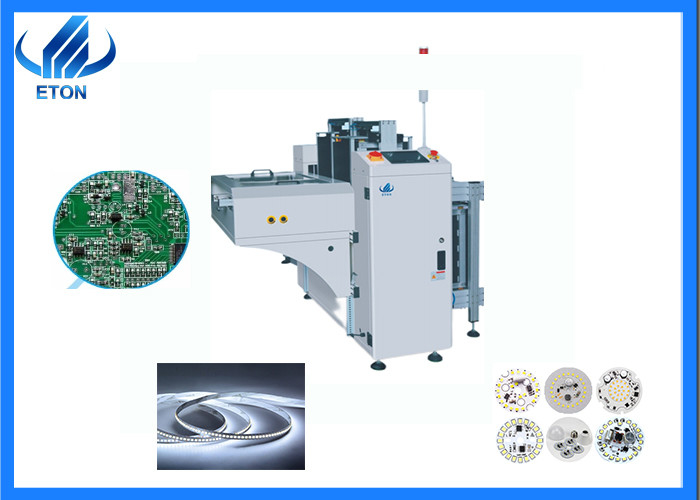

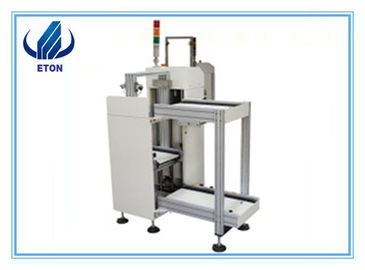

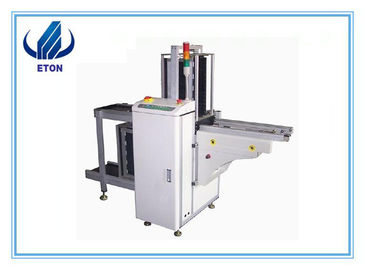

ET-L460 LED Manufacturing Machine , Bulb Making Machine Compact Structure

ET-L460 LED Manufacturing Machine , Bulb Making Machine Compact Structure
ET-L460 LED Manufacturing Machine , Bulb Making Machine Compact Structure ET-L460 LED Manufacturing Machine , Bulb Making Machine Compact Structure ET-L460 LED Manufacturing Machine , Bulb Making Machine Compact Structure

Large Image :  ET-L460 LED Manufacturing Machine , Bulb Making Machine Compact Structure

Product Details:
Place of Origin: CHINA
Brand Name: ETON
Certification: CE
Model Number: ET-L460
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 3000-4000USD
Packaging Details: Wooden box
Delivery Time: 15 days
Payment Terms: T/T, Western Union
Supply Ability: 100 Units/ Per Month
Detailed Product Description
Condition: New Name: PCB Send Board Machine
Product Name: ET-L460 Length: 1600MM
Power Supply: 220V 50Hz Brand: Eton
High Light:

led chip making machine

,

led production equipment

2019 New SMT Machine PCB Send Board Machine CE Certificate Machine ET-L460



Main Features:

  • Modular Design, optional assembly as per client’s requirement.
  • Rugged steel design, improves equipment stability
  • Smooth stainless steel screw to adjust the width of the rail.
  • Variable Speed Control. Multi Function Magazine PCB Buffer
  • Circuit board testing mode. Multi Function Magazine PCB Buffer
  • Using a dedicated aluminum slot for transfer orbit to prevent PCB stuck.
  • Heavier botton design, not easily shift.
  • Machine length can be customized.



Main specifications



Item ET-L460 send board machine
Dimension L1600*W1120*H1200mm
Frame Special aluminum profile guide rail and special thousand bird type plastic chain
Lift 120W Taiwan brake motor drive uses ball screw to make Magazine stepping up and down
Structure Pneumatic clamp structure
0.6M long push plate Conveyor 1 set
Turnover box specifications (L)535*(W)530*(H)565mm
Maximum size of PCB (L)525*(W)460mm
Direction Right to left / left to right
Lift platform pitch selection 10,20,30,40
Transmission height H=920±30
Controller Mitsubishi PLC programmable controller
Function Automatically send board
Operation control panel Display control true color touch screen
Pneumatic Components Push plate cylinder position, adjusted by screw
power supply 220V 50HZ
No. of Full load storage board 50 PCS
Gas source 0.4-0.6MPa
Electric control box 1 set



Main products



SMT PCB loader,

SMT solder paste printer,

SMT conveyor,

SMT pick and place machines,

SMT reflow oven,

SMT unloader,

SMT PCB clean machine,

SMT solder paste mixer,

PCB transfer machine,

SMT vacuum boarder.
