ET-L460 LED Making Machine Intelligent PLC Control System SMEMA Compliant

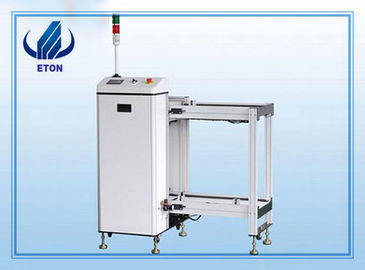

Large Image : ET-L460 LED Making Machine Intelligent PLC Control System SMEMA Compliant

Product Details:

Place of Origin:	CHINA
Brand Name:	ETON
Certification:	CE
Model Number:	ET-L460
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	3000-4000USD
Packaging Details:	Wooden box
Delivery Time:	15 days
Payment Terms:	T/T, Western Union
Supply Ability:	100 Units/ Per Month

Contact Now

Detailed Product Description

Condition:	New	Name:	PCB Send Board Machine
Product Name:	ET-L460	Length:	1600MM
Power Supply:	220V 50Hz	Brand:	Eton
Highlight:	led chip making machine , led production equipment

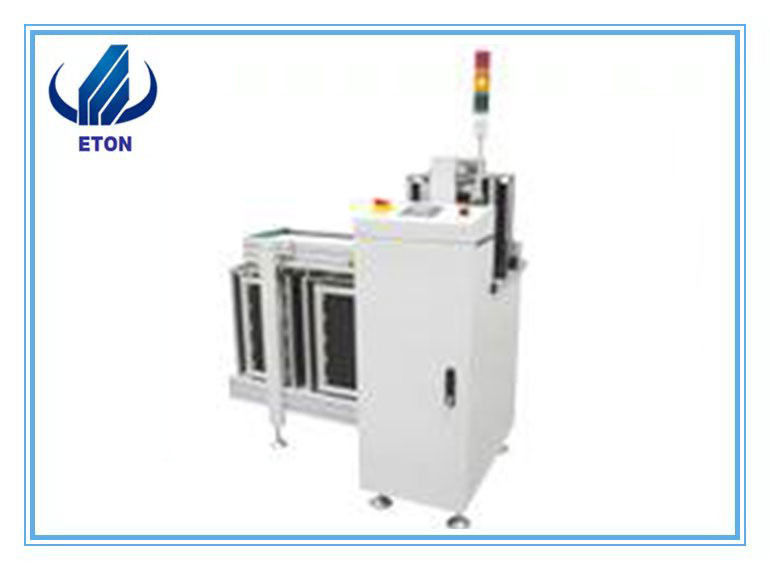

Hot Selling LED SMT PCB Board Loader Machine Send Board Machine ET-L460

Apply

This Multi Magazine Loader PCB Loader is designed for loading of PCBs. The unit loads your production line automatically by pushing PCBs out of a magazine onto the conveyor of the down-stream machine.

Features

1. PLC Control system.

2. Four pitches selections( 10,20,30,40mm).

3. Direction from left to right or right to left(optional).

4. SMEMA compliant.

5. CE certified.

Parameters

Item	ET-L460 send board machine
Dimension	L1600W1120H1200mm
Frame	Special aluminum profile guide rail and special thousand bird type plastic chain
Lift	120W Taiwan brake motor drive uses ball screw to make Magazine stepping up and down
Structure	Pneumatic clamp structure
0.6M long push plate Conveyor	1 set
Turnover box specifications	(L)535(W)530(H)565mm
Maximum size of PCB	(L)525*(W)460mm
Direction	Right to left / left to right
Lift platform pitch selection	10,20,30,40
Transmission height	H=920±30
Controller	Mitsubishi PLC programmable controller
Function	Automatically send board
Operation control panel	Display control true color touch screen
Pneumatic Components	Push plate cylinder position, adjusted by screw
power supply	220V 50HZ
No. of Full load storage board	50 PCS
Gas source	0.4-0.6MPa
Electric control box	1 set
