Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Dimension: | 2700*2450*1530mm |
|---|---|---|---|
| Total Weight: | 1400kg | Power: | 220AC 50HZ |
| System: | Windows7 | Software: | R&D Independently |
| Visual Camera: | 5 Sets Of Imported Camera | Power Consumption: | 5KW |
| PCB Length Width: | Max 1200*330mm Min 80*330mm | PCB Thickness: | 0.5~5mm |
| Mounting Speed: | 100000~150000CPH | ||
| High Light: | smt pick and place machine,smt pick and place equipment |
||

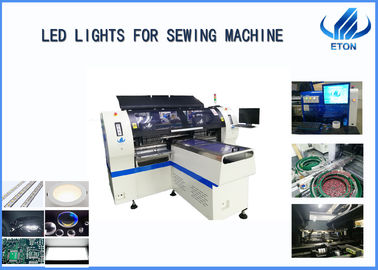

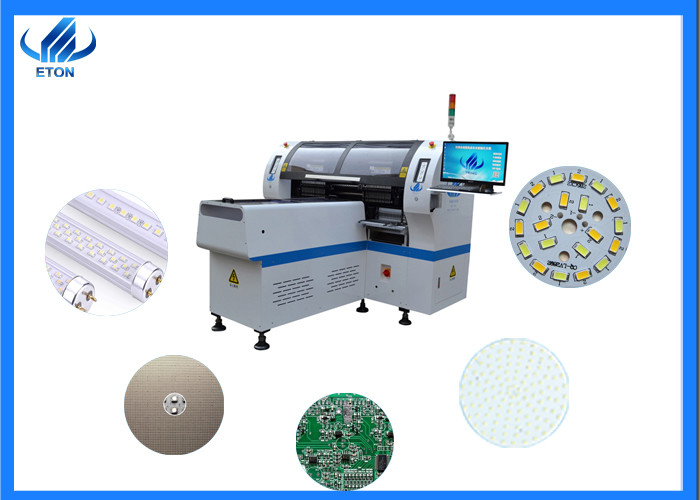

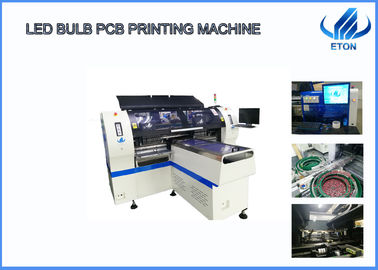

HT-F7 dual purpose professional high speed led bulb making machine ,SMT led pick and place machine
Advantages:
HT-F7 professional high speed led pick and palce machine apply to the 0.6m,0.9m,1.2m rigid PCB and 0.5m,1m LED flexible strip. Mounting components includes LED 3014/3020/3528/5050 and resistors,capacitors,bridge rectifiers.
HT-F7 professional high speed led strip making machine can producing with 2~4 types of materials with high capacity,available for board with any proportion of LED chip and resistors.
HT-F7 led tv panel repair machine with Two mounting modules ,18 nozzles for each mounting part, part A or B can be mounted separately or synchronously.
Exclusive patent technology :group to take and group to mount .
HT-T7 led lamp machine ,XY Axis running mode adopts the imported Linear Guide Rail and Ball Screw to ensure the mounting accuracy within 0.01mm.Linear Guide Rails coordinating with Ball Screw to ensure long-term quick positioning, low noise and high precision.
HT-T7 led lamp machine ,High strength wear-resistant material is adopted, which improves wear-resistant strength, more flexible bending, less resistance, less noise, avoiding the equipment cable distort.
| HT-F7 | ||
| PCB | PCB length width | Max:1200*330mm min:80*330mm |
| PCB thickness | 0.5~5mm | |
| PCB clamping | Adjustable pressure pneumatic | |
| Mounting mode | Group to take and group to mount | |
| O.S. | system | Windows 7 |
| software | R&D independently | |
| display | LED monitor | |
| Input device | Keyboard , mouse | |
|
Vision |
No.of camera |
5 sets of imported camera |
| Mounting precision | 0.02mm(repeat precision) | |
| Mounting height | <15mm | |
| Mounting speed | 100000~150000CPH | |
| Components | LED 3014/3020/3528/5050 and resistors,capacitors ,bridge rectifiers. | |
| Components space | 0.2mm | |
| No.of feeders station | 72PCS | |
| No.of nozzles | 36PCS | |
| Power | 220AC 50HZ | |
| Power consumption | 5KW | |
| Conveyor transmission | Belt drive | |
| Transmission speed | >500mm/sec | |
| Transmission direction | Single (left to right or right or left) | |
| Transmission mode | Auto online drive | |
| Position mode | Optical | |
| Air pressure | >5.0kg /cm² | |
| Electrical control | Independent research and development by ETON | |
| Motion control card module 1set | Independent research and development by ETON | |
| X,Y,X axis drive way | Servo motor control for X,Y,Z axis | |
| Feeding way | Electric feeder with double motor | |
Shenzhen ETON Automation Equipment Co. LTD. is a leading manufacturer of automatic high-speed pick and place machine focusing on “High efficiency Low consumption” in the word, meanwhile ETON is also the largest high-tech manufacturer in China with strong capability of design, R&D, manufacturing, sales and service, and rated as “Shenzhen high-tech enterprise” “China high-tech enterprise” “Shenzhen top brand” “2019 LED Technology innovation Award” “The 4th China LED First Innovation Award” “Industry Special Contribution Award” “Double soft enterprise” etc.
Logistics and delivery
Certificate of honor
ETON advanced technology and innovation drives the revolution of market rapidly ,and obtains a number of intellectual property technologies.and rated as “shenzhen high-tech enterprise” “china high-tech enterprise” “shenzhen top brand” “2015 LED technology innovation award” “the 4th China LED first innovation award.
Before services
1) Professional sales manager of LED SMT machine, provide professional suggestion and service to you !
2) 24 hours online service and technical support, solve your questions quickly!
3) Sound company organization and working system, guarantee you a fast delivery!
4) Design and provide the whole SMT processing lines for you based on your budget , workshop covering area with best prices!
we will send our engineer to your factory to install machine and training freely.
We have service office in india,and have indian engineer in delhi and mumbai.Can support quickly.
Standard warranty is one year,during warranty,any parts need to be repaired and replaced will be free.
1.What’s the terms of payment? What about the trade term?
T/T is OK. You can choose FOB Shenzhen.
2. Choose which mode of transportation?
Our modes of transportation are flexible, including water, land and air transportation.
3. Do you have oversea after sale service?
We can offer technical support abroad. If you have any technical problem, our engineers will support you promptly.
4.This is the first time I use this kind of machine, is it easy to operate?
There is english manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
5. What your main customers?
We have exported machine to different countries,such as India,Egypt,Korea,Turkey,Brazil etc.
Such as FSL,ETI,KONKA,OPPLE,MLS are our client,In india such as RK,Surya,skyquad are our client.
