Product Details:
Payment & Shipping Terms:
|
| Condition: | New | Name: | PCB Send Board Machine |
|---|---|---|---|
| Product Name: | ET-DL | Length: | 1100MM |
| Power Supply: | 220V 50Hz | Brand: | Eton |
| High Light: | led chip making machine,led production equipment |
||

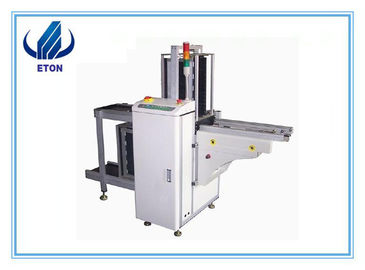

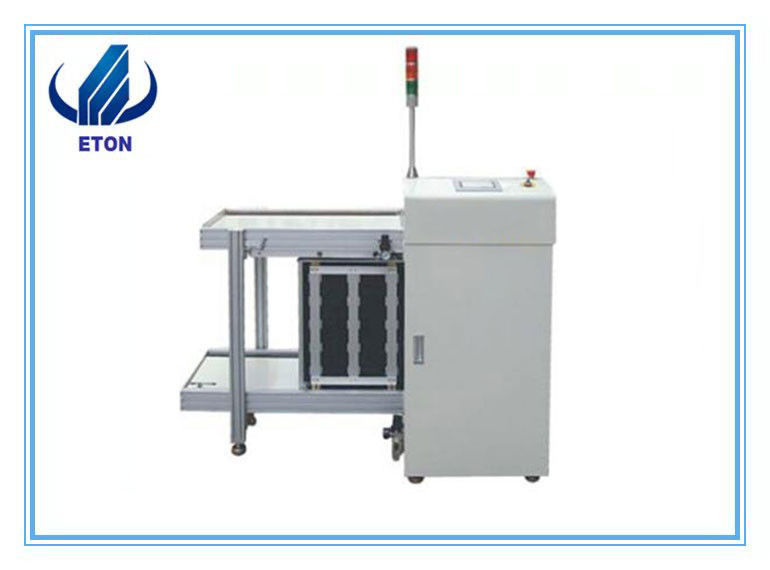

SMT Double Track PCB Send Board Machine ET-DL LED Production Line
Company’s information
Shenzhen Eton Automation Equipment Co., Ltd. is a national high-tech enterprise and a dual-soft enterprise dedicated to the R&D, production, sales and after-sales technical services of SMT high-speed SMT machines.
With the rapid development of the automation industry, Eton has become the leading brand of high-speed SMT machines. The products are exported to more than 20 countries and regions such as Korea, India, Vietnam, Tunisia, Egypt and Turkey.
Parameters of double track loader
| Item | Double track send board machine |
| Dimension | L1100*W1500*H1270mm |
| Frame | Special national standard aluminum profile guide rail and special thousand bird type plastic chain |
| Lift | 90W Taiwan brake motor drive uses ball screw to make Magazine stepping up and down |
| Structure | Yadak pneumatic clamp |
| 0.6M long push plate Conveyor | 1 set |
| Magazine Specifications | (W)320*(L)355*(H)570mm |
| Maximum size of PCB | L330*W250 |
| Direction | Left to right (the orbital distance is specified by the customer and cannot be changed after the specification) |
| Lift platform pitch selection | 10,20,30,40, 50 |
| Operation control panel | Taiwanese joint venture display control touch screen |
| power supply | Single phase 220V 50HZ |
| Gas source | 0.4-0.6MPa |
| Electric control box | 1 set |
The function of double track loader
Loader is to send PCB board to next process solder paste printer machine Double track loader is matched to double track pick and place machine for saving the space.
