| Condition: | New | Name: | Semi-automatic Printer |
|---|---|---|---|
| Product Name: | ET-S1200 | Length: | 1600MM |
| Weight: | 360KG | Power: | 220V 50/60Hz |
| Highlight: | solder paste stencil printer,semi auto screen printer |
||

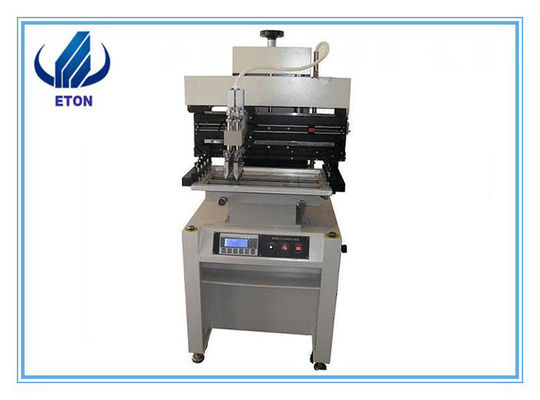

LED Tube Light PCB SMT Stencil Printer Machine ET-S1200 CE Certificate Machine
What is semiautomatic printer?
The semi-automatic screen printing machine is divided into 1/2 automatic and 3/4 automatic. The 1/2 automatic printing frame and the squeegee are driven by the motor, and the substrate is manually fed and received. 3/4 automatic screen printing machine The printing frame and the squeegee are driven by the motor, and the substrate is manually fed, and the charging becomes automatic.
Semi-automatic screen printing machines have several main components: automatic landing frame fixing, automatic running squeegee fixing, printing platform with vacuum system and material feeding guide system.
What is the trend of SMT process status?
At present, the competition among various industries in the world is becoming more and more fierce, and the cost pressure is relatively large. The SMT industry technology has already demonstrated its system integration in fully automatic intelligent, assembly, logistics and other functions. With the advancement of science and technology, the degree of automation of SMT technology has become higher and higher, labor costs have been greatly reduced, and personal output has increased a lot. The main theme of SMT technology development in the future will be to develop high performance, flexibility, ease of use and environmental protectection.
The parameters of semi-automatic printer machine.
| Printing area | 1200*250mm |
| Plate Area | 1250*300mm |
| Stencil frame size | 470×370 mm～1300×550 mm (L×W) |
| Positioning way | positioning pin |
| Scraper Speed | 0-100 mm/sec |
| Power: | 220V single phase, 50/60 HZ |
| Power Consumption | 120 W |
| PCB plate thickness | 0.2-2.0 mm |
| Plate Trimming | Front/back +/- 10mm Right/Left +/- 10mm |
| Printing Precision | +/- 0.05 mm |
| Air supply | 5-7 KGF/cm2 |
| Weight | 360 kg |
| Dimension | (L)1600 x(W)900 x(H)1650 mm |
