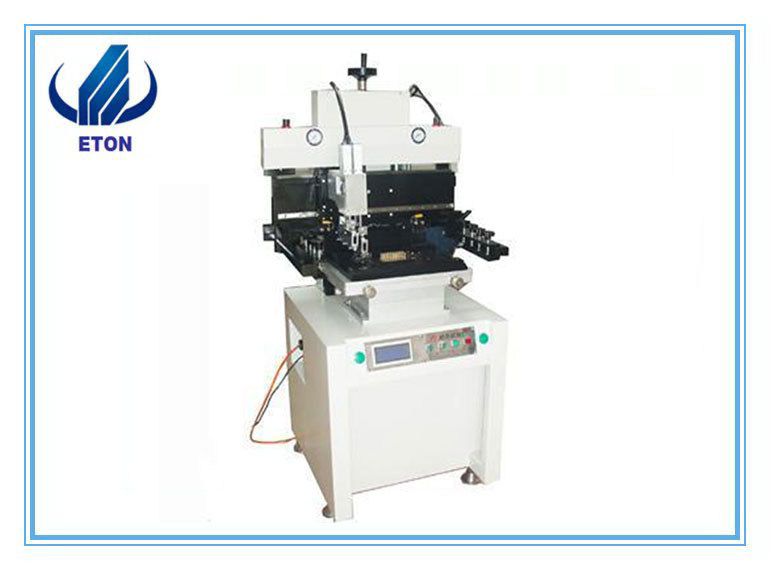

Long PCB SMT Solder Paste Printer Machine Semi-automatic Printer ET-S1200
What is SMT production line?
The SMT production line is mainly composed of a printing machine, a docking station, a placement machine, a docking station and reflow soldering. Mainly used for assembly of various PCB boards.
The introduction of printer machine.
Modern solder paste printing machines are generally composed of plates, tin paste, embossing, and transmission boards. Its working principle is: firstly, the circuit board to be printed is fixed on the printing positioning table, and then the solder paste or the red glue is printed on the corresponding pad through the steel mesh by the left and right scrapers of the printing machine, and the PCB which is uniformly printed is passed through. The transfer station is input to the placement machine for automatic placement.
What is semi-automatic printer?
The semi-automatic screen printing machine is divided into 1/2 automatic and 3/4 automatic. The 1/2 automatic printing frame and the squeegee are driven by the motor, and the substrate is manually fed and received. 3/4 automatic screen printing machine The printing frame and the squeegee are driven by the motor, and the substrate is manually fed, and the charging becomes automatic.
Semi-automatic screen printing machines have several main components: automatic landing frame fixing, automatic running squeegee fixing, printing platform with vacuum system and material feeding guide system.
The parameters of semi-automatic printer machine ET-S1200.
|Stencil frame size||470×370 mm～1300×550 mm (L×W)|
|Positioning way||positioning pin|
|Scraper Speed||0-100 mm/sec|
|Power:||220V single phase, 50/60 HZ|
|Power Consumption||120 W|
|PCB plate thickness||0.2-2.0 mm|
|Plate Trimming||Front/back +/- 10mm Right/Left +/- 10mm|
|Printing Precision||+/- 0.05 mm|
|Air supply||5-7 KGF/cm2|
|Dimension||(L)1600 x(W)900 x(H)1650 mm|
