Product Details:
Payment & Shipping Terms:
|
| Module: | ET-S1200 | Brand: | ETON |
|---|---|---|---|
| Printing Precision: | ±0.05mm | Weight: | 360kg |
| Printing: | 1.2*0.25 M | Power consumption: | 120 W |
| High Light: | smt pick and place machine,smt pick and place equipment |
||

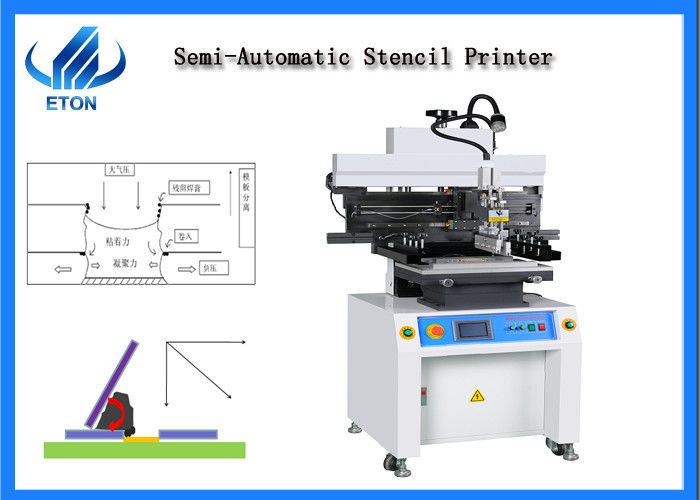

Smt Semi Automatic Stencil Printer / Smt Led Production Line Pcb Stencil Screen Printer With Ce Certificate
ET-1200 Semi-automatic stencil printer
Application:
Semi-automatic stencil printer is used in electronics production lines.
Features:
1. pneumatic version of the device, so that the speed and height of the plate can be adjusted.
2. PLC computer circuit control, can be modified according to customer requirements, high automation program control.
3. The printing platen adopts electric drive in and out, cooperates with Taiwan's first brand LM worm gear deceleration and Japanese brake brake control, and the positioning is accurate and fast.
4. Vertical lifting with worm gear shifting all-electric drive up and down, stable and durable, eliminating the influence of vibration on the upper and lower sides of the pneumatic. The left and right printing adopts the synchronous adjustment speed of the daily linear guide rail, supplemented by photoelectric switch to control the positioning, fast speed, accurate positioning and saving air pressure consumption. the amount.
Technical parameter:
Semi-automatic ET-S1200 length 1.6 m, width 0.9 m, height 1.65 m, can printing 1.2*0.25 m, plate area is 1.25*0.3 m, total weight:360 kg.
PCB plate thickness is 0.2-2.0 mm
Printing precision is ±0.05mm
Plate trimming is front/back+/-10mm right/left+/-10 mm
Air aupply is 5-7 kgf/cm2
Power is 1PAC220V 50/60HZ
Power consumption is 120 w
Stencil frame size is 470*370 mm-1300*550 mm
Positioning way is Positioning pin
Scraper speed is 0-100mm/sec
Company:
Shenzhen ETON Automation Equipment Co. LTD. is a leading manufacturer of automatic high-speed pick and place machine focusing on “High efficiency Low consumption” in the word.
We are manufacture of pick and place machine
We provide an smt production line, specifically in led lighting mounter machine
We have office in India Delhi and Mumbai.
We have our professional service department which can support quickly and professional.
We will according customer’s plan to give the best suggestions and as much as possible to satisfied customer’s need.
