Product Details:
Payment & Shipping Terms:
|
| Condition: | New | Name: | Solder Paste Mixer |
|---|---|---|---|
| Product Name: | Solder Paste Mixer | Type: | Automatic |
| Function: | PCB Prototype Smt Production Line | ||
| High Light: | led chip making machine,led production equipment |
||

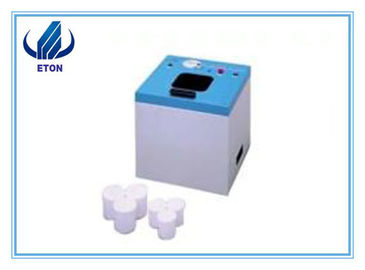

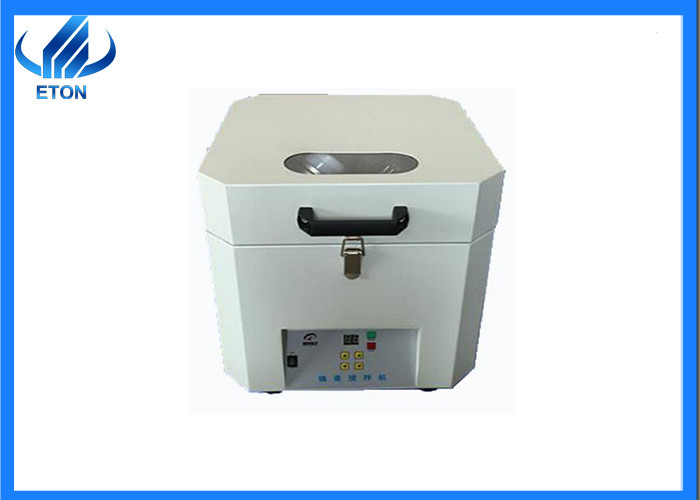

The features of solder paste mixer
1. 0 maximum speed can reach 1000 rpm
1.1 When stirring, it is necessary to de-ice the solder paste beforehand;
1.2 do not have to open the container;
1.3 power single phase 220v:
1.4 No gas problem:
1.5 does not destroy the shape of tin powder:
1.6 fixtures are suitable for all kinds of 500g packaging solder paste cans;
1.7 mixing time can be set arbitrarily;
1.8 has manual speed control function
The solder paste mixer operating procedures and precautions
1 Operation steps
1.0 After commissioning, open the top cover of the machine and check that there
are no foreign objects inside the machine.
1.1 Turn the angle of the solder paste fixture of the machine and place the solder
paste jar to be stirred into the machine. Inside the fixture.
1.2 Please turn the solder paste can by hand to confirm that there will be no collision,
and the top cover of the machine Close and turn on the power switch.
1.3 Adjust the time setting time on the panel to the better mixing time, depending on
the solder paste label difference.
1.4 After the start switch is pressed, the running indicator lights. The machine starts
to automatically stir at high speed. The machine stops automatically until it is completed.
1.5 After the operation is completed, the operation stops, and the display shows the actual
mixing time. Determine the machine. After the operation stops, open the upper cover and
remove the solder paste can on the clamp.
The evenly mixed solder paste can be used.
1.6 To stop the machine running during operation, press the power switch key to stop and
cancel the operation.
1.7 Open the top cover of the machine during operation, the machine will automatically stop
running, and the upper cover will be covered. To continue the mixing operation, press the start switch again.
1.8 After the production quantity is completed, turn off the power switch;
2 Precautions
2.0 After the production runs, to open the top cover of the machine, you must wait until the
machine has completely stopped before opening:
2.1 The solder paste can or the weight on the two fixtures on the left and right sides, the
weight difference can not exceed 100 Gram. Otherwise, it will cause the machine to shake
when it is stirred at high speed. Please try to avoid;
The parameters of solder paste mixer
| Dimension | 400x400x420mm |
| Weight | About 35KG |
| Operating Voltage | AC 220V 50Hz 60Hz >60W |
| Operating speed | Motor 1350 RPM revolution: 1000RPM Rotation: 500PRM |
| Working capacity | 500 g. Syringe, red plastic tube, etc. the fixture can be customized. |
| Stir two cans of solder paste at the same time | 500g |
| Stiring time | 1-99 minute digitally adjustable |
| Operation method | Light touch button for easy operation |
| Fixture function | Universal fixture for all kinds of brand solder paste cans |
| Running noise | Low running noise <20dB |
