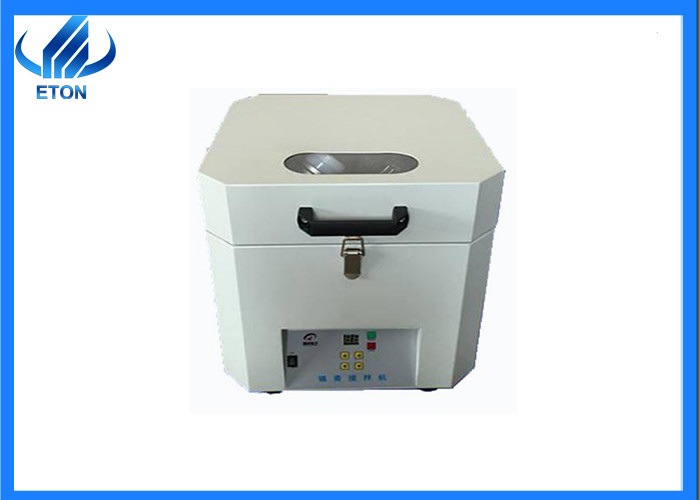

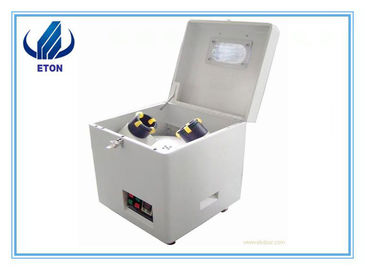

Digital SMT Solder Paste Mixer Led Bulb Making Machine 20dB Low Running Noise

Digital SMT Solder Paste Mixer Led Bulb Making Machine 20dB Low Running Noise
Digital SMT Solder Paste Mixer Led Bulb Making Machine 20dB Low Running Noise Digital SMT Solder Paste Mixer Led Bulb Making Machine 20dB Low Running Noise Digital SMT Solder Paste Mixer Led Bulb Making Machine 20dB Low Running Noise

Large Image :  Digital SMT Solder Paste Mixer Led Bulb Making Machine 20dB Low Running Noise

Product Details:
Place of Origin: CHINA
Brand Name: ETON
Certification: CE
Model Number: Solder Paste Mixer
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 15000USD
Packaging Details: Wooden box
Delivery Time: 30 days
Payment Terms: T/T, Western Union
Supply Ability: 100 Units/ Per Month
Detailed Product Description
Condition: New Name: Solder Paste Mixer
Product Name: Solder Paste Mixer Dimension: 400x400x420mm
Weighr: 35KG Operating Voltage: AC 220V 50Hz 60Hz >60W
High Light:

led chip making machine

,

led production equipment

What is solder paste mixer?

The solder paste mixer can effectively stir the tin powder and the solder paste evenly.

Achieve more perfect printing and reflow soldering results, while eliminating manpower

and standardizing this operation, of course, reducing the chance of absorbing water without

opening the can



The features of solader paste mixer

1. 0 maximum speed can reach 1000 rpm

1.1 When stirring, it is necessary to de-ice the solder paste beforehand;

1.2 do not have to open the container;

1.3 power single phase 220v:

1.4 No gas problem:

1.5 does not destroy the shape of tin powder:

1.6 fixtures are suitable for all kinds of 500g packaging solder paste cans;

1.7 mixing time can be set arbitrarily;

1.8 has manual speed control function



The parameters of solder paste mixer

Dimension 400x400x420mm
Weight About 35KG
Operating Voltage AC 220V 50Hz 60Hz >60W
Operating speed Motor 1350 RPM revolution: 1000RPM Rotation: 500PRM
Working capacity 500 g. Syringe, red plastic tube, etc. the fixture can be customized.
Stir two cans of solder paste at the same time 500g
Stiring time 1-99 minute digitally adjustable
Operation method Light touch button for easy operation
Fixture function Universal fixture for all kinds of brand solder paste cans
Running noise Low running noise <20dB
