Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Applicable Components: | Minimu：0402 |
|---|---|---|---|

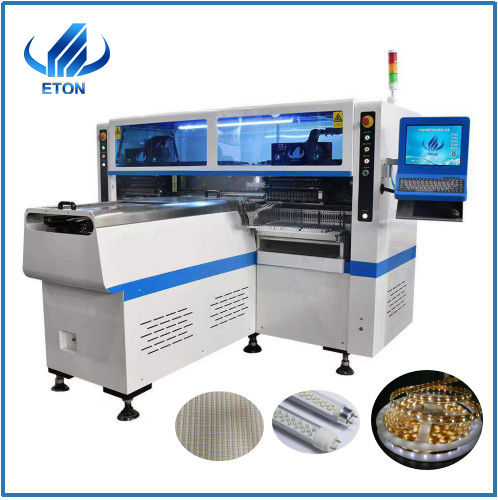

| Name: | SMT Chip Mounter | Condition: | 100% Original,Brand-new |
| Application: | M4 M1 I PULSE SMT Pick And Place Machine | Type: | Automatic |
| High Light: | smt pick and place machine,smt pick and place equipment |
||
Component: Min size 0402 Max height 36mm
Capable for power driver, electric board, lens, linear bulb, household appliance,etc.
Technical parameter
| HT-F9 | |
| Length*Width*Height | 2700*2120*1550mm |
| Total Weight | 1400KG |
| PCB Length Width | Max:1200*330mm |
| PCB Thickness | 0.5~5mm |
| PCB Clamping | Adjustible pressure pneumatic |
| No.of Camera | 5 sets of imported camera |
| Mounting Height | <13mm(Automatic Changing) |
| Mounting Speed | 200000CPH |
| Components | LED,resistor,capacitors,shaped components,etc. |
| No.of Feeders Station | 68PCS |
| No.of nozzles | 68PCS |
| Power | 380AC 50Hz |
| Power Consumption | 6KW |
| X,Y,Z Axis Drive way | High end magnetic linear motor+servo motor |
| Display | Touch screen monitor |
Features
Electronic feeder feeding system
vision alignment flight identification, Mark correction
Auto-optimization after coordinates generated, etc
About us
Shenzhen ETON Automation Equipment Co., Ltd.is a leading manufacturer of pick and place machine focusing on ” High efficiency Low consumption ” in the world. Meanwhile ETON is also the largest high-tech manufacturer in China with stronger capability of design,R&D, manufacturing, sales&service.
We have 8-year experience in SMT machine, with unique understanding of SMT technology, we provide long-term professional services to domestic and foreign electronic company.
With good quality, competitive price, easy operation and energy saving, our products are very popular in domestic and oversea market. And all of our machines are wildly used in electronic circuit, photovoltaic, LED industry, instruments and apparatuses.
Project cases
We would like to provide you a full production line
Both Automatic production line and Semi-auto line
Service
1.Installment and training
We can send our engineer to your factory to install machine and training freely. We have service office in India and indian
2.1 year standard warranty
During the warranty any parts need to be repaired and replaced will be free
3.vacuum wooden case packing
keep the machine in good condition
