Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Name: | SMT Chip Mounter |
|---|---|---|---|
| Application: | SMT Production Line,for SMT Machine | Condition: | New |
| Dimension: | L1100*W1500*H1270mm | Lift Platform Pitch Selection: | 10，20，30，40, 50 |
| High Light: | smt pick and place machine,smt pick and place equipment |
||

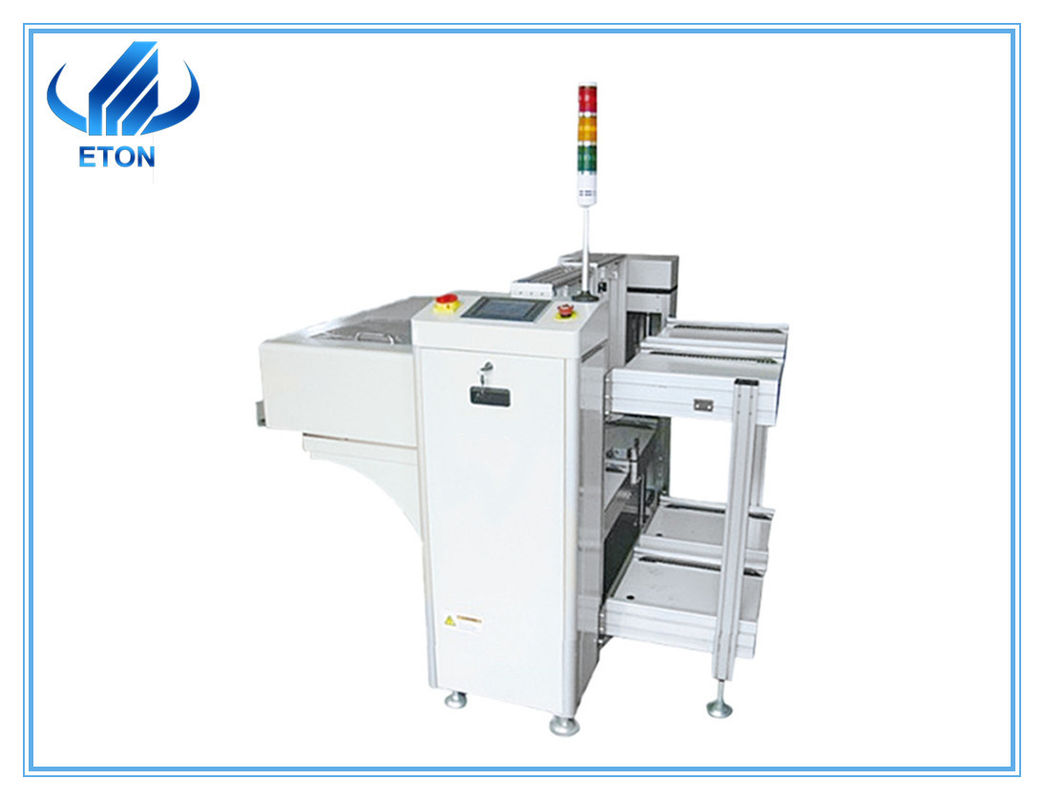

ET-DL send board machine
SMT plate loader features:
Solid and stable sheet metal main frame design,
Effective cylinder push plate design can ensure that PCB board is not broken
Man-machine touch screen operation interface, highly simple man-machine dialogue, easy to operate
Panasonic PLC program control, multifunctional circuit and program design, stable performance, ensure smooth production line, give full play to good productivity
Humanized program design,5 Pitch choices, and Pitch spacing of PCB can be set
Capacity setting, can achieve planned production control (sound and light prompt)
Sound and light prompt alarm system, human-machine interface screen abnormal information prompt, maintenance more simple and convenient
| Item | Double track send board machine |
| Dimension | L1100*W1500*H1270mm |
| Frame | Special national standard aluminum profile guide rail and special thousand bird type plastic chain |
| Lift | 90W Taiwan brake motor drive uses ball screw to make Magazine stepping up and down |
| Structure | Yadak pneumatic clamp |
| 0.6M long push plate Conveyor | 1 set |
| Magazine Specifications | (W)320*(L)355*(H)570mm |
| Maximum size of PCB | L330*W250 |
| Direction | Left to right (the orbital distance is specified by the customer and cannot be changed after the specification) |
| Lift platform pitch selection | 10,20,30,40, 50 |
| Operation control panel | Taiwanese joint venture display control touch screen |
The characteristics of product
The advantage of automatic plate loading machine is that there is no need for special equipment foundation, placed on the hardened flat ground can be used with the plate feeding machine, reduce the labor intensity of the operator, improve the working efficiency, save labor, reduce production cost;The whole machine has no moving cables and electrical components to ensure the personal safety of operators;The whole equipment has the characteristics of simple and reasonable structure, flexible operation, reliable performance and wide application
Before services
1) Professional sales manager of LED SMT machine, provide professional suggestion and service to you !
2) 24 hours online service and technical support, solve your questions quickly!
3) Sound company organization and working system, guarantee you a fast delivery!
FAQ
1) Do you have oversea after sale service?
We can offer technical support abroad. If you have any technical problem, our engineers will support you promptly.
2) How is the training?
After buying our machines, you can send your engineers to our factory, or we send our engineer to your factory, and then we will train your people to operate these machines.
3) It’s hard to use the machine?
No, not at all. For our previous clients, at most 5 days is enough to learn to operate the machines.
4) Does your machines have quality certificates?
We are high-tech enterprise with CE,SIRA,CCC ,ISO awarded as "Well-know brand" and many technology patents, and have rich experience(more than 8 years) in LED light production line program.
5) What’s the termsof payment? What about the trade term?
T/T is OK. You can choose FOB Shenzhen.
