| Name: | SMT Mounting Machine | PCB Thickness: | 0.5~5 Mm |
|---|---|---|---|
| Feeders: | 32 PCS | Heads: | 10 PCS |
| PCB Size: | 1200*350mm | Total Weight: | 1250kg |
| Capacity: | 45000CPH | Camera: | 2 Sets Of Imported Camera |
| High Light: | smt pick and place machine,smt pick and place equipment |
||

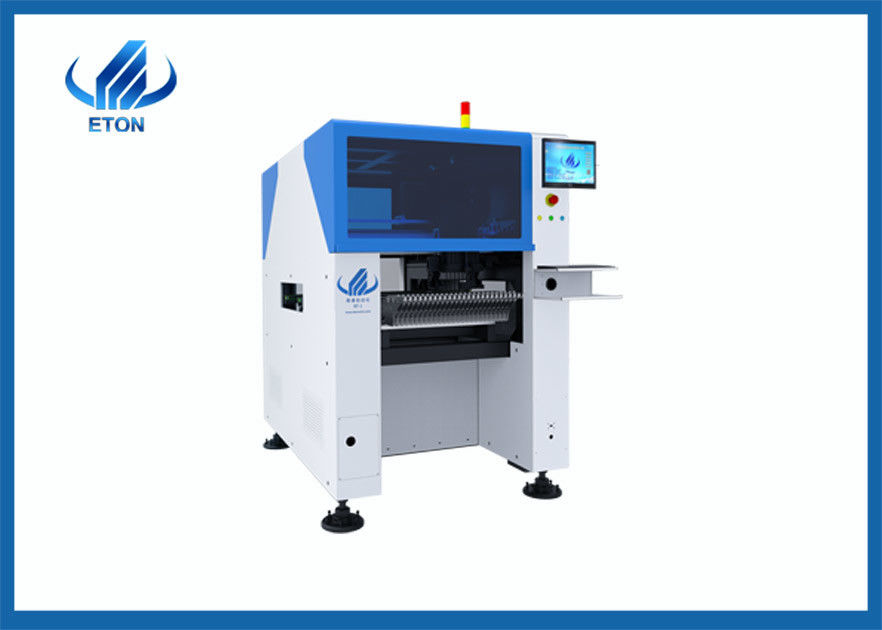

SMT 10 heads R&D vision camera light led make machine
details
1.effectively guarantee the reliability and stability of the placement machine use for a long time.
2. The whole machine adopts precision guide rail, improve the SMT precision.
3. The whole machine adopts high-definition industrial camera, complete visual para pasted on high precision components.
4. Configuration, SMT machine vision system can automatically identify the MARK point,
improve the efficiency and SMT placement machine production precision effectively.
5. Can be automatically visual programmingProgramming is simple, convenient and even beginner is convenient and practical.
6. The machine configuration five suction nozzle. Can prompt by software manual to replace the suction nozzle.
7. Cost-effective automatic placement machine, the most suitable for small and medium scale production,
scientific research and personal use.
The reference configuration
1. Control system: industrial computer + precision motion control card, software system :ETON independently developed operating system
3. Motion motor: magnetic levitation linear motor
4. Nozzle layout: independently develop various types of nozzles
5. Sliding device: precision screw + linear guide rail
6. Visual device: mark point recognition + component recognition + high-precision recognition
7. Feeder: adopt precise electric feeder
technical parameter
| RT-1 | ||
| PCB | PCB length width | Max:400*350mm min:50*50mm |
| PCB thickness | 0.1~6mm | |
| PCB clamping | Electric clamping | |
| Mounting mode |
ØGroup to pick and separate to place ØSeparate to pick and separate to place |
|
| O.S. | system | Windows 7 |
| software | R&D independently | |
| display | Touch screen monitor | |
| Input device | Keyboard , mouse | |
|
Vision system |
No.of camera |
2 sets of imported camera Vision alignment ,mark correction |
| Mounting precision | 0.02mm(repeat precision) | |
| Mounting height | <25mm | |
| Mounting speed | 30000~35000CPH | |
| Components space | 0.2mm | |
| Power | 380AC 50HZ | |
| Power consumption | 6KW | |
| Conveyor transmission | Max length:500mm | |
| Transmission speed | >1500mm/sec | |
| Transmission direction | Single | |
| Transmission mode | Auto online drive | |
| Air pressure | >5.0kg /cm² | |
| Electrical control | Independent research and development by ETON | |
| X,Y,X axis drive way | Servo motor control for X,Y,Z axis | |
| Feeding way | ||
| Feeding system | No.of feeders station | 26 PCS |
| No.of nozzles | 8 PCS | |
| Feeding way | Electric feeder with double motor | |
Packaging & Delivery
Packing Details :Plywood case, for export!
Port:Shenzhen
Delivery Details : 25-30days
After the completion of the machine, the fuselage shall be protected and wrapped with plastic film to avoid damage caused by collision of goods during export transportation.
We will measure the size of the machine customized by the customer, then customize a wooden box, so that the machine and the size of the wooden box are just right.
After the customization of wooden boxes, we use wooden boxes for export, wooden boxes are strong, suitable for export machinery and other heavy objects, to protect them
Our products from the production to packaging to transportation, have strict quality control, use high-quality materials, make the best products, so that every customer satisfaction.
