Detailed Product Description

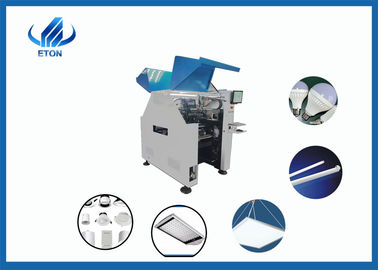

Name: SMT Mounting Machine Feeders: 32 PCS
Heads: 10 PCS PCB Size: 1200*350mm
Capacity: 45000CPH Camera: 2 Sets Of Imported Camera
Display: Touch Screen Monitor Drive Way: Megnatic Linear Motor
High Light:

smt pick and place machine

,

smt pick and place equipment

led capacitor IC middle speed led making machine for lamp rigid strips bulbs



Product Advantages

1.RT-1 pick and place machine : 4 pcs of cameras: 2pc of Mark, and 2 pcs of high-speed recognition cameras, synchronously recognize, effectively ensure mounting speed and precision.

2. RT-1 pick and place machine :XY drive uses imported high-precision grinding ball screw rod + imported heavy-duty linear guide, quick positioning, low noise, high precision.

3.RT-1 pick and place machine :Servo Motor and Drive, precise linear guide, Vacuum generator, high-precise nozzles, automatic feeding integrated system and high-configuration IPC - High precision, strong stability, promise 24-hour mounting stably.

4,RT-1 pick and place machine :New mounting mode: the PCB board is fixed, and the head moves in the direction of XYZ axis. When attaching high components, the stability is improved.





The reference configuration

1. Control system: industrial computer + precision motion control card, software system :ETON independently developed operating system

3. Motion motor: magnetic levitation linear motor

4. Nozzle layout: independently develop various types of nozzles

5. Sliding device: precision screw + linear guide rail

6. Visual device: mark point recognition + component recognition + high-precision recognition

7. Feeder: adopt precise electric feeder



RT-1 modelpick and place machine features ten simultaneous pick-up heads, has been designed for ease of use, efficiency, cost effectiveness and increased expandability and compatibility. Using new, highly efficient linear servomotors, lightening and stiffening the head unit, and reviewing the placement speed of 45000 CPH.

1.effectively guarantee the reliability and stability of the placement machine use for a long time.

2. The whole machine adopts precision guide rail, improve the SMT precision.

3. The whole machine adopts high-definition industrial camera, complete visual para pasted on high precision components.

4. Configuration, SMT machine vision system can automatically identify the MARK point,
improve the efficiency and SMT placement machine production precision effectively.

5. Can be automatically visual programmingProgramming is simple, convenient and even beginner is convenient and practical.

6. The machine configuration five suction nozzle. Can prompt by software manual to replace the suction nozzle.

7. Cost-effective automatic placement machine, the most suitable for small and medium scale production,
scientific research and personal use.

technical parameter

RT-1 pick and place machine
PCB PCB length width Max:400*350mm min:50*50mm
PCB thickness 0.1~6mm
PCB clamping Electric clamping
Mounting mode

ØGroup to pick and separate to place

ØSeparate to pick and separate to place

O.S. system Windows 7
software R&D independently
display Touch screen monitor
Input device Keyboard , mouse

Vision

system

No.of camera

2 sets of imported camera

Vision alignment ,mark correction

Mounting precision 0.02mm(repeat precision)
Mounting height <25mm
Mounting speed 30000~35000CPH
Components space 0.2mm
Power 380AC 50HZ
Power consumption 6KW
Conveyor transmission Max length:500mm
Transmission speed >1500mm/sec
Transmission direction Single
Transmission mode Auto online drive
Air pressure >5.0kg /cm²
Electrical control Independent research and development by ETON
X,Y,X axis drive way Servo motor control for X,Y,Z axis
Feeding way
Feeding system No.of feeders station 26 PCS
No.of nozzles 8 PCS
Feeding way Electric feeder with double motor





Middle Speed Led Making Machine SMT mounting machine For Lamp Rigid Strips Bulbs 0





Middle Speed Led Making Machine SMT mounting machine For Lamp Rigid Strips Bulbs 1

Honour show

ETON advanced technology and innovation drives the revolution of market rapidly ,and obtains a number of intellectual property technologies.

Including 9 invention patents,112practical patents,12 software copyrights.



Packaging & Delivery



Packing Details :Plywood case, for export!

Port:Shenzhen

Delivery Details : 25-30days



After the completion of the machine, the fuselage shall be protected and wrapped with plastic film to avoid damage caused by collision of goods during export transportation.



We will measure the size of the machine customized by the customer, then customize a wooden box, so that the machine and the size of the wooden box are just right.



After the customization of wooden boxes, we use wooden boxes for export, wooden boxes are strong, suitable for export machinery and other heavy objects, to protect them



Our products from the production to packaging to transportation, have strict quality control, use high-quality materials, make the best products, so that every customer satisfaction.
