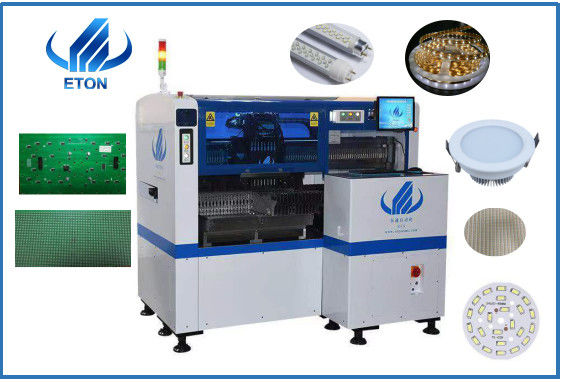

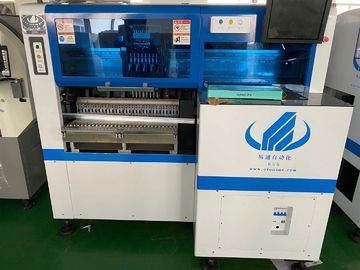

Led Bulbs Tube SMT Mounting Machine Full Automatic 10 Heads Multifunctional

Led Bulbs Tube SMT Mounting Machine Full Automatic 10 Heads Multifunctional
Led Bulbs Tube SMT Mounting Machine Full Automatic 10 Heads Multifunctional Led Bulbs Tube SMT Mounting Machine Full Automatic 10 Heads Multifunctional

Large Image :  Led Bulbs Tube SMT Mounting Machine Full Automatic 10 Heads Multifunctional

Product Details:

Place of Origin: CHINA
Brand Name: ETON
Certification: OI.CIO,CI
Model Number: HT-E5S

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: 40000-50000
Packaging Details: wooden vacuum package
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 50 units per month
Detailed Product Description
Warranty: 1 Year Applicable Components: 0402
Application: SMD Production Line,SMT Mounting Shooter Machine,SMT Production Line Mounting Speed: 40000 CPH
Power Supply: 220V/110V Condition: New
High Light:

smt pick and place machine

,

smt pick and place equipment

HT-E5S

Magnetic linear motor multifunctional pick and place machine



Features:
1.Mount: Mount 0402 to 7272 can meet all specifications of SMD LED components. In addition to all the planar LED plane, other electronic components (such as resistors,capacitors) and high power LED and the lens can be produced;

2.Precise positioning: positioning block is the most convenient way to position the substrate, the origin of counterpoint,accurate positioning (accuracy less than 0.05 mm). Mount angle range of 0-360 degrees, the accuracy of 0.1 degrees. Each suction nozzle is independent of angle, and six element recognition cameras, in addition to LED lamp can mount the traditional., bulb lamp,lamp, ceiling lamp, guardrail tube, LED drive power, copper lamp series and so on can be freely mounted;

3.High precision:X axis is quipped with magnetic linear motor,and Y axis is equipped with precision ball screw and guide rail, Z axis 10 sets of imported motor drive

4.SMT specifications: applicable to the current market of 99% LED products;PCB board can be affixed to various shapes, without clamps;

5.The visual system, visual programming software online programming, which is of high precision digital camera camera, there is no need to manually input elements and positioning coordinates; using visual camera automatic identification, to ensure the accuracy of mount;

Dimension 1650*1200*1570mm
Component height 25mm
PCB length*width 500*350-100*100
Nozzles 8
Feeder stations 30
Placement speed Optimum 45000CPH
Conveyor specification standard


About Us



Shenzhen Eton Automation equipment Co., Ltd.Expert in making customized high quality SMT LED Pick and Place Machine, SMT LED Reflow Oven, SMT LED Stencil Printer, SMT Production Line,LED Assembly Line, SMT LED Machines with more than 15 years experience!Our goal is to provide customers with the best service possible and to produce excellent quality products that will meet or exceed your expectations.

Led Bulbs Tube SMT Mounting Machine Full Automatic 10 Heads Multifunctional 0





Successful Experience:
Eton's customer in 35 countries around the world
1. We have been helping customers to build a lot of new factories around the world.
2. Training more than 500 experts and technician for customers.
3. Became the most reliable Chinese partner for you.

For SMT factory setup,we can do for you:
1. We provide fulL SMT solution for you
2. We provide core technology with our equipments
3. We provide the most professional tech service
4. We have wealthy experience on SMT factory setup
5. We can solve any question about SMT

Delivery and Shipment

Usually wooden vacuum package

Led Bulbs Tube SMT Mounting Machine Full Automatic 10 Heads Multifunctional 1

Led Bulbs Tube SMT Mounting Machine Full Automatic 10 Heads Multifunctional 2



Led Bulbs Tube SMT Mounting Machine Full Automatic 10 Heads Multifunctional 3

Q1:Do you provide software updates?



Customers who buy our machine,we can offer free upgrades software lifetime for you .



Q2:Does our machine need air supply?



We have vacuum pump inside machine , no need air supply .



Q3:This is the first time i use this kind of machine ,is it easy to operate ?



We have English user manual and engineer teach you how to use the machine freely.

Q4:How about the warranty ?



We have 1 year warranty for all other model , life time after-sales support .



Q5:How can i buy machine from you ?



(1)Consult us on line or by e-mail



(2)Negotiate and confirm the final price , shipping , payment method and other terms



(3)Send you the perfroma invoice and confirm your order



(4)Make the payment according to the method put on proforma nvoice



(5)We prepare your order in terms of the proforma invoice after confirming your full payment . And 100% quality check before shipping



(6)Send your order via express or by air or by sea .
