LED Tube light mounting machine LED SMT pick and place machine LED production line

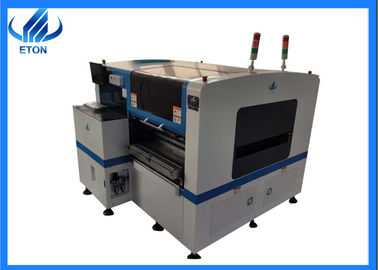

Large Image : LED Tube light mounting machine LED SMT pick and place machine LED production line

Product Details:

Place of Origin:	China
Brand Name:	eton
Certification:	CCC,SIRA,CE
Model Number:	ht-e5d
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	$75000/unit
Packaging Details:	Waterproof material
Delivery Time:	30days
Payment Terms:	L/C, T/T
Supply Ability:	80 Units per Month

Contact Now

Detailed Product Description

Application:	SMT Mounting Shooter Machine	Item:	LED SMD Chip Mounter, Desktop Led Pick And Place Machine, Samsung Pick

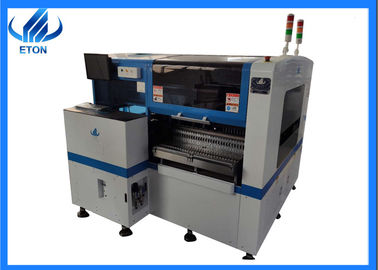

LED Tube light mounting machine LED SMT pick and place machine LED production line 0

Product details HT-E5D machine is Dual system,dual module multifunctional mounter with high capacity of 80000CPH. It can mount capacitors,resistors,LED3014/3020/3528/5050,IC and shaped components. It applies to power driver,electric board,lens,linear bulb,household appliance and etc.

technical parameter

Place of origin	Guangdong,China
Model number	HT-E5D
dimension	165020001550
PCB size	100100～500300
PCB thickness	0.5～3mm
components	LED,capacitors,resistors,shaped components,etc.
Mounting speed	80000CPH
Mounting mode	Group picking and separate placing, separate picking and separate placing.
Mounting precision	±0.02cm
Feeder stations	60pcs
nozzles	16pcs

Product features of smt mounter ht-e5d

Dual system,dual module multifunctional mounter; to produce two different product at same time.
X,Y,Z drive way is high-end magnetic linear motor+servo motor.
Install 4 camera and adopt vision for the flight identification.
Vision for the flight identification ,mark correction
Electronic feeder feeding system.
Non-stop material re-loading function.
Auto-optimization after coordinates generated

Product parts

Saline shaft from korea
Mark camera from HK vision
Grating scale from Renishaw,UK
Guideway from IKO Japan
Pneumatic components from SMC Japan² Sensor from Beckhoff Germany
Drag chain from IGUS Germany

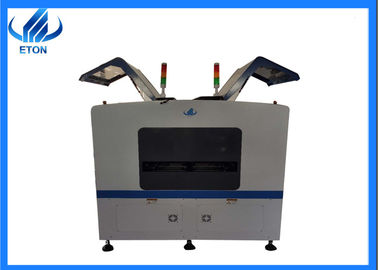

LED Tube light mounting machine LED SMT pick and place machine LED production line 2

Our services

We have a professional sales manager to provide you with professional advice and services
We provide 24-hour online service to solve your problem quickly
We will specify the production plan for you according to your budget
1 year free warranty
Visit customers regularly and gather information
Provide latest information about technology and equipment
Software updates are free for life

company details

Shenzhen ETON automation equipment co., ltd. was established in 2011, which is a high-tech enterprise specializing in the r&d, production, sales and after-sales technical services of SMT high-speed SMT mounter and multifunctional mounter.

As a national brand, ETON automation occupies an absolute leading position in China's LED placement machine industry. At the same time, its products are exported to more than 20 countries, including South Korea, India, Vietnam, Egypt and Turkey.

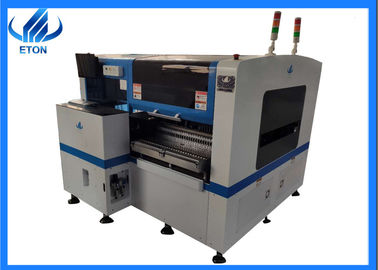

LED Tube light mounting machine LED SMT pick and place machine LED production line 3

contact

Name:Brynn

Email :Brynn@eton-mounter.com

WeChat:13802252825

Telephone:138 0225 2825

Tag:

Contact Person: Ms. Linda

Tel: 0086 13670197725 (Whatsapp/Wechat)

Fax: 0086-755- 29502066
