magnetic linear motor multifunctional pick and place machine ht-e8d

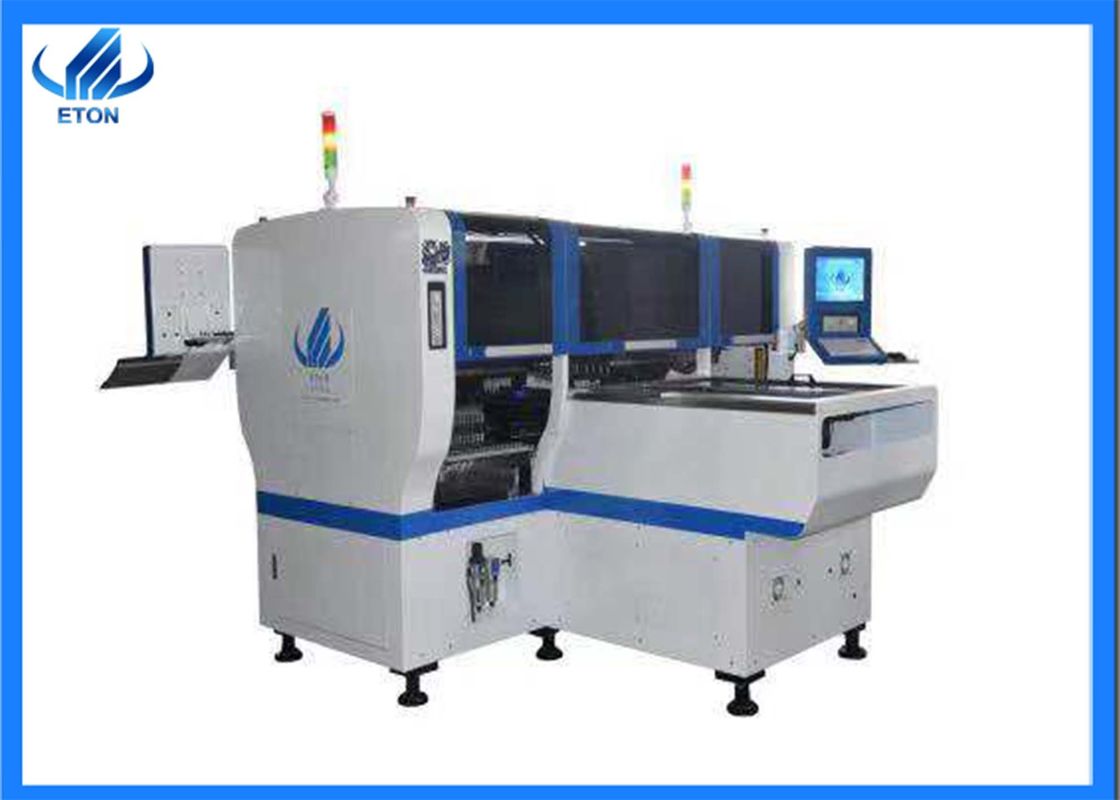

Large Image : magnetic linear motor multifunctional pick and place machine ht-e8d

Product Details:

Place of Origin:	China
Brand Name:	eton
Certification:	ccc,ce,sira
Model Number:	ht-e8d
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	1unit
Price:	$80000/unit
Packaging Details:	Waterproof material and wooden case
Delivery Time:	30days
Payment Terms:	L/C, T/T
Supply Ability:	80 units per months

Contact Now

Detailed Product Description

Warranty:	1 Year, 12 Months	Applicable Components:	0402, 0805, 0603, 1206, SOP
Application:	SMD Production Line, M4 M1 I PULSE SMT Pick And Place Machine, SMT Mounting Shooter Machine, SMT Production Line, For SMT Machine	Product Name:	Place Machine\ LED Mounter\LED Assembly Machine, Automatic SMT Mounting Shooter, SAMSUNG SM310 Pick And Place Machine, Yamaha SMT Pick And Place Machine, SMT Shooter Machine
Mounting Speed:	100000-150000 CPH, 0.036s/chip(A-2), Without Vision-6000cph With Vision-4000cph, 40000 CPH

1. product details

HT-E8D machine is Dual system,dual module multifunctional mounter with high capacity of 80000CPH. It can mount capacitors,resistors,LED3014/3020/3528/5050,IC and shaped components. It applies to power driver,electric board,lens,linear bulb,household appliance and etc.

magnetic linear motor multifunctional pick and place machine ht-e8d 0

Technical parameter of pick and place machineht-e5s

Model number	HT-E8d
Dimension	315016502250mm
PCB size	1200300～100100mm
PCB thickness	0.5～5mm
PCB clamping	adjustable pressure pneumatic
mounting mode	Group take cent stick, cent take cent stick
system	windows 7
display	touch screen monitor
input device	keyboard,mouse
NO.of camera	4 sets of imported camera
mounting precision	±0.02mm
mounting height	<40mm
mounting speed	40000CPH
components space	0.2mm
NO.of feedings station	30pcs
NO.of nozzles	8pcs
power	380AC 50HZ
power consumption	4KW
operating environment	23℃±3℃
conveyor transmission	MAX length:500mm
transmission speed	>500mm/sec
transmission direction	single(left→right,right→left)
transmission mode	online drive
position mode	optical
air pressure	>5.0kg/c㎡
electrical control	independent research and development by ETON
motion control card module 1set	independent research and development by ETON
X.Y axis drive way	high-end magnetic linear motor+servo motor
feeding way	electric feeder with double motor

magnetic linear motor multifunctional pick and place machine ht-e8d 1

product features of smt mounter ht-e5s

X,Y,Z drive way is high-end magnetic linear motor+servo motor.
Install 4 camera and adopt vision for the flight identification.
PCB clamping is electric clamping+adjustable pressure pneumatic
Vision for the flight identification ,mark correction
Electronic feeder feeding system.
Non-stop material re-loading function.
Auto-optimization after coordinates generated

magnetic linear motor multifunctional pick and place machine ht-e8d 2

Product parts

Saline shaft from korea
Mark camera from HK vision
Grating scale from Renishaw,UK
Guideway from IKO Japan
Pneumatic components from SMC Japan
Sensor from Beckhoff Germany
Drag chain from IGUS Germany

magnetic linear motor multifunctional pick and place machine ht-e8d 3

Business terms

Accepted delivery terms	EXW, FOB, CIF, CFR
Accepted payment currency	USD,CNY
Accepted payment type	L/C, T/T
Nearest port	Shenzhen

our services

We have a professional sales manager to provide you with professional advice and services
We provide 24-hour online service to solve your problem quickly
We will specify the production plan for you according to your budget
1 year free warranty
Visit customers regularly and gather information
Provide latest information about technology and equipment
Software updates are free for life

Company information
ETON automation equipment co., ltd. is a fast growing high-tech enterprise, we are committed to independent research and development, the quality and performance of the production of machine products have been comparable to international famous brands.
Our products are of high quality and low price. We can provide the best solution to optimize the placement of the production line. We can track customers' products throughout the whole process.
Buying our products can effectively improve production efficiency.
magnetic linear motor multifunctional pick and place machine ht-e8d 4

Packing & shipping of smt mounter ht-e5s

Packing details: vacuum packing and wooden case
Shipping: Shenzhen port within 30 days after payment
Port: Shenzhen
Lead time:

Quantity (units)	Est. Time (days)
１－２	>２

magnetic linear motor multifunctional pick and place machine ht-e8d 5

Our certifications
The company has independently developed a number of intellectual property technologies, including 9 invention patents, 112 practical patents and 12 software Copyrights.Successively obtained“shenzhen high-tech enterprise”,“national high-tech enterprise”, “shenzhen TOP brand”, “2015 LED technology innovation award” ,“industry special contribution award” ,“the 4th China LED first innovation award” ,“industry special contribution award”, “double soft enterprise”and so on.
magnetic linear motor multifunctional pick and place machine ht-e8d 6

Our clients
the company has an absolute leading market share in the LED industry, and its products are exported to more than 20 countries including Korea, India, Vietnam, Tunisia, Egypt and Turkey.

Trade shows
Since the establishment of the company, we have actively participated in relevant exhibitions held at home and abroad every year.
magnetic linear motor multifunctional pick and place machine ht-e8d 8

magnetic linear motor multifunctional pick and place machine ht-e8d 10

contact
Name:Brynn
Email :Brynn@eton-mounter.com
WeChat:13802252825
Telephone:138 0225 2825

Tag:

Contact Person: Ms. Linda

Tel: 0086 13670197725 (Whatsapp/Wechat)

Fax: 0086-755- 29502066
