LED smt mounter magnetic linear motor multifunctional pick and place machine rt-1

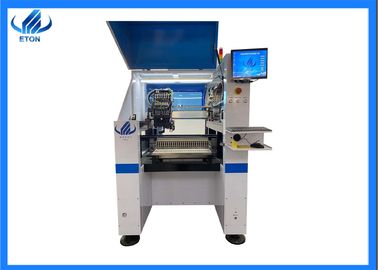

Large Image : LED smt mounter magnetic linear motor multifunctional pick and place machine rt-1

Product Details:

Place of Origin:	China
Brand Name:	eton
Certification:	ccc,ce,sira
Model Number:	rt-1
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	1unit
Price:	$33000/unit
Packaging Details:	Waterproof material and wooden case
Delivery Time:	30days
Payment Terms:	L/C, T/T
Supply Ability:	80 units per months

Contact Now

Detailed Product Description

1. product details

Rt-1 is a single-module multifunctional mounting machine with a capacity of 30000CPH～35000CPH. The components that can be mounted include LED3014/3020/3528/5050, capacitors, resistors, IC and special-shaped components.it applies to LED light and electric board.

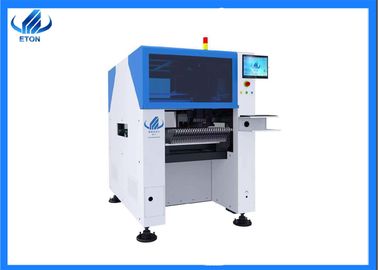

LED smt mounter magnetic linear motor multifunctional pick and place machine rt-1 0

Technical parameter of pick and place machine rt-1

Model numberrt-1
Dimension	110415841655mm
PCB size	5050～400350mm
PCB thickness	0.1～6mm
PCB clamping	adjustable pressure pneumatic
mounting mode	Group take cent stick, cent take cent stick
system	windows 7
display	touch screen monitor
input device	keyboard,mouse
NO.of camera	2sets of imported camera
mounting precision	±0.02mm
mounting height	<40mm
mounting speed	30000～35000CPH
components space	0.2mm
NO.of feedings station	32pcs
NO.of nozzles	10pcs
power	380AC 50HZ
power consumption	4KW
operating environment	23℃±3℃
conveyor transmission	MAX length:500mm
transmission speed	>500mm/sec
transmission direction	single(left→right,right→left)
transmission mode	online drive
position mode	optical
air pressure	>5.0kg/c㎡
electrical control	independent research and development by ETON
motion control card module 1set	independent research and development by ETON
X.Y axis drive way	high-end magnetic linear motor+servo motor
feeding way	electric feeder with double motor

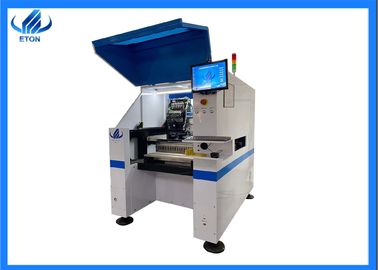

LED smt mounter magnetic linear motor multifunctional pick and place machine rt-1 1

product features of smt mounter rt-1

X,Y,Z drive way is high-end magnetic linear motor+servo motor.
Install 2 camera and adopt vision for the flight identification.
PCB clamping is electric clamping+adjustable pressure pneumatic
Vision for the flight identification ,mark correction
Electronic feeder feeding system.
Non-stop material re-loading function.
Auto-optimization after coordinates generated

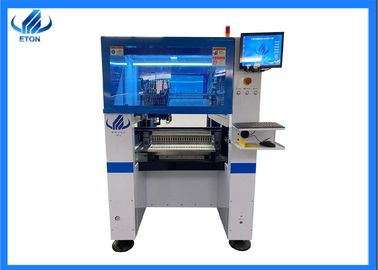

LED smt mounter magnetic linear motor multifunctional pick and place machine rt-1 2

Product parts

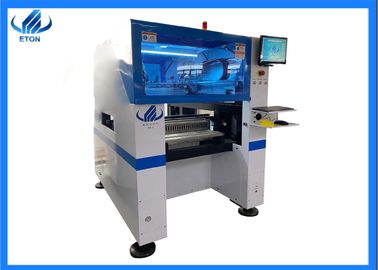

LED smt mounter magnetic linear motor multifunctional pick and place machine rt-1 3

Business terms

Accepted delivery terms	EXW, FOB, CIF, CFR
Accepted payment currency	USD,CNY
Accepted payment type	L/C, T/T
Nearest port	Shenzhen

our services

LED smt mounter magnetic linear motor multifunctional pick and place machine rt-1 4

Company information
ETON automation equipment co., ltd. is a fast growing high-tech enterprise, we are committed to independent research and development, the quality and performance of the production of machine products have been comparable to international famous brands.
Our products are of high quality and low price. We can provide the best solution to optimize the placement of the production line. We can track customers' products throughout the whole process.
Buying our products can effectively improve production efficiency.
LED smt mounter magnetic linear motor multifunctional pick and place machine rt-1 5

Packing & shipping of smt mounter ht-e5s

Packing details: vacuum packing and wooden case
Shipping: Shenzhen port within 30 days after payment
Port: Shenzhen
Lead time:

Quantity (units)	Est. Time (days)
１－２	>２

LED smt mounter magnetic linear motor multifunctional pick and place machine rt-1 6

Our certifications
The company has independently developed a number of intellectual property technologies, including 9 invention patents, 112 practical patents and 12 software Copyrights.Successively obtained“shenzhen high-tech enterprise”,“national high-tech enterprise”, “shenzhen TOP brand”, “2015 LED technology innovation award” ,“industry special contribution award” ,“the 4th China LED first innovation award” ,“industry special contribution award”, “double soft enterprise”and so on.
LED smt mounter magnetic linear motor multifunctional pick and place machine rt-1 7

Trade shows
Since the establishment of the company, we have actively participated in relevant exhibitions held at home and abroad every year.

LED smt mounter magnetic linear motor multifunctional pick and place machine rt-1 10
