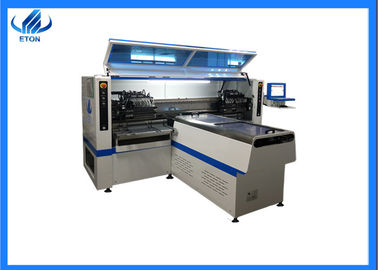

smt mounter magnetic linear motor high speed pick and place machine ht-t9

smt mounter magnetic linear motor high speed pick and place machine ht-t9
smt mounter magnetic linear motor high speed pick and place machine ht-t9 smt mounter magnetic linear motor high speed pick and place machine ht-t9 smt mounter magnetic linear motor high speed pick and place machine ht-t9 smt mounter magnetic linear motor high speed pick and place machine ht-t9 smt mounter magnetic linear motor high speed pick and place machine ht-t9

Large Image :  smt mounter magnetic linear motor high speed pick and place machine ht-t9

Product Details:
Place of Origin: China
Brand Name: eton
Certification: ccc,ce,sira
Model Number: ht-t9
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1unit
Price: $ 95,000 /unit
Packaging Details: Waterproof material and wooden case
Delivery Time: 30days
Payment Terms: L/C, T/T
Supply Ability: 80 units per months
Contact Now
Detailed Product Description
Usage: Circuit Board Assembly

1. product details


Components: LED3014/3020/3528/5050 and resistor,capacitors,bridge rectifiers,etc.
Application:5m,50m or any length of flexible strip and roll to roll;RGB





smt mounter magnetic linear motor high speed pick and place machine ht-t9 0



Technical parameter  of pick and place machine ht-t9

Model number HT-T9
Dimension 2450*2100*1550mm
PCB size 250mm*any length
PCB thickness 0.5～1.5mm
PCB clamping adjustable pressure pneumatic
mounting mode group to take and group to mount
system windows 7
display touch screen monitor
input device keyboard,mouse
NO.of camera 5 sets of imported camera
mounting precision ±0.02mm
mounting height <13mm
mounting speed 200000CPH
components space 0.2mm
NO.of feedings station 64pcs
NO.of nozzles 64pcs
power 380AC 50HZ
power consumption 6KW
operating environment 23℃±3℃
conveyor transmission any length
transmission speed >500mm/sec
transmission direction single(left→right,right→left)
transmission mode online drive
position mode optical
Air Force 0.5mpa
electrical control independent research and development by ETON
motion control card module 1set independent research and development by ETON
X.Y axis drive way high-end magnetic linear motor+servo motor
feeding way electric feeder with double motor


product features of smt mounter ht-t9


  • X,Y,Z drive way is high-end magnetic linear motor+servo motor.
  •  Install 5 camera and adopt vision for the flight identification.
  • PCB clamping is adjustable pressure pneumatic
  • Vision for the flight identification ,mark correction
  • Electronic feeder feeding system.
  • Non-stop material re-loading function.
  • Auto-optimization after coordinates generated

smt mounter magnetic linear motor high speed pick and place machine ht-t9 1


Product parts of high speed mounter ht-f9


smt mounter magnetic linear motor high speed pick and place machine ht-t9 2


Business terms

Accepted delivery terms EXW, FOB, CIF, CFR
Accepted payment currency USD,CNY
Accepted payment type L/C, T/T
Nearest port

Shenzhen


our services

  • We have a professional sales manager to provide you with professional advice and services
  • We provide 24-hour online service to solve your problem quickly
  • We will specify the production plan for you according to your budget
  • 1 year free warranty
  • Visit customers regularly and gather information
  • Provide latest information about technology and equipment
  • Software updates are free for life

smt mounter magnetic linear motor high speed pick and place machine ht-t9 3








Company information

smt mounter magnetic linear motor high speed pick and place machine ht-t9 4
ETON automation equipment co., ltd. is a fast growing high-tech enterprise, we are committed to independent research and development, the quality and performance of the production of machine products have been comparable to international famous brands.
Our products are of high quality and low price. We can provide the best solution to optimize the placement of the production line. We can track customers' products throughout the whole process.
Buying our products can effectively improve production efficiency.
smt mounter magnetic linear motor high speed pick and place machine ht-t9 5


Packing & shipping of smt mounter ht-t9

Packing details: vacuum packing and wooden case
Shipping: Shenzhen port within 30 days after payment
Port: Shenzhen
smt mounter magnetic linear motor high speed pick and place machine ht-t9 6


Our certifications
The company has independently developed a number of intellectual property technologies, including 9 invention patents, 112 practical patents and 12 software Copyrights.Successively obtained“shenzhen high-tech enterprise”,“national high-tech enterprise”, “shenzhen TOP brand”, “2015 LED technology innovation award” ,“industry special contribution award” ,“the 4th China LED first innovation award” ,“industry special contribution award”, “double soft enterprise”and so on.
smt mounter magnetic linear motor high speed pick and place machine ht-t9 7

Our clients
the company has an absolute leading market share in the LED industry, and its products are exported to more than 20 countries including Korea, India, Vietnam, Tunisia, Egypt and Turkey.
smt mounter magnetic linear motor high speed pick and place machine ht-t9 8

Trade shows
Since the establishment of the company, we have actively participated in relevant exhibitions held at home and abroad every year.
smt mounter magnetic linear motor high speed pick and place machine ht-t9 9
smt mounter magnetic linear motor high speed pick and place machine ht-t9 10

smt mounter magnetic linear motor high speed pick and place machine ht-t9 11
