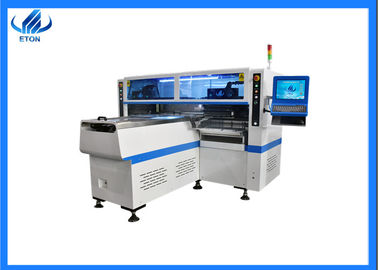

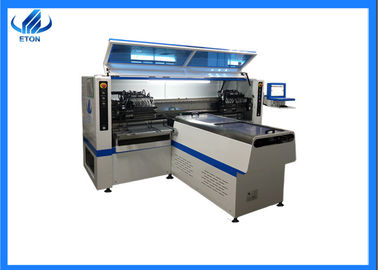

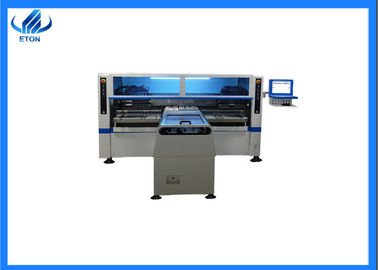

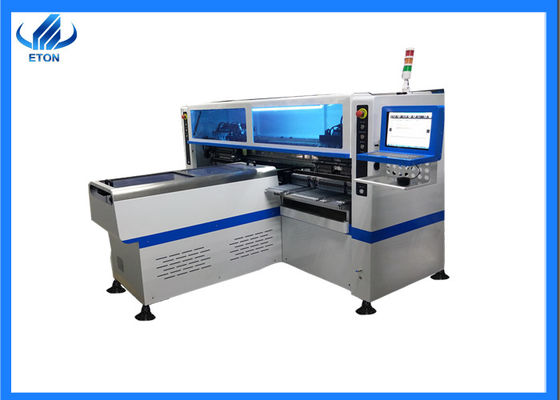

product details
Producing with 2～４ types of materials with capacity at same time, available for 5m,50m or any length of flexible strip and roll to roll.
Dual-arm four modules with 17 nozzles for each mounting part, and part A/B/C/D can be mounted separately or synchronously.
Calibration automatically, high precision.
Group to take and group to mount.
technical parameter of smt mounter ht-f9
| Model number |
HT-F9 |
| Dimension |
2700*2120*1550mm |
| PCB size |
1200*330～80*330mm |
| PCB thickness |
0.5～5mm |
| PCB clamping |
adjustable pressure pneumatic |
| mounting mode |
group to take and group to mount |
| system |
windows 7 |
| display |
touch screen monitor |
| input device |
keyboard,mouse |
| NO.of camera |
5 sets of imported camera |
| mounting precision |
±0.03mm |
| mounting height |
<13mm |
| mounting speed |
200000CPH |
| components |
LED3014/3020/3528/5050 and resistors, capacitors, bridge rectifiers |
| components space |
0.2mm |
| NO.of feedings station |
68pcs |
| NO.of nozzles |
68pcs |
| power |
380AC 50HZ |
| power consumption |
6KW |
| operating environment |
23℃±3℃ |
| conveyor transmission |
MAX length:1200mm |
| transmission speed |
>500mm/sec |
| transmission direction |
single(left→right,right→left) |
| transmission mode |
online drive |
| position mode |
optical |
| air pressure |
>5.0kg/c㎡ |
| electrical control |
independent research and development by ETON |
| motion control card module 1set |
independent research and development by ETON |
| X.Y axis drive way |
high-end magnetic linear motor+servo motor |
| feeding way |
electric feeder with double motor |
product parts of pick and place machine ht-f9
- Saline shaft from korea
- Mark camera from HK vision
- Grating scale from Renishaw,UK
- Guideway from IKO Japan
- Pneumatic components from SMC Japan
- Sensor from Beckhoff Germany
- Drag chain from IGUS Germany
Packing and transportation
We usually use waterproof material to pack our products in wooden cases. If the customer has special packing requirements, we can negotiate and conclude a contract. Partial shipments and transshipment are subject to the contract.
We usually ship within 30 days of receipt of payment.
Company profile
In November 2011, Shenzhen ETON automation equipment co., ltd. was established in Shenzhen, China. It is a national high-tech enterprise dedicated to the research and development, production, sales and after-sales technical service of SMT high-speed SMT mounter. Our management policy is sincere operation, concentrate on research and development, manufacturing, intimate service, customers rest assured. Our aim is to create value for customers and benefit for the society. We aspire to be the world's most competitive placement machine and cutting-edge electronic testing equipment manufacturing and service provider.
business terms
| Accepted delivery terms |
EXW, FOB, CIF, CFR |
| Accepted payment currency |
USD,CNY |
| Accepted payment type |
L/C, T/T |
| Nearest port |
Shenzhen |
The company has independently developed a number of intellectual property technologies, including 9 invention patents, 112 practical patents and 12 software Copyrights.Successively obtained "Shenzhen high-tech enterprise", "national high-tech enterprise", “Shenzhen TOP brand”, “2015 LED technology innovation award” ,“industry special contribution award” ,“the 4th China LED first innovation award” ,“industry special contribution award”, “double soft enterprise”and so on.
our services
Before buying our machine:
- We have a professional sales manager to provide you with professional advice and services.
- We provide 24-hour online service to solve your problem quickly.
- We will specify the production plan for you according to your budget.
After buying our machine:
- 1 year free warranty.
- Visit customers regularly and gather information.
- Provide latest information about technology and equipment.
- Software updates are free for life.
Our clients
the company has an absolute leading market share in the LED industry, and its products are exported to more than 20 countries including Korea, India, Vietnam, Tunisia, Egypt and Turkey.
Trade show
Since the establishment of the company, we have participated in many trade exhibitions at home and abroad, including Guangzhou Guangya exhibition, Turkey lighting exhibition, India lighting exhibition, Pakistan exhibition, India nepcon exhibition, Thailand exhibition, etc.We add a large number of foreign clients every year.
