Length: | 1800mm | Width: | 1050mm |
---|---|---|---|
Height: | 1550mm | Total Weight: | 800kg |
Max Pcb Size: | 1200*500mm | Pcb Clamp;ing: | Adjustable Pressure Pneumatic |
Dispensing: | Pneumatic Injection Valve | System: | Windows7 |
Software: | R&d Independently | Display: | Led Monitor |
Input Device: | Keyboard,mouse | No. Of Camera: | 1 |
Ccd Resolution: | 0.01mm | Runniig Accuracy: | 0.001mm |
Max Dispensing Height: | 15mm | Disending Speeding: | 90000CPH |
POWER: | 220AC 50HZ | Power Consmption: | 4.5kw |
High Light: | LED Display Smt Mounter Machine,Bulb Light Smt Mounter Machine |
1. Product details

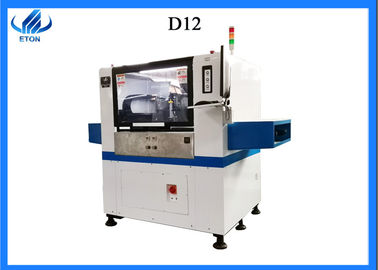

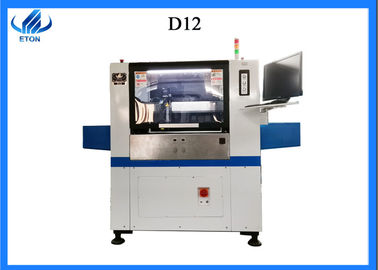

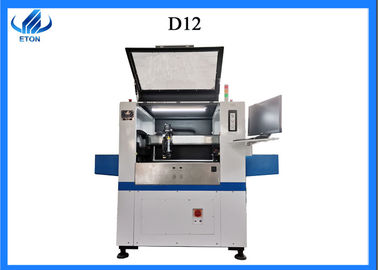

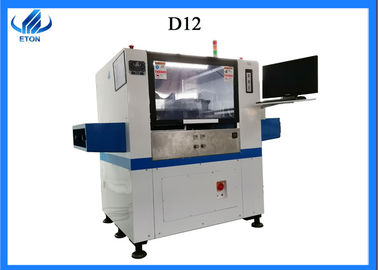

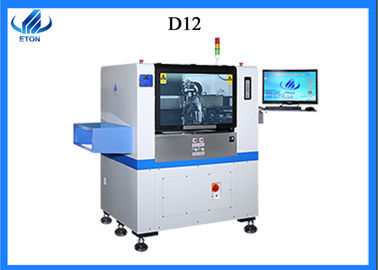

This machine glue dispenser ht-d12 is independently developed and produced by our company, which can effectively improve the production efficiency and reduce the production cost.
technical parameter
Model number | HT-D12 |
Dimension | 1800*1050*1550mm |
PCB size | 1200*500mm |
PCB clamping | Adjustable pressure pneumatic |
system | windows 7 |
display | LED monitor |
input device | keyboard,mouse |
NO.of camera | 1 sets of industrial camera |
Heating temperature | 200℃ |
CCD resolution | 0.01mm |
Running accuracy | 0.001mm |
Dispensing height | 90000CPH |
operating environment | 23℃±3℃ |
power | 220AC 50HZ |
power consumption | 4.5KW |
Max running speed | >1200mm/sec |
transmission direction | single(left→right,right→left) |
transmission way | Auto online drive |
feeding way | electric feeder with double motor |
air supply | ≥0.6 |
electrical control | independent research and development by ETON |
motion control card module 1set | independent research and development by ETON |
drive way | Driving by linear servo motor |
2. services of glue dispenser machine ht-d12
3.Company profile
We are a rapidly growing company. We have just completed an industrial park in jiangxi, China, at a cost of 150 million RMB.
We will vigorously explore the overseas market in the future.
We have also cooperated with engineers from Taiwan, Japan and Germany for a long time to jointly develop and improve the technology.
4.Knowledge of mounter industry
SMT Introduction
SMT patch refers to the abbreviation of a series of technological processes that are processed on a PCB basis. PCB Circuit Board is a printed circuit board.
SMT is the surface assembly technology (surface mount technology)(abbreviation of Surface Mounted Technology), is the most popular technology and process in the electronic assembly industry at present. Electronic circuit surface assembly technology (Surface Mount Technology,SMT), known as surface mount or surface mount technology. This is a kind of circuit assembly technology which installs components without pin or short lead on the surface of printed circuit board (Printed Circuit Board,PCB SMC/SMD,) or other substrate by means of reflow welding or immersion welding.
Under normal circumstances, the electronic products we use are made of electronic components, such as pcb and capacitance, resistance and so on, according to the designed circuit diagram, so all kinds of electrical appliances need different smt patch processing technology to process.
SMT basic process elements: solder paste printing -> parts mount -> reflow welding ->AOI optical inspection -> maintenance - sub-plate.
