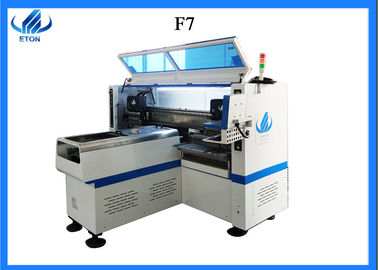

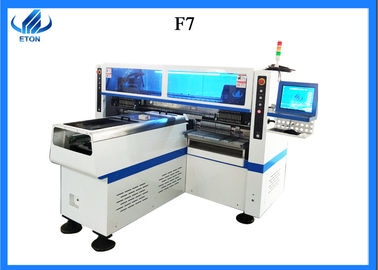

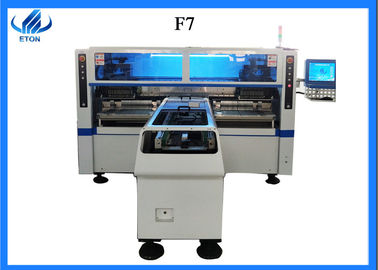

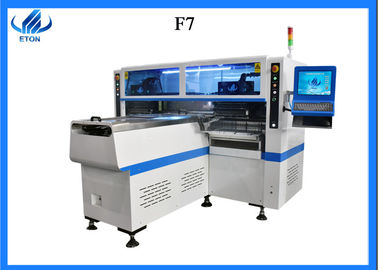

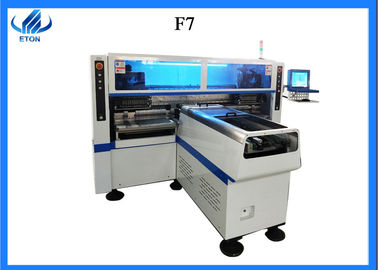

led lights assembly Dual-purpose professional high speed pick and place machine,2～4 type of capacity reach 180K CPH

Large Image : led lights assembly Dual-purpose professional high speed pick and place machine,2～4 type of capacity reach 180K CPH

Product Details:

Place of Origin:	china
Brand Name:	eton
Certification:	ccc,ce,sira
Model Number:	ht-f7
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	$75000.00/unit
Packaging Details:	Waterproof material packing and wooden case
Delivery Time:	30 work days
Payment Terms:	L/C, T/T
Supply Ability:	80 units per months

Contact Now

Detailed Product Description

Length:	2700mm	Width:	2120mm
Height:	1550mm	Total Weight:	1400kg
Pcb Size:	80330mm~1200330mm	Pcb Clamp;ing:	Adjustable Pressure Pneumatic
System:	Windows7	Software:	R&d Independently
Display:	Touch Screen Monitor	Input Device:	Keyboard,mouse
No. Of Camera:	5	POWER:	380AC 50HZ
Power Consmption:	6kw	Mounting Mode:	Group Take Cent Stick, Cent Take Cent Stick
Components Space:	0.2mm	Feeders Stations:	68PCS
Nozzles:	34PCS	Mounting Speed:	150000~180000CPH
Mounting Height:	13mm

1.product details

Components: LED3014/3020/3528/5050 and resistor,capacitors,bridge rectifiers,etc.

Application: 0.6m,0.9m,1.2m rigid PCB and 0.5m,1m LED flexible strip.

led lights assembly Dual-purpose professional high speed pick and place machine,2～4 type of capacity reach 180K CPH 0

X,Y,Z drive way is high-end magnetic linear motor+servo motor.
Install 5 camera and adopt vision for the flight identification, mark correction.
PCB clamping is electric clamping+adjustable pressure pneumatic.
Vision for the flight identification ,mark correction.
Electronic feeder feeding system.
Non-stop material re-loading function.
Auto-optimization after coordinates generated.

led lights assembly Dual-purpose professional high speed pick and place machine,2～4 type of capacity reach 180K CPH 1

2.technical parameter of smt mounter machine

Model number	HT-F7
Dimension	270021201550mm
PCB size	80330～1200330mm
PCB thickness	0.5～5mm
PCB clamping	adjustable pressure pneumatic
mounting mode	group to take and group to mount
system	windows 7
display	touch screen monitor
input device	keyboard,mouse
NO.of camera	5 sets of imported camera
mounting precision	±0.02mm
mounting height	<13mm
mounting speed	200000CPH
components space	0.2mm
NO.of feedings station	68pcs
NO.of nozzles	34pcs
power	380AC 50HZ
power consumption	6KW
operating environment	23℃±3℃
conveyor transmission	MAX length:1200mm
transmission speed	>500mm/sec
transmission direction	single(left→right,right→left)
transmission mode	online drive
position mode	optical
air pressure	>5.0kg/c㎡
electrical control	independent research and development by ETON
motion control card module 1set	independent research and development by ETON
X.Y axis drive way	high-end magnetic linear motor+servo motor
feeding way	electric feeder with double motor

3.trade terms of smt mounter machine

Accepted delivery terms	EXW, FOB, CIF , CFR
Accepted payment currency	USD, CNY
Accepted payment type	L/C, T/T
Nearest port	Shenzhen

4.Packing & shipping of smt mounter machine

Packaging materials	Waterproof material and wooden case
Lead time	Delivery within 30 days after receipt of payment..
port	Shenzhen
Delivery time	Transshipment and partial shipment according to the contract

led lights assembly Dual-purpose professional high speed pick and place machine,2～4 type of capacity reach 180K CPH 2

5.our services

led lights assembly Dual-purpose professional high speed pick and place machine,2～4 type of capacity reach 180K CPH 3

6.our clients

led lights assembly Dual-purpose professional high speed pick and place machine,2～4 type of capacity reach 180K CPH 4

led lights assembly Dual-purpose professional high speed pick and place machine,2～4 type of capacity reach 180K CPH 5
