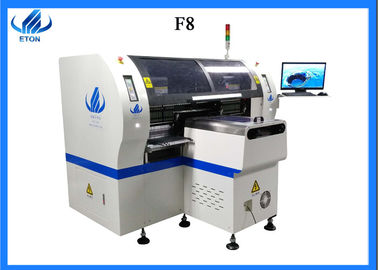

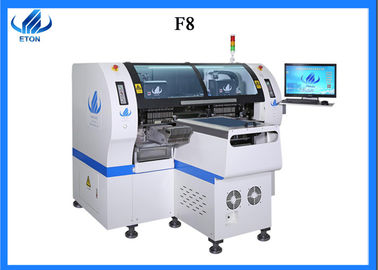

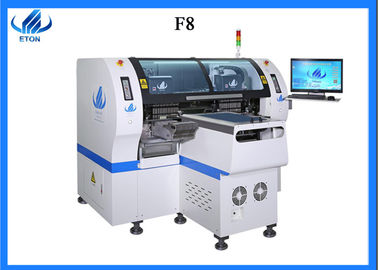

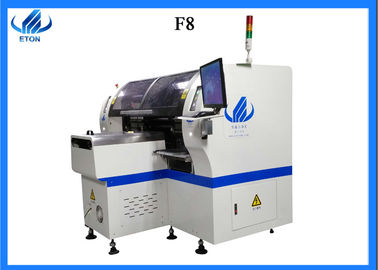

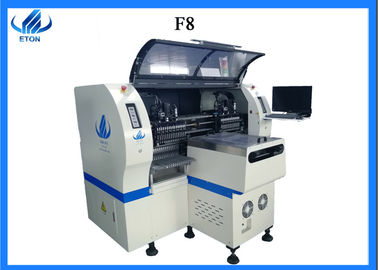

Pick and place machine-professional for LED display,capacity reach 150000CPH,smt pick and place machineht-f8

Large Image : Pick and place machine-professional for LED display,capacity reach 150000CPH,smt pick and place machineht-f8

Product Details:

Place of Origin:	china
Brand Name:	eton
Certification:	ccc,ce,sira
Model Number:	ht-f8
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	$70,000.00/unit
Packaging Details:	Waterproof material packing and wooden case
Delivery Time:	30 work days
Payment Terms:	L/C, T/T
Supply Ability:	80 units per months

Contact Now

Detailed Product Description

Length:	1600mm	Width:	1900mm
Height:	1550mm	Total Weight:	1100kg
Pcb Size:	80110mm~345600mm	Pcb Clamp;ing:	Adjustable Pressure Pneumatic
System:	Windows7	Software:	R&d Independently
Display:	Touch Screen Monitor	Input Device:	Keyboard,mouse
No. Of Camera:	5	POWER:	380AC 50HZ
Power Consmption:	5kw	Mounting Mode:	Group Of Group Of Stick
Components Space:	0.2mm	Feeders Stations:	32PCS
Nozzles:	32PCS	Mounting Speed:	150000CPH
Mounting Height:	15mm

1.product details

Components of pick and place machine ht-f8 can mount include LED2121/2727/3528/5050 and resistor,capacitors,bridge rectifiers,etc.

SMT mounter ht-f8 is especially applies to LED display. Max mounting height is 15mm,mounting speed is 150000CPH.

2.product features of high speed pick and place machine

Pick and place machine-professional for LED display,capacity reach 150000CPH,smt pick and place machineht-f8 0

2.technical parameter of smt mounter machine

Model number	HT-F8
Dimension	160019001550mm
PCB size	80110～345600mm
PCB thickness	0.5～5mm
mounting mode	group to take and group to mount
system	windows 7
display	LED monitor
input device	keyboard,mouse
NO.of camera	5 sets of imported camera
mounting precision	±0.02mm
mounting height	<15mm
mounting speed	150000CPH
components space	0.2mm
NO.of feedings station	32pcs
NO.of nozzles	32pcs
power	220AC 50HZ
power consumption	5KW
operating environment	23℃±3℃
conveyor transmission	MAX length:1200mm
transmission speed	>500mm/sec
transmission direction	single(left→right,right→left)
transmission mode	Auto online drive
position mode	optical
air pressure	>5.0kg/c㎡
electrical control	independent research and development by ETON
motion control card module 1set	independent research and development by ETON
X.Y axis drive way	servo motor
feeding way	electric feeder with double motor

3.trade terms of smt mounter machine

Accepted delivery terms	EXW, FOB, CIF , CFR
Accepted payment currency	USD, CNY
Accepted payment type	L/C, T/T
Nearest port	Shenzhen

4.Packing & shipping of smt mounter machine

Packaging materials	Waterproof material and wooden case
Lead time	Delivery within 30 days after receipt of payment..
port	Shenzhen
Delivery time	Transshipment and partial shipment according to the contract

Pick and place machine-professional for LED display,capacity reach 150000CPH,smt pick and place machineht-f8 1

5.our services

Pick and place machine-professional for LED display,capacity reach 150000CPH,smt pick and place machineht-f8 2

6.our clients

Pick and place machine-professional for LED display,capacity reach 150000CPH,smt pick and place machineht-f8 3

7.Our certificates and certifications

Pick and place machine-professional for LED display,capacity reach 150000CPH,smt pick and place machineht-f8 4

What are you still hesitating about? Come and contact us !

ETON---Quality placement machine equipment supplier !

Your best choice--- high speed mounter HT-f8 !

If you want to buy a mounter, please do not hesitate to choose us!

We will serve you wholeheartedly!
