LED Long Strip Light Making Machine HT-T9 Roll to Roll Solution Machine smt mounter high speed pick and place machine

LED Long Strip Light Making Machine HT-T9 Roll to Roll Solution Machine smt mounter high speed pick and place machine
LED Long Strip Light Making Machine HT-T9 Roll to Roll Solution Machine smt mounter high speed pick and place machine

Large Image :  LED Long Strip Light Making Machine HT-T9 Roll to Roll Solution Machine smt mounter high speed pick and place machine

Product Details:
Place of Origin: china
Brand Name: eton
Certification: ccc,ce,sira
Model Number: ht-t9
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: $ 95,000 /unit
Packaging Details: Waterproof material packing and wooden case
Delivery Time: 30 work days
Payment Terms: L/C, T/T
Supply Ability: 80 units per months
Contact Now
Detailed Product Description
Pcb Size: 250mm*any Length Pcb Clamp;ing: Adjustable Pressure Pneumatic
System: Windows7 Software: R&d Independently
Display: Touch Screen Monitor Input Device: Keyboard,mouse
No. Of Camera: 5 POWER: 380AC 50HZ
Power Consmption: 6kw Mounting Mode: Group Of Group Of Stick
Components Space: 0.2mm Feeders Stations: 64PCS
Nozzles: 64PCS Mounting Speed: 200000CPH
Mounting Height: 13mm

1.product details



Components: LED3014/3020/3528/5050 and resistor,capacitors,bridge rectifiers,etc.

Application:5m,50m or any length of flexible strip and roll to roll;RGB

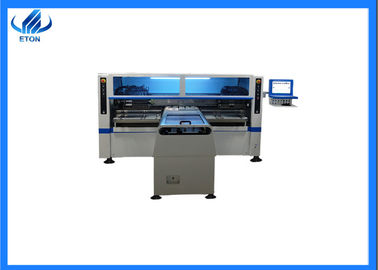

LED Long Strip Light Making Machine HT-T9 Roll to Roll Solution Machine smt mounter high speed pick and place machine 0





2.product features of high speed pick and place machine

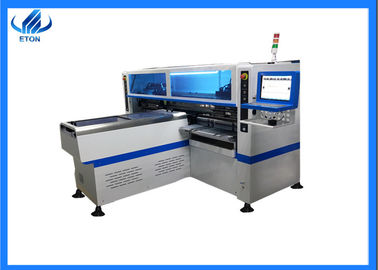

LED Long Strip Light Making Machine HT-T9 Roll to Roll Solution Machine smt mounter high speed pick and place machine 1

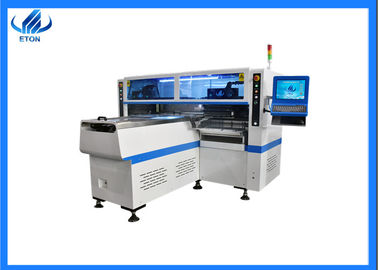

LED Long Strip Light Making Machine HT-T9 Roll to Roll Solution Machine smt mounter high speed pick and place machine 2





2.technical parameter of smt mounter machine




Model number HT-T9
Dimension 2450*2100*1550mm
PCB size 250mm*any length
PCB thickness 0.5～1.5mm
PCB clamping adjustable pressure pneumatic
mounting mode group to take and group to mount
system windows 7
display touch screen monitor
input device keyboard,mouse
NO.of camera 5 sets of imported camera
mounting precision ±0.02mm
mounting height <13mm
mounting speed 200000CPH
components space 0.2mm
NO.of feedings station 64pcs
NO.of nozzles 64pcs
power 380AC 50HZ
power consumption 6KW
operating environment 23℃±3℃
conveyor transmission any length
transmission speed >500mm/sec
transmission direction single(left→right,right→left)
transmission mode online drive
position mode optical
Air Force 0.5mpa
electrical control independent research and development by ETON
motion control card module 1set independent research and development by ETON
X.Y axis drive way high-end magnetic linear motor+servo motor
feeding way electric feeder with double motor

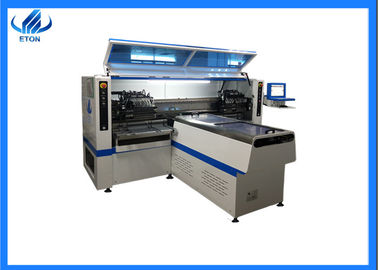

LED Long Strip Light Making Machine HT-T9 Roll to Roll Solution Machine smt mounter high speed pick and place machine 3








3.trade terms of smt mounter machine

Accepted delivery terms EXW, FOB, CIF , CFR
Accepted payment currency USD, CNY
Accepted payment type L/C, T/T
Nearest port Shenzhen


4.Packing & shipping of smt mounter machine


Packaging materials Waterproof material and wooden case
Lead time Delivery within 30 days after receipt of payment..
port Shenzhen
Delivery time Transshipment and partial shipment according to the contract

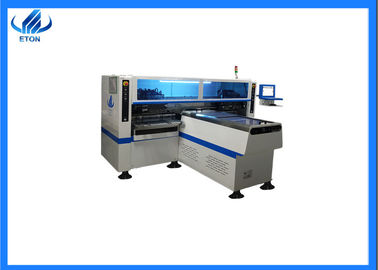

LED Long Strip Light Making Machine HT-T9 Roll to Roll Solution Machine smt mounter high speed pick and place machine 4





5.our services





LED Long Strip Light Making Machine HT-T9 Roll to Roll Solution Machine smt mounter high speed pick and place machine 5

6.Company profile

Shenzhen ETON automation equipment co., LTD., founded in 2011, is a company dedicated to SMT high-speed placement machine research and development, production, sales and after-sale technical services integrated national high and new technology, the double soft enterprise. The company always adhere to the "create national brands, to build international enterprise in China" goals, is committed to providing customers with "professional, efficient, low consumption" fully automatic SMT placement machine.ETON mission: professional, excellent technology, sharing the results.

LED Long Strip Light Making Machine HT-T9 Roll to Roll Solution Machine smt mounter high speed pick and place machine 6





We are a rapidly growing company. We have just completed an industrial park in jiangxi, China, at a cost of 150 million RMB.

We will vigorously explore the overseas market in the future.

We have also cooperated with engineers from Taiwan, Japan and Germany for a long time to jointly develop and improve the technology.













What are you still hesitating about? Come and contact us !

ETON---Quality placement machine equipment supplier !

Your best choice--- high speed mounter HT-f8 !

If you want to buy a mounter, please do not hesitate to choose us!

We will serve you wholeheartedly!
